Product Details:
Payment & Shipping Terms:
|
| Product Name: | 1 - 30 Ton Capacity Building Lifting Tools Chain Block Manual Chain Hoist | Power Source: | Manual |
|---|---|---|---|
| Capacity: | 1 Ton To 30 Ton | Lifting Height: | Standard 3 Meters Or At Your Request |
| Chains: | Blacken Or Galvanized | Feature: | Compact Durable Structure |
| Highlight: | horizontal lifting clamp,horizontal plate clamp |
||

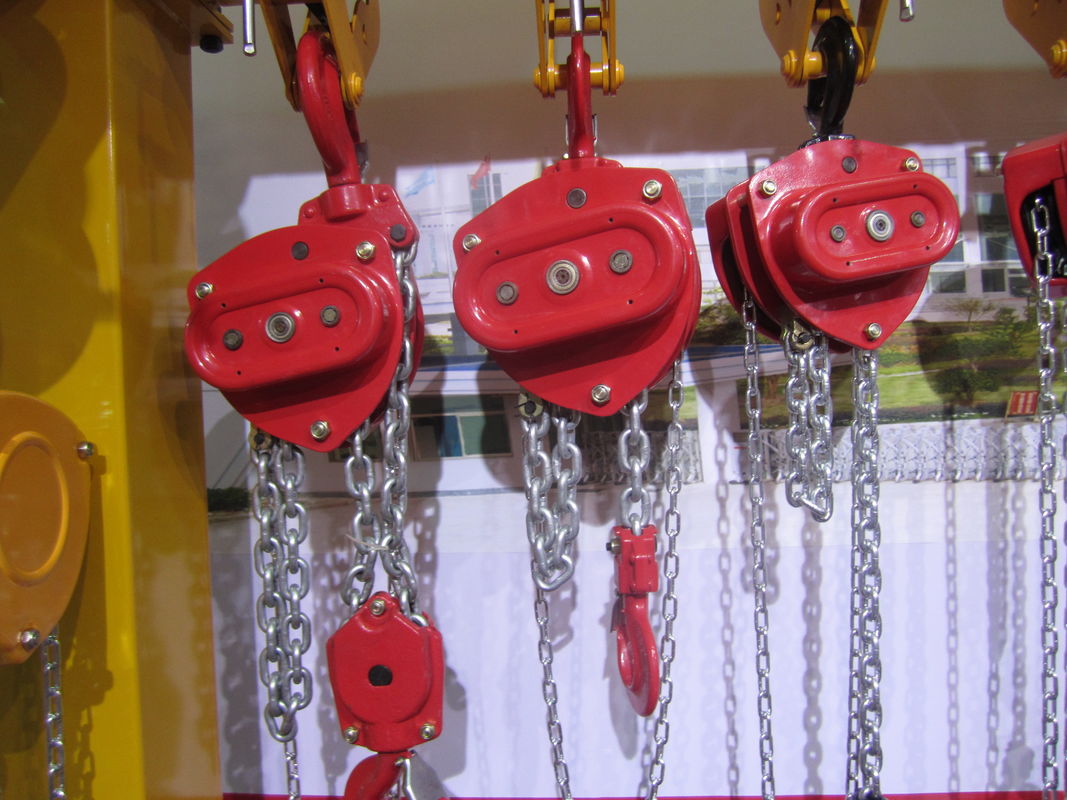

1 - 30 Ton Capacity Building Lifting Tools Chain Block Manual Chain Hoist
Product Application:
Manual chain block is a widely used manual hoisting machine, which is easy to use and carry. It can be used in factory, mine, agriculture, electricity, construction site, wharf and dock. And it can also be used in installing of machinery, lifting goods, loading and unloading in the warehouse, especially suitable for using in the open air and the place without power.
JCYC-CB Chain Block
| Model | Lifting Capacity(t) | Lifting Height(m) | Running Test(t) | No.of Load Chain | Dia.of Load Chain(mm) | Net Weight (kg) | Packing Size(L*W*H)(cm) |
| CB-0.5 | 0.5 | 2.5 | 0.75 | 1 | 5 | 11 | 24*19*18 |
| CB-1 | 1 | 2.5 | 1.5 | 1 | 6 | 12.5 | 28*21*21 |
| CB-1.5 | 1.5 | 2.5 | 2.25 | 1 | 7.1 | 17.8 | 34*26*20 |
| CB-2 | 2 | 3 | 3 | 1 | 8 | 19.5 | 34*26*20 |
| CB-3 | 3 | 3 | 4.5 | 1 | 10 | 29 | 34*26*20 |
| CB-5 | 5 | 3 | 7.5 | 2 | 9 | 41.3 | 41*32*24 |
| CB-10 | 10 | 3 | 15 | 4 | 9 | 78.5 | 48*42*18.5 |
1. Capacity: 1-30 Ton .
2. Standard lifting height: 2.5/3 M .
3. Adopt the international standard,safe and reliable, durable use .
4. High performance, easy maintance .
5. High toughness, small volume, light weight .
6. Small hand pulling, high strength of mechanism .
7. Compact structure, good appearance .
8. Lifting cargo in no power work .
9. OEM is available, can be customized .
