Product Details:
Payment & Shipping Terms:
|
| Product Name: | KCD Type Electric Lifting Winch / Electric Rope Winch 7-14m/min Lifting Speed | Capacity: | 300 Kg To 2000 Kg |
|---|---|---|---|
| Lifting Height: | 0-100 Meters | Net Weight: | 40 To 52 Kg Light Weight |
| Lifting Speed: | 7-14 M/min | Feature: | Multifuction |
| Votalge: | 220v/380v 1/3phase 50/60Hz | ||
| High Light: | electric davit winch,electric pulling winch |
||

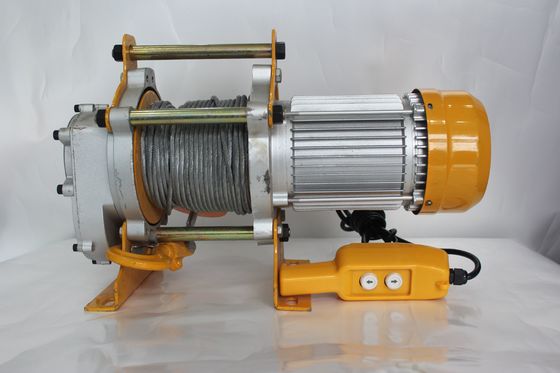

KCD Type Electric Lifting Winch / Electric Rope Winch 7-14m/min Lifting Speed
Product description
KCD type electric lifting winch / electric rope winch 7-14m/min lifting speed is a kind of electric winch, widely used in the construction industry, with the feature of stable and reliable operation, hoisting height is can reach 100 meter.
Applies to industrial enterprise, mining company, normal factory, workshop, railway, sea port, warehouse, stock ground and so on. This KCD winch is for any angle of handing, lifting loading and unloading, it is the common machinery for lifting work in factory and warehouse and individuals.
Adavantages of KCD electric winch
Specifications:
JCYC-KCD Electric winch
| Model | KCD-300~600kg | KCD-500~1000kg | KCD-750~1500kg | KCD-1~2T |
| Capacity | 600kg | 1000kg | 1500kg | 2000kg |
| Lifting speed | 7-14m/min | 6-12m/min 8-16m/min | 8-16m/min | 8-16m/min |
| Power | 0.6KW | 1.5KW | 2.0KW | 3.0KW |
| Motor R.P.M | 1380 | 1380 | 1380 | 1380 |
| Voltage | 380v | 380v | 380v | 380v |
| Lifting height | 60M | 1-100M | 100-150M | 100-200M |
| Wire rope type | 5.0*6*19 | D-6*19-6 | 6*19*7.7 | 6*19*10 |
| Weight | 35kg | 50kg | 60kg | 110kg |
Questions before make quotation:
1. Purpose of the winch, lifting or pulling?
2. Where will you use the winch? construction, mine or marine?
3. Capacity?
4. Rope volume?
5. Requirement for rope speed?
6. Voltage?
7. Any other specific request such as double speed, additional equipment?
The more detail, the more accurate quotation.
Product show
