G209 G210 G2130 G2150 G80 Bow Shackle With High Strength Forged Carbon Steel
  • name
  • name

G209 G210 G2130 G2150 G80 Bow Shackle With High Strength Forged Carbon Steel

MOQ: 500pcs
Price: Negotiable
Standard Packaging: Ply wooden case
Delivery Period: 15 working days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 10000 pcs / week
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
JCYC
Certification
CE/ISO
Model Number
G209
Product Name:
G209 Bow Shackle
Material:
Alloy Steel
Test Working Load:
2 Times
Breaking Load:
4 Times
Magnetic Particle Inspection:
100%
Logo:
As Per Request
Highlight:

grade 80 lifting chain

,

grade 80 alloy chain

Product Description

G209  G 210 G2130 G2150 Bow Shackle With High Strength Forged Carbon Steel



G209 Bow Shackle



High strength forged carbon steel die forging

The test of working load limit is 2 times

Breakage test

100% magnetic particle inspection

Breaking load limit is 4 times

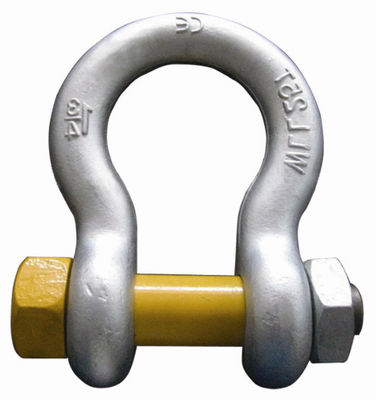

G209 G210 G2130 G2150 G80 Bow Shackle With High Strength Forged Carbon Steel 0

G209 Bow Shackle
WLL. ton A mm B mm C mm D mm E mm F mm G mm
2 20 16 46 12 33 29 58
3.25 27 19 61 16 43 38 75
4.75 32 22 71.5 19 51 46 89
6.5 38 25 84 22 58 53 102
8.5 43 28 95 25.5 68 60.5 119
9.5 48 32 108 29 74 68.5 134
12 50 36 119 32 81 76 145
13.5 55 38 133 35 90 84 160
17 60.5 42 146 38 97 92 173
25 73 50 178 44.5 127 106.5 216
35 83 56 197 51 146 122 248
55 103 70 267 63 181 144.5 307
85 130 80 325 80 210 165 370
120 145 95.5 410 95 215 198 405





Tags:

grade 80 lifting chain,

grade 80 alloy chain
