Product Details:
Payment & Shipping Terms:
|
| Type: | Durable Lifting Chain | Material: | Alloy Steel 20MN2 25MNV |
|---|---|---|---|
| Technology: | Black Oxidation And Hot Dipping | Length: | At Your Request |
| Standard: | International | Grade: | G80 |
| High Light: | grade 80 lifting chain,grade 80 alloy chain |
||
Model Name:

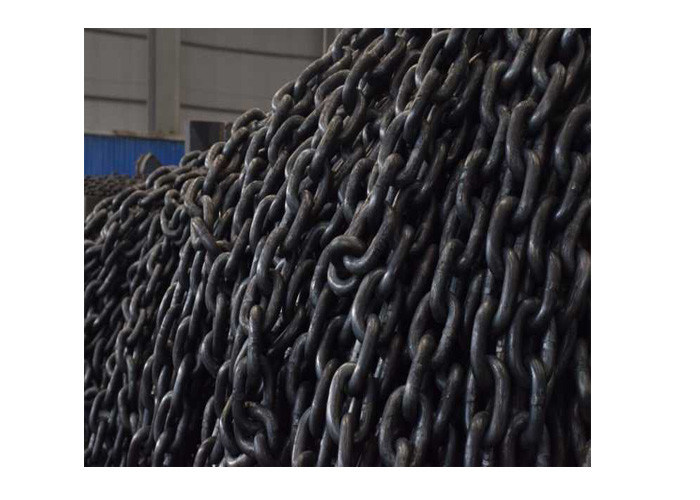

Durable G80 EN818-2 Lifting Anchor Chain Alloy Steel Black Oxidation 20MN2 25MNV Lifting Chain
More Deatils:
Grade: G80
Material: 20MN2 25MNV
Standard: EN818-2
Surface treatment: Black oxidation, zinc plated, self color
Proof test at 2.5 times the working load limit
Ultimate load is 4 times the working load limit
Testing:
1. Material test before production.
2. Random test during production progress.
3. Test finished products before shipment.
4. Test report can be provided.
Before packing, the link chain must be checked by our inspection system. And the lifting chain must be made sure that it could not break when the full load was lifted. If not, that piece chain block would not be passed.
Parameter:
| Diameter(mm) | Inside Length(mm) | Outside width(mm) | Weight(kg/m) | Test load (KN) |
| 6 | 18 | 21 | 0.79 | 27 |
| 8 | 24 | 28 | 1.38 | 48 |
| 10 | 30 | 35 | 2.2 | 76 |
| 12 | 36 | 42.2 | 3.3 | 117 |
| 14 | 42 | 49 | 4.13 | 150 |
| 16 | 48 | 56 | 5.63 | 192 |
| 18 | 54 | 63 | 6.85 | 246 |
| 20 | 60 | 70 | 8.6 | 300 |
| 22 | 66 | 77 | 10.5 | 366 |
hot dipping
Packing
