Product Details:
Payment & Shipping Terms:
|
| Usage: | Lifting Goods | Capacity: | 0.5t-35t |
|---|---|---|---|
| Lifting Height: | As Per Request | Power Supply: | 220-440V，50/60HZ |
| Lifting Speed: | Customized | Color: | Customized |
| Highlight: | stainless steel chain hoist,high speed chain hoist |
||

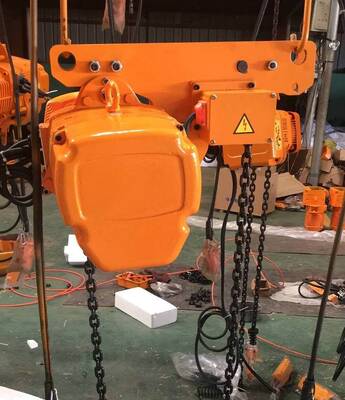

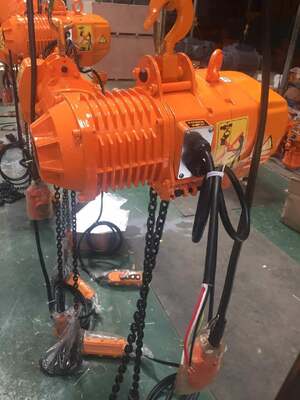

Electric Chain Hoist With Two Hooks For Lifting Goods
SY-A ELECTRIC CHAIN HOIST
SY Series Model SYA Electric Chain Hoist
Usage: Lifting, fixing, binding, traction, etc. Well accepted in various industrial fields.
Features and advantages:
1. The main parts of it adopt high quality steel product to ensure durability.
2. Special specifications and marks can be made according to customers' requirements.
3. Various lifting capacity, meet different needs.
4. The main body can be hanging in the I-beam to move straight or curve, or installed in the fixed bracket for lifting heavy objects.
| Model | Lifting Capacity(t) |
Lifting Height (m) |
Lifting Spee d(m/ min) |
Running Speed (m/min) |
Lifting Motor |
Running Motor |
I-Beam(mm) | ||||
|
Powe r(kw) |
R. P.M(r/min) |
Power Supply |
Power( kw) |
R.P.M (r/min) |
Power Supply | ||||||
| SY-A0.5-1 | 0.5 | 3-9 | 6.8 | 12.2 | 0.75 | 1440 |
220-440V 50/60HZ 3Phase |
0.12 | 1440 | 220-440V 50/60HZ 3Phase | 58-130 |
| SY-A1-1 | 1 | 3-9 | 6.6 | 10/20 | 1.5 | 1440 | 0.4 | 1440 | 80-160 | ||
| SY-A1-2 | 1 | 3-9 | 3.4 | 10/20 | 0.75 | 1440 | 0.4 | 1440 | 80-160 | ||
| SY-A2-1 | 2 | 3-9 | 6.6 | 10/20 | 3.0 | 1440 | 0.4 | 1440 | 82-178 | ||
| SY-A2-2 | 2 | 3-9 | 3.3 | 10/20 | 1.5 | 1440 | 0.4 | 1440 | 82-178 | ||
| SY-A3-1 | 3 | 3-9 | 5.4 | 10/20 | 3.0 | 1440 | 0.4 | 1440 | 100-180 | ||
| SY-A3-2 | 3 | 3-9 | 4.4 | 11/21 | 3.0 | 1440 | 0.4 | 1440 | 100-178 | ||
| SY-A3-3 | 3 | 3-9 | 2.4 | 11/21 | 1.5 | 1440 | 0.4 | 1440 | 110-178 | ||
| SY-A5-2 | 5 | 3-9 | 2.7 | 10/20 | 3.0 | 1440 | 0.75 | 1440 | 110-180 | ||
| SY-A7.5-3 | 7.5 | 3-9 | 1.8 | 10/20 | 3*2 | 1440 | 0.75 | 1440 | 120-180 | ||
| SY-A10-4 | 10 | 3-9 | 2.7 | 10/20 | 3*2 | 1440 | 0.75 | 1440 | 150-202 | ||
| SY-A15-6 | 15 | 3-9 | 1.9 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 | 150-220 | ||
| SY-A20-8 | 20 | 3-9 | 1.4 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 | 150-220 | ||
| SY-A25-8 | 25 | 3-9 | 1.1 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 | 150-220 | ||
| SY-A30-10 | 30 | 3-9 | 0.9 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 | 150-220 | ||
| SY-A35-16 | 35 | 3-9 | 0.7 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 | 150-220 | ||
