Product Details:
Payment & Shipping Terms:
|
| Voltage: | 220 V - 440 V / 50 Hz / 3 Ph | Capacity: | 0.5t-30t |
|---|---|---|---|
| Wire Rope Length: | 30m | Color: | As Per Request |
| Speed: | 9 M/min - 30 M/min | Product Name: | Electric Winches |
| High Light: | electric davit winch,electric pulling winch |
||
Durable Service Electric Wire Rope Hoist Open Winch
JM Series Electric Winches, Gear Reducer Driving
Widely used in hoisting, pull, tow and unloading loads, for example, all kinds of large mechanical equipments' assembly and disassembly.
Suitable for construction and installation engineering of enterprises, mining areas, factories, etc.
Features and advantages:

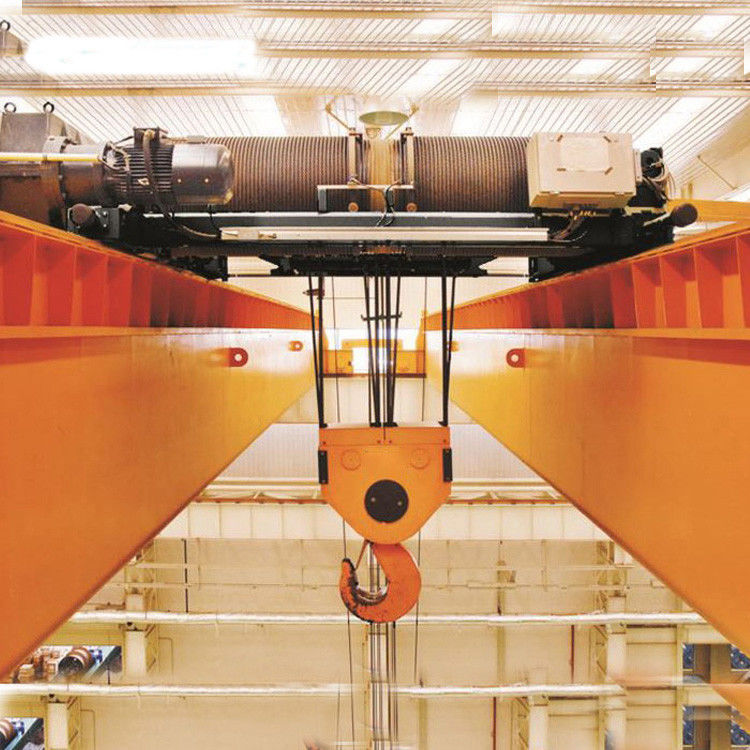

1. Gear reducer transmission type electric winch which widely used in industries such as double beam bridge cranes and gantry cranes, etc.
2. Compact structure, reasonable design, easy installation and start, top quality with economic price.
3. High safety and stability with overload protection, shock protection, explosion-proof performance, etc.
4. Mainly used in pulling or lifting heavy objects in road and bridge projects, civil construction, mining area, factory, port, marine, etc.
5. Adapts to installation and disassembly of all kinds of large or super large size steel structures and machinery equipments, reinforce concrete, drag ships and so on.
6. Orderly wire rope, safe and reliable lifting and normal speed is usually not above 12 m/min.
| Model | Cable rated pull(kg) | Cable rated speed(m/min) | Wire rope (Φmm) | Wire length(m) | Drum(mm) Dia.(Φ) | Motor power(kw) | Weight(kg)without rope | Weight(kg)with rope |
| JMC0.5 | 500 | 16 | 7.7 | 100 | 175.00 | 4.2 | 129.5 | 150 |
| JMC1 | 1000 | 16 | 9.3 | 160 | 218.00 | 5.5 | 170 | 200 |
| JMC1.5 | 1500 | 16 | 11 | 200 | 255.00 | 5.5 | 308.1 | 350 |
| JMC2 | 2000 | 16 | 12.5 | 200 | 275.00 | 7.5 | 446 | 460 |
| JMC3 | 3000 | 16 | 15.5 | 200 | 315.00 | 11 | 517 | 550 |
| JMC5 | 5000 | 9 | 19.5 | 250 | 400.00 | 11 | 1280 | 1437 |
| JMC8 | 8000 | 10 | 26 | 300 | 475.00 | 15 | 2850 | 3201 |
| JMC10 | 10000 | 9 | 30 | 300 | 515.00 | 22 | 3200 | 3667 |
| JMC16 | 16000 | 9 | 36.5 | 400 | 717.00 | 30 | 5200 | 6120 |
| JMC20 | 20000 | 10 | 39 | 450 | 950.00 | 45 | 7500 | 8659 |
| JMC30 | 30000 | 10 | 47.5 | 450 | 1100.00 | 55 | 9200 | 10916 |
