Product Details:
Payment & Shipping Terms:
|

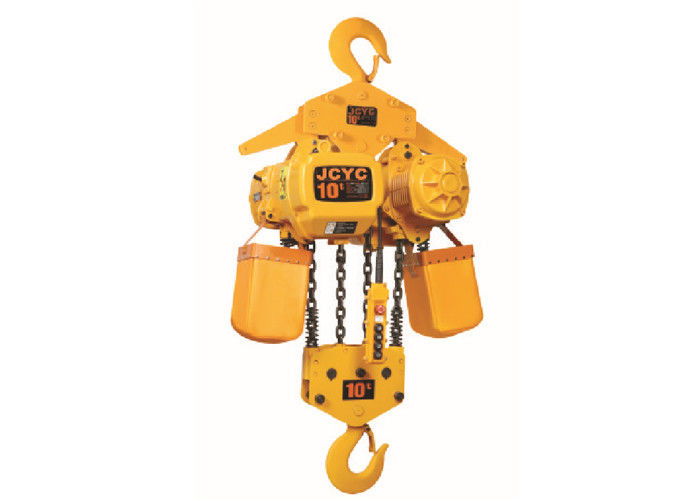

| Model: | Hook Type | Capacity: | 10 Ton |
|---|---|---|---|
| Voltage: | 220 V - 440 V | Color: | As Per Request |
| Load Chain: | 4 | Chain Dia.: | 11.2 Mm |
| Highlight: | stainless steel chain hoist,high speed chain hoist |
||
| Lifting Capacity(t) | Lifting Height(m) | Lifting Speed(m/min) | Lifting Motor | ||
| Power(kw) | R.P.M(r/min) | Power Supply | |||
| 0.5 | 3-9 | 6.8 | 0.75 | 1440 | 220-440V 50/60HZ 3Phase |
| 1 | 3-9 | 6.6 | 1.5 | 1440 | |
| 1 | 3-9 | 3.4 | 0.75 | 1440 | |
| 2 | 3-9 | 6.6 | 3.0 | 1440 | |
| 2 | 3-9 | 3.3 | 1.5 | 1440 | |
| 3 | 3-9 | 5.4 | 3.0 | 1440 | |
| 3 | 3-9 | 4.4 | 3.0 | 1440 | |
| 3 | 3-9 | 2.4 | 1.5 | 1440 | |
| 5 | 3-9 | 2.7 | 3.0 | 1440 | |
| 7.5 | 3-9 | 1.8 | 3*2 | 1440 | |
| 10 | 3-9 | 2.7 | 3*2 | 1440 | |
| 15 | 3-9 | 1.9 | 3*2 | 1440 | |
| 20 | 3-9 | 1.4 | 3*2 | 1440 | |
| 25 | 3-9 | 1.1 | 3*2 | 1440 | |
| 30 | 3-9 | 0.9 | 3*2 | 1440 | |
| 35 | 3-9 | 0.7 | 3*2 | 1440 | |
