Product Details:
Payment & Shipping Terms:
|
Span: | Optional | Lifting Height: | Optional |
---|---|---|---|
Capacity: | Optional | Color: | Customized |
Mini Motor Power: | 0.3.kw/2 | Application: | Single Girder Cranes |
High Light: | crane carriage,end carriage of crane |

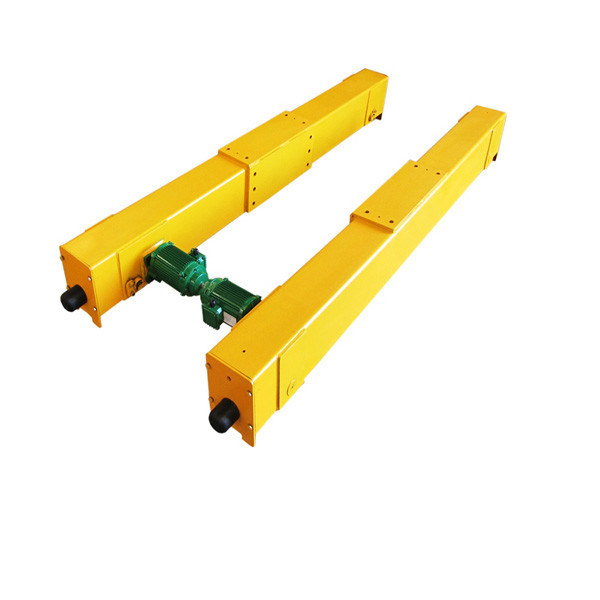

Single Girder Top Running End Carriage for Various Suspension and Bridge Cranes
Main Features:
End carriage use rectangular tube manufacturing module, buffer motor drive, with forged wheels, using CNC boring and milling of various customized machine, disposable completes the openning, boring, milling drilling. You only need to joint crane girder and the end carriage corrected, the high cost, so that your crane manufacturing, installation and maintenance is very easy.
Product Datasheet:
Model | Crane | Rectangular Steel tube |
Wheel Size | Motor power | S1 (mm) |
S2 (mm) |
W1 (mm) |
W2 (mm) |
GL125-15 | 1t-7.5m | 150*150*6 | W125*60 | 0.3KW*2 | 1500 | 1300 | 400 | 500 |
GL125-20 | 1t-11.5m | 2000 | 1800 | 400 | 500 | |||
GL125-25 | 1t-16.5m | 2500 | 2300 | 400 | 500 | |||
GL160-15 | 2t/3t-7.5m | 150*200*8 | W160*70 | 0.4KW*2 | 1500 | 1200 | 400 | 500 |
GL160-20 | 2t/3t-11.5m | 2000 | 1700 | 400 | 500 | |||
GL160-25 | 2t/3t-16.5m | 2500 | 2200 | 400 | 500 | |||
GL160-30 | 2t/3t-22.5m | 3000 | 2700 | 500 | 600 | |||
GL160-35 | 2t/3t-28.5m | 3500 | 3200 | 600 | 700 | |||
GL200-20 | 5t-11.5m | 150*250*8 | W200*70 | 0.4KW*2 | 2000 | 1700 | 400 | 500 |
GL200-25 | 5t-16.5m | 2500 | 2200 | 400 | 500 | |||
GL200-30 | 5t-22.5m | 0.75KW*2 | 3000 | 2700 | 500 | 600 | ||
GL200-35 | 5t-28.5m | 3500 | 3200 | 600 | 700 | |||
GL250-20 | 10t-11.5m | 200*250*8 | W250*80 | 0.75KW*2 | 2000 | 1600 | 400 | 500 |
GL250-25A | 10t-16.5m | 2500 | 2100 | 500 | 600 | |||
GL250-30A | 10t-22.5m | 1.1KW*2 | 3000 | 2600 | 500 | 600 | ||
GL250-35A | 10t-28.5m | 3500 | 3100 | 700 | 800 | |||
GL250-25B | 16t-16.5m | 200*300*8 | W250*80 | 1.1KW*2 | 2500 | 2100 | 600 | 700 |
GL250-30B | 16t-22.5m | 3000 | 2600 | 700 | 800 | |||
GL250-35B | 16t-28.5m | 1.5KW*2 | 3500 | 3100 | 700 | 800 | ||
GL315-30 | 20t-16.5m | 200*400*8 | W315*90 | 1.5KW*2 | 3000 | 2500 | 700 | 800 |
GL315-35 | 20t-22.5m | 3500 | 3000 | 700 | 800 |
Product Show:
