1 / 3phases Mini Electric Chain Fall Hoist For Construction Light Weight

1 / 3phases Mini Electric Chain Fall Hoist For Construction Light Weight
1 / 3phases Mini Electric Chain Fall Hoist For Construction Light Weight

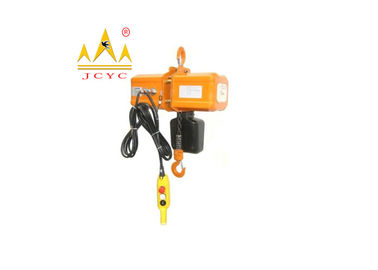

Large Image :  1 / 3phases Mini Electric Chain Fall Hoist For Construction Light Weight

Product Details:
Place of Origin: China
Brand Name: JCYC
Certification: CE,ISO
Model Number: SY-C
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: standard export package
Delivery Time: about 12 workdays if no store
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5500 units per month
Detailed Product Description
Capcity: 0.5t-5t Standard Height: 3m
Speed: Single Speed Or Double Speeds Phase: 1 Phase Or 3 Phases
Usage: Industry, Port, Construction, Etc Color: Yellow Or Alternative Color
High Light:

mini chain hoist

,

stainless steel chain hoist

Product Description:

Single Speed or Dual Speeds 1phase or 3phases Electric Chain Hoist With Alternative Color Mini Chain Hoist



Usage:

Widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.



Features and advantages:

1. Light weight and robust construction.

2. Super-quick adjustment to any monorail.

3. Durable baked enamel paint protection.

4. High performance hoist delivers exceptional reliability in even the most demanding applications.

5. Protect loads and production machinery from unnecessary contact and damage.

6. Specified by the military because all critical welds are magnetic particle inspected.

7. Top-quality components and design features



Photo:

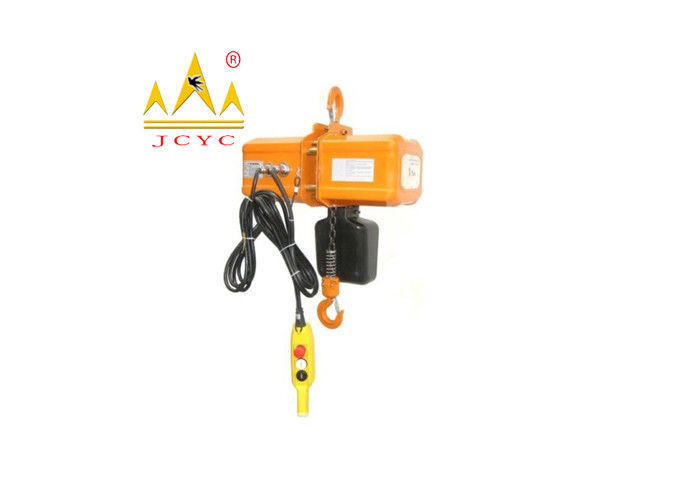

1 / 3phases Mini Electric Chain Fall Hoist For Construction Light Weight 0

Parameter:

3 Phases, 380V, 50HZ (Single Speed)
Model

Capacity

(t)

Standard Lifting Height

(m)

Running Test Load

(kn)

Motor Power

(kw)

No. of Chains

Dia. Of Chains

(mm)

Lifting Speed

(m/min)

N.W.

(kg)

Extra Weight Per Meter of Extra Lift

(kg)

SY-C05 0.5 3 6.25 0.8 1 7.1 7 50 1.1
SY-C10 1 12.5 1.6 1 7.1 7 55 1.1
SY-C20 2 25 1.6 2 7.1 3.5 60 2.2
SY-C30 3 37.5 1.6 3 7.1 2.3 65 3.3
SY-C30S 3 37.5 3.0 2 9 4 78 3.5
SY-C50 5 62.5 3.0 3 9 2.6 85 5.3



3 Phases, 380V, 50HZ (Double Speeds)
Model

Capacity

(t)

Standard Lifting Height

(m)

Running Test Load

(kn)

Motor Power

(kw)

No. of Chains

Dia. Of Chains

(mm)

Lifting Speed

(m/min)

N.W.

(kg)

Extra Weight Per Meter of Extra Lift

(kg)

SY-C05 0.5 3 6.25 0.4/1.2 1 7.1 2.3/7 5.3 1.1
SY-C10 1 12.5 0.4/1.2 1 7.1 2/6 5.5 1.1
SY-C20 2 25 0.4/1.2 2 7.1 1/3 63 2.2
SY-C30 3 37.5 0.4/1.2 3 7.1 0.7/2 68 3.3




Model

Capacity

(t)

Standard Lifting Height

(m)

Running Test Load

(kn)

Motor Power

(kw)

No. of Chains

Dia. Of Chains

(mm)

Lifting Speed

(m/min)

N.W.

(kg)

Extra Weight Per Meter of Extra Lift

(kg)

SY-C05 0.5 3 6.25 0.8 1 7.1 7 55 1.1
SY-C10 1 12.5 1.2 1 7.1 6 60 1.1
SY-C20 2 25 1.2 2 7.1 3 65 2.2
SY-C30 3 37.5 1.2 3 7.1 2 73 3.3



Warm Note:

OEM, ODM, sample, trial and mixed orders are all welcomed to test our quality and service.
