Product Details:
Payment & Shipping Terms:
|
| Product Name: | Chain Block | Color: | Customized |
|---|---|---|---|
| Standard Lift Height: | 3M | Capacity: | 0.5t-50t |
| Chain: | G80 | No. Of Load Chain: | 1 - 22 |
| High Light: | steel lifting clamps,horizontal lifting clamp |
||

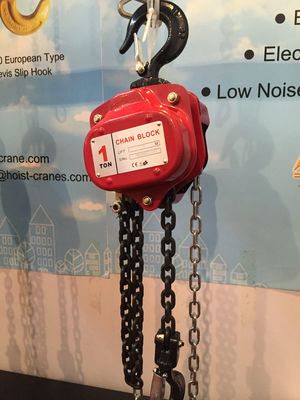

Chain Block Up To 5 ton And Two Load Chain Guide Wheels with different color
VT Chain Block
| Model | Lifting Capacity (t) | Lifting Height(m) | Running Test(t) | No.of Load Chain | Dia.of Load Chain(mm) | Net Weight(kg) | Packing Size(L*W*H)(cm) |
| A-0.5 | 0.5 | 2.5 | 0.5 | 1 | 5 | 8.4 | 22*14*15 |
| A-1 | 1 | 2.5 | 1 | 1 | 6.3 | 12 | 25*19*16 |
| A-1.5 | 1.5 | 2.5 | 1.5 | 1 | 7.1 | 16.2 | 33*24*16 |
| A-2 | 2 | 3 | 2 | 1 | 8 | 20 | 33*24*19 |
| A-3 | 3 | 3 | 3 | 2 | 7.1 | 24 | 34.5*24*16 |
| A-5 | 5 | 3 | 5 | 2 | 9 | 41 | 40*30*19 |
| A-10 | 10 | 3 | 10 | 4 | 9 | 79 | 48*42*18.5 |
| A-15 | 15 | 3 | 15 | 6 | 9 | 120 | 69*56*20 |
| A-20 | 20 | 3 | 20 | 8 | 9 | 193 | 78*68*20 |
| A-30 | 30 | 3 | 30 | 12 | 9 | 220 | 85*67*30 |
| A-50 | 50 | 3 | 50 | 22 | 9 | 1092 | 110*100*130 |
