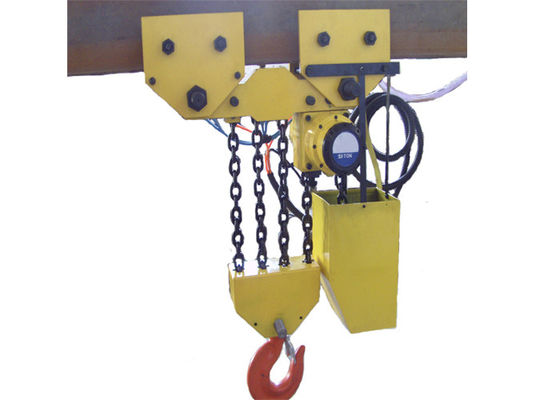

10 tons Explosion Proof Chain Hoist High Efficient ISO9001 Certification
  • name

10 tons Explosion Proof Chain Hoist High Efficient ISO9001 Certification

MOQ: 1 piece
Price: negotiable
Standard Packaging: Plywood Case
Delivery Period: 8-15 work day
Payment Method: Western Union, L/C, T/T
Supply Capacity: 500pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC / OEM
Certification
CE ISO9001 Manufacturing licence
Model Number
QDH
Capacity:
10 Tons
Special Color:
Alternative
Color:
Normal Yellow
Motor:
Air, Pneumatic
Material:
Alloy Steel Chain
Function:
Air Power Hoist
Highlight:

explosion proof electric hoist

,

explosion proof wire rope hoist

Product Description

10 tons Explosion Proof Chain Hoist High Efficient ISO9001 Certification





I. Profile

1.1, Pneumatic hoist is the most optimum lifting device in the world. It has been widely used in industrially developed countries, for it takes the following advantages over motor hoists.

First, the pneumatic hoist cannot generate electric spark, so it completely solves the anti-explosive problem.
Explosion-proof grade: Ⅰ Hazardous area, including ⅡC, Group T5 and below.

Second, the pneumatic hoist uses the 100% work system, so as to make the required conditions for high-efficient continuous jobs.

Third, the pneumatic hoist sees a fast operating speed which is 2-3 times more than the motor hoist, and the former can present non polar variable speed.

Fourth, the pneumatic hoist features endurance on acid, alkaline, steam and high-powder dust.

Fifth, the pneumatic hoist has small size and easily operation. It is only 1/3~1/8 of the weight of a motor hoist whose specification is same.

1.2, Based on the abovementioned characteristics, the pneumatic hoist is widely used in the areas of petroleum, chemical industry, coal, textile, machinery production, ship and aship and ammunition.

2. Parameter

2.1, Inlet diameter (Hoist): Φ12, Φ 16, Φ22, Φ25, Φ32



2.2, Inlet diameter (Trolley):Φ8, Φ10, Φ12, Φ13, Φ16



2.3, Hose diameter based on the capacity and travelling length



2.4, Parameter table:

Model Capacity (t) Lifting Height(m) Max Lifting Speed (m/min) Max Lowering Speed (m/min) Working Pressure MPa Air Consumption M3/min
QDH 0.1D 0.1 0-20 9 12 0.6 0.8
QDH 0.2S 0.2 5 10 0.8
QDH 0.25D 0.25 10 14 1
QDH 0.5S 0.5 5 7 1
QDH 0.5D 0.5 7.5 12 1.2
QDH 1.0S 1 4 7 1.2
QDH 1.0D 1 4.8 8 1.4
QDH 2.0S 2 2.4 4 1.4
QDH 2.5D 2.5 1.8 3.5 1.8
QDH 3.0S 3 1.7 3.5 2.2
QDH 3.0D 3 1.7 2.7 1.6
QDH 5.0S 5 0.75 1.5 2.5
QDH 6.0S 6 0.75 1.3 2.5
QDH 5.0D 5 1.6 2.5 3.4
QDH 6.0D 6 1.4 2.7 3.4
QDH 10.0-4D 10 0.35 0.8 2.9
QDH 10.0S 10 0.8 1.25 3.4
QDH 12.5S 12.5 0.7 1.35 3.4
QDH 10.0D 10 1.2 2.1 4.7
QDH 12.5D 12.5 1 2 4.7
QDH 16.0-3D 16 0.5 1 3.4
QDH 20.0S 20 0.6 1.2 4.7
QDH 25.0-4D 25 0.35 0.7 3.4
QDH 25.0S 25 0.5 1 4.7
QDH 32.0-3D 32 0.4 0.9 3.4
QDH 50.0-4D 50 0.25 0.5 4.7
