320 Kg Explosion-Proof Pneumatic Balance Hoist With Variable Speed Control

Products

320 Kg Explosion-Proof Pneumatic Balance Hoist With Variable Speed Control

MOQ:	1 piece
Price:	599 USD
Standard Packaging:	Standard Export Package
Delivery Period:	around 12 workdays
Payment Method:	L/C,T/T,Western Union
Supply Capacity:	5000 per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

JCYC, OEM

Certification

CE, ISO

Model Number

Product Name:

Pneumatic Balance Hoist

Warranty:

1 Year

Power Source:

Pneumatic

Usage:

Construction Hoist

Sling Type:

Wire Rope

Capacity:

320kg

Lifting Height:

Lifting Speed:

20-60 M/min

Highlight:

horizontal lifting clamp

steel lifting clamps

Product Description

320 Kg Explosion-Proof Pneumatic Balance Hoist With Variable Speed Control

Pneumatic Balance Hoist - The Ideal Material Handling Solution

A pneumatic balance hoist is an air-powered assisted lifting device. It uses compressed air as the power source and balances the load's weight with the air pressure inside the cylinder through a transmission mechanism, enabling smooth lifting and lowering of heavy objects with minimal operator effort.

Advantages Compared with Electric Chain Hoists

High lifting and lowering speed: The lifting and descending speed is typically 2-6 times faster than that of electric hoists.
Floating function for precise positioning: Allows easy and accurate load positioning, making fine adjustments effortless.
Extremely high duty cycle: Designed for continuous 24-hour operation without overheating.
Safer air-powered operation: Uses compressed air as the power source, ensuring spark-free operation and higher safety, especially in hazardous environments.
Smooth and stepless speed control: Driven by a screw transmission system, providing smooth, vibration-free lifting and lowering with infinitely variable speed control.

Technical Specifications

Items	Unit	0-60 kg	100 kg	160 kg	220 kg	320 kg
Capacity	kg	0-60	100	160	220	320
SWL	m	1.4	1.8	2.3	1.9	1
Number of Wire Rope	pc	1	1	1	1	1
Working Medium	Compressed Air
Working Pressure	mpa	0.63	0.63	0.63	0.63	0.63
Air Consumption	M3/min	0.18	0.21	0.21	0.25	0.3
Hose Fitting Thread	in	PT 3/8	PT 3/8	PT 3/8	PT 3/8	PT 3/8
Hose Dia.	mm	10	10	12	12	12
N.W	kg	21	27	47	52	65
Speed Range	Rated Load Speed UP	m/min	60	35	25	20	15
Speed Range	No load Speed Down	m/min	21	23	25	27	28

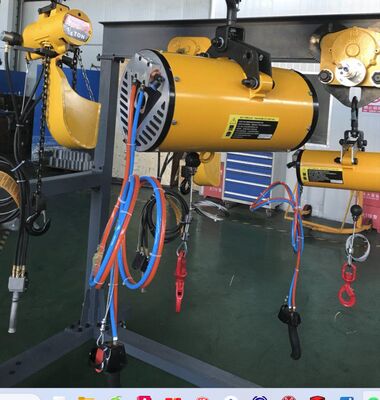

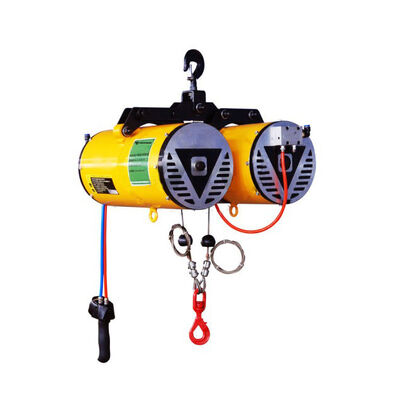

Product Images
