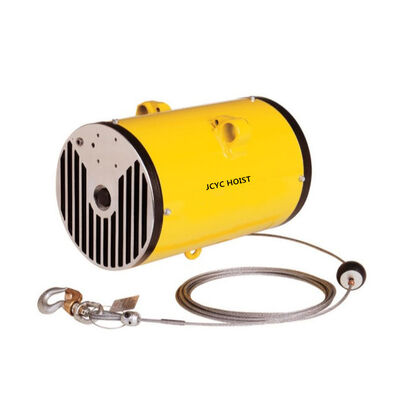

160 Kg Explosion Proof Air Balancer for fast pick-and-place operations
  • name
  • name
  • name
  • name
  • name
  • name

160 Kg Explosion Proof Air Balancer for fast pick-and-place operations

MOQ: 2 pcs
Price: Negotiable
Standard Packaging: Wooden
Delivery Period: 15 working days
Payment Method: L/C,T/T,Western Union
Supply Capacity: 50 pcs / week
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
JCYC
Certification
CE
Model Number
GTB
Product:
Air Balancer
Warranty:
12 Months
Power Source:
Pneumatic
Usage:
Construction Hoist
Sling Type:
Wire Rope
Lift Speed:
20m/min
Condition:
New
Maximum Lifting Weight:
320kg
Maximum Lifting Height:
2.8m
Highlight:

160 kg explosion proof air balancer

,

explosion proof chain hoist for pick-and-place

,

heavy-duty air balancer with explosion protection

Product Description
160 Kg Explosion Proof Air Balancer for Fast Pick-and-Place Operations
Product Overview

160 Kg Explosion-Proof Pneumatic Balance Hoist - The Ideal Material Handling Solution

A pneumatic balance hoist is an air-powered assisted lifting device. It uses compressed air as the power source and balances the load's weight with the air pressure inside the cylinder through a transmission mechanism, enabling smooth lifting and lowering of heavy objects with minimal operator effort.

Advantages Compared with Electric Chain Hoists
  • High lifting and lowering speed: The lifting and descending speed is typically 2-6 times faster than that of electric hoists.
  • Floating function for precise positioning: Allows easy and accurate load positioning, making fine adjustments effortless.
  • Extremely high duty cycle: Designed for continuous 24-hour operation without overheating.
  • Safer air-powered operation: Uses compressed air as the power source, ensuring spark-free operation and higher safety, especially in hazardous environments.
  • Smooth and stepless speed control: Driven by a screw transmission system, providing smooth, vibration-free lifting and lowering with infinitely variable speed control.
Technical Specifications
Items Unit 0-60 kg 100 kg 160 kg 220 kg 320 kg
Capacity kg 0-60 100 160 220 320
SWL m 1.4 1.8 2.3 1.9 1
Number of Wire Rope pc 1 1 1 1 1
Working Medium Compressed Air
Working Pressure mpa 0.63 0.63 0.63 0.63 0.63
Air Consumption M3/min 0.18 0.21 0.21 0.25 0.3
Hose Fitting Thread in PT 3/8 PT 3/8 PT 3/8 PT 3/8 PT 3/8
Hose Dia. mm 10 10 12 12 12
N.W kg 21 27 47 52 65
Speed Range Rated Load Speed UP m/min 60 35 25 20 15
No load Speed Down m/min 21 23 25 27 28
Product Images
320 Kg Explosion-Proof Pneumatic Balance Hoist front view
320 Kg Explosion-Proof Pneumatic Balance Hoist front view
Pneumatic Balance Hoist side view showing construction
Pneumatic Balance Hoist side view showing construction
Close-up of pneumatic hoist control mechanism
Close-up of pneumatic hoist control mechanism
Pneumatic Balance Hoist operational diagram
Pneumatic Balance Hoist operational diagram
Manufacturer Profile
Electric Hoist Crane Company Profile and manufacturing capabilities
Electric Hoist Crane Company Profile and manufacturing capabilities
Industry Exhibitions & Global Presence
Manufacturer exhibition booth at industry trade show
Manufacturer exhibition booth at industry trade show
Manufacturer trade show participation and product demonstration
Manufacturer trade show participation and product demonstration
