Product: | YCT Horizontal Lifting Clamps | Model: | European Model |
---|---|---|---|
Type: | Horizontal Clamp | Content: | Includes Two-legged Chain System |
Max. Capacity: | 6,000 Kg/pair | Min. Capacity: | 2,000 Kg/pair |
High Light: | horizontal plate clamp,steel lifting clamps |
1. Product Profile:

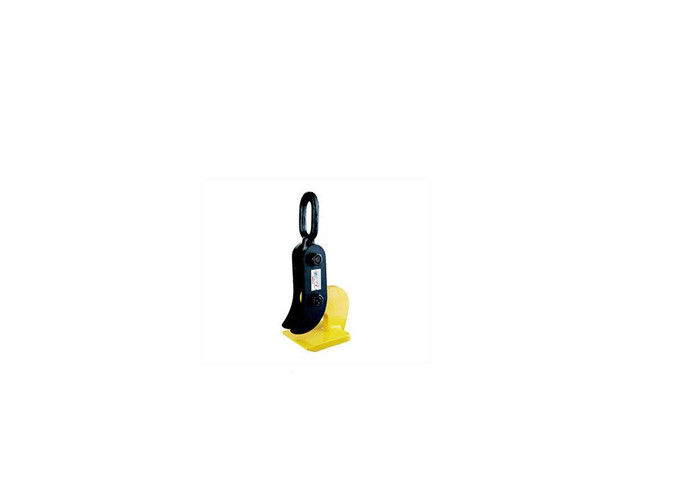

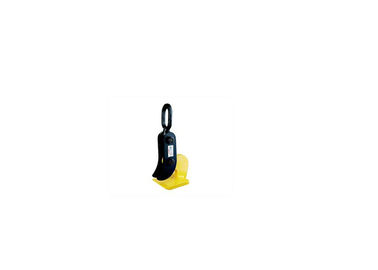

YCT Horizontal Lifting Clamps, European Model
2. Features and advantages:
2.1. European model lifting clamp.
2.2. Consists of two clamps with a two-legged chain system.
2.3. Especially suitable for transporting of single plate or plate bundles with a minimum thickness of approx.5mm.
2.4. The two-legged lifting clamps are in conjunction with a spreader or a spreader beam.
2.5. Suitable to plated upto 1,500mm width with a top angle of chain upto 90 max. in lifting clamp's standard version.
2.6. Widths or longer chains for larger plate are available upon requests.
2.7. Available to use only one clamp.
2.8. The working load limit (WLL) applies to a pair of lifting clamps.
3. Parameter:
Model | Working Load(kg/Pair) | Test Load(kg/Pair) | Opening Size(mm) | N.W(kg) |
YCT-2 | 2,000 | 4,000 | 5-32 | 8.5 |
YCT-4 | 4,000 | 8,000 | 5-50 | 15.5 |
YCT-6 | 6,000 | 12,000 | 5-75 | 34.5 |
