G80 Europe Type Master Link Assembly Forged Main Link and Welded Sub Link Up To 63 ton
  • name
  • name

G80 Europe Type Master Link Assembly Forged Main Link and Welded Sub Link Up To 63 ton

MOQ: 100 PCS
Price: Negotiable
Standard Packaging: Carton
Delivery Period: 30 working days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 2000 pcs / week
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
JCYC
Certification
CE
Model Number
ETML
Material:
Alloy Steel
Color:
Red
Max. Cap.:
63 Ton
Min. Cap.:
2.36 Ton
Safety Factor:
4:1
Product:
G80 Europe Type Master Link Assembly
Highlight:

horizontal lifting clamp

,

horizontal plate clamp

Product Description

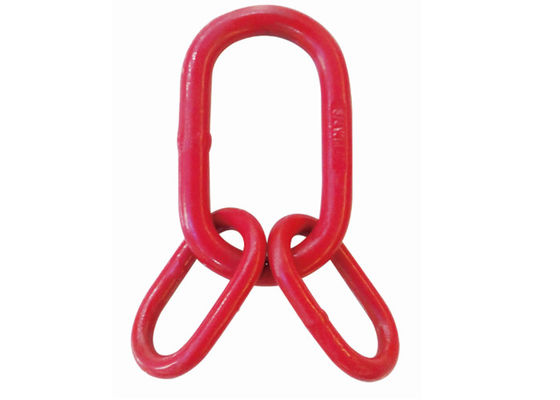

G80 Europe Type Master Link Assembly




G80 Europe Type Master Link Assembly Forged Main Link and Welded Sub Link Up To 63 ton 0G80 Europe Type Master Link Assembly Forged Main Link and Welded Sub Link Up To 63 ton 1

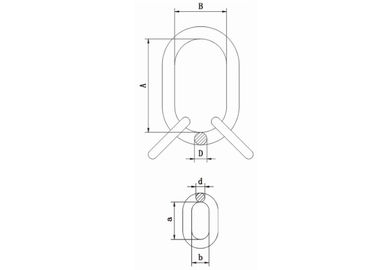

Weight kg WLL ton Dimension mm
A B D a b d
1.18 2.36 135 75 18 54 25 13
1.24 3.15 135 75 18 60 38 13
2.2 4.25 160 90 22 70 34 16
3.4 6.7 180 100 26 85 40 18
6.1 11.2 200 110 32 115 50 22
9.98 17 260 140 36 140 65 26
18.9 21.2 340 180 45 180 100 32
22.6 26.5 350 190 50 180 100 32
25.2 31.5 350 190 50 180 100 36
35.2 45 400 200 56 180 100 40
47 50 430 220 63 180 100 45
66.46 63 460 250 72 200 110 50
Tags:

horizontal lifting clamp,

steel lifting clamps,

horizontal plate clamp
