Product Details:
Payment & Shipping Terms:
|
| Model: | JBC | Type: | JBC Beam Lifting Crane Hoisting |
|---|---|---|---|
| Warranty: | 12 Months | Beam Width: | Adjustable |
| Capacity: | 1,000kg - 10,000kg | Weight: | 3.5kg - 16kg |
| High Light: | horizontal plate clamp,steel lifting clamps |
||
1. Product Profile:

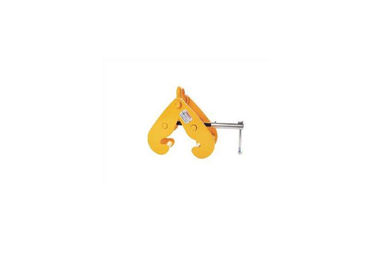

High Quality JBC Beam Lifting Crane Hoisting, Beam Clamps
2. Features and Advantages:
2.1. Durability.
2.2. Robust construction for increased durability and longer life in demanding industrial environments.
2.3. Welded, enclosed pockets provide greater stability and longer life in demanding industrial environments.
2.4. Larger, thicker diameter pins for increased durability and life.
2.5. Welded all-steel frame and powder coat finish provide maximum durability and protection.
2.6. Wide adaptation.
2.7. Excellent performance.
2.8. 1 year warranty
2.9. Sample, OEM & ODM orders are all welcomed.
3. Parameter:
| Model | Capacity(kg) | Adjustable Beam Width | A | B | C | D | E | F | G | Weight(kg) | ||
| Max. | Min. | Max. | Min. | Max. | ||||||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |||
| SYJBC-1A | 1,000 | 75-245 | 270 | 183 | 375 | 66 | 4 | 210 | 102 | 165 | 25 | 3.5 |
| SYJBC-2A | 2,000 | 75-245 | 270 | 183 | 375 | 74 | 6 | 210 | 102 | 165 | 25 | 4.5 |
| SYJBC-3A | 3,000 | 70-355 | 365 | 240 | 520 | 103 | 8 | 258 | 135 | 225 | 45 | 9.5 |
| SYJBC-5A | 5,000 | 70-355 | 365 | 240 | 520 | 111 | 10 | 258 | 135 | 225 | 45 | 11 |
| SYJBC-10A | 10,000 | 80-350 | 365 | 250 | 520 | 120 | 12 | 280 | 160 | 230 | 50 | 16 |
