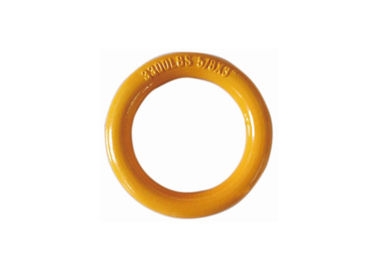

G80 Forged Round Ring 1.1 ton - 20 ton Quenched And Tempered Construction

G80 Forged Round Ring 1.1 ton - 20 ton Quenched And Tempered Construction
G80 Forged Round Ring 1.1 ton - 20 ton Quenched And Tempered Construction G80 Forged Round Ring 1.1 ton - 20 ton Quenched And Tempered Construction

Large Image :  G80 Forged Round Ring 1.1 ton - 20 ton Quenched And Tempered Construction

Product Details:
Place of Origin: CHINA
Brand Name: JCYC
Certification: CE
Model Number: FRR
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: Carton
Delivery Time: 30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs / week
Contact Now
Detailed Product Description
Material: G80 Forged Round Ring Color: Yellow
Max. Cap.: 20 Ton Min. Cap.: 1.1 Ton
Grade: G80 Breaking Load Ton: 4.4 Ton - 80 Ton
High Light:

horizontal lifting clamp

,

steel lifting clamps

G80 Forged Round Ring




G80 Forged Round Ring 1.1 ton - 20 ton Quenched And Tempered Construction 0G80 Forged Round Ring 1.1 ton - 20 ton Quenched And Tempered Construction 1

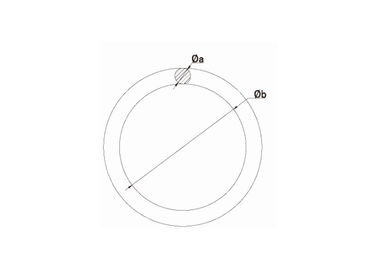

WLL ton Breaking Load ton Φa mm Φb mm Weight kg
1.1 4.4 12.7 50 0.2
1.5 6 15.9 76 0.45
2.2 8.8 19 76 0.7
2.5 10 19 102 0.8
3.2 12.8 22.2 102 1.2
4.5 18 25.4 102 1.6
6.5 26 28.6 152.4 2.8
9 36 31.8 152.4 3.5
9 36 31.8 203.2 4.5
9 36 31.8 254 5.5
10 40 38.1 152.4 5
10 40 38.1 203.2 6.5
10 40 38.1 254 7.9
16 72 44.5 228.6 10.3
20 80 50.8 342.9 19.4

Tag:

horizontal lifting clamp,

steel lifting clamps,

horizontal plate clamp
