MOQ:	100 PCS
Price:	Negotiable
Standard Packaging:	Carton
Delivery Period:	30 working days
Payment Method:	L/C, T/T, Western Union
Supply Capacity:	2000 pcs / week

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

JCYC

Certification

Model Number

EML

Material:

High Strength Alloy Steel

Color:

Yellow

Max. Cap.:

85.46 Ton

Min. Cap.:

1 Ton

Application:

G80 Chain

Test Working Load Limite:

2.5 Times

Highlight:

horizontal lifting clamp

steel lifting clamps

Product Description

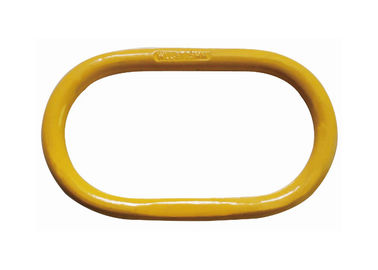

G80 Europe Type Master Link

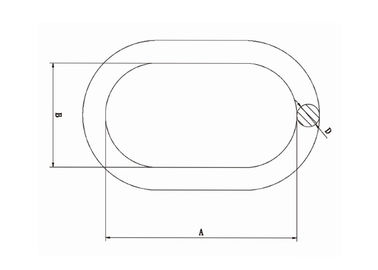

WLL ton	G80 EN818-2 CHAIN		Weight kg/pcs	Dimension mm
WLL ton	1 LEG	2 LEGS	Weight kg/pcs	A	B	D
1.6	7	6	0.34	110	60	13
2.12	8	7	0.54	110	60	16
3.15	10	8	0.82	135	75	18
5.3	13	10	1.5	160	90	22
8	16	13	2.3	180	100	26
11.2	18	16	3.95	200	110	32
14	20	18	6.34	260	140	36
17	22	20	8.96	300	160	40
21.2	26	22	12.8	340	180	45
31.5	32	26	16.55	350	190	50
45	36	32	23.28	400	200	56
56	40	36	32	430	220	63
63	45	40	45.76	460	250	72
85.46	-	45	62	500	270	80
