Name: D Shackles Lifting Tools With Electric Galvanized Surface Finish Up To 120 ton
Brand: Chongqing Shanyan Crane Machinery Co., Ltd.
SKU: G210
Availability: InStock

MOQ:	100 PCS
Price:	Negotiable
Standard Packaging:	Carton
Delivery Period:	30 working days
Payment Method:	L/C, T/T, Western Union
Supply Capacity:	10000 pcs / week

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

JCYC

Certification

Model Number

G210

Product:

D-Shackle

Lifting Cap.:

Up To 120 Ton

Material:

Forged Carbon Steel

Application:

Chain Sling

Surface Finish Surface Finish:

Electric Galvanized

Grade:

Grade 80

Highlight:

horizontal lifting clamp

horizontal plate clamp

Product Description

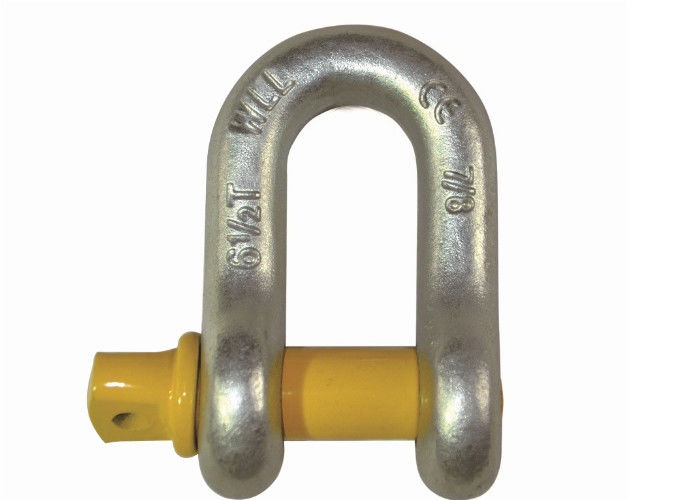

G210 D Shackle

High strength forged carbon steel die forging

The test of working load limit is 2 times

Breakage test

100% magnetic particle inspection

Breaking load limit is 4 times

D Shackles Lifting Tools With Electric Galvanized Surface Finish Up To 120 ton 0

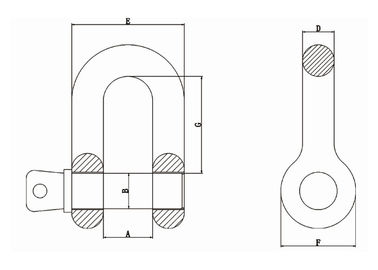

G210 D Shackle
WLL. ton	A mm	B mm	D mm	E mm	F mm	G mm
2	20	16	12	46	29	42
3.25	27	19	16	59	38	51
4.75	33	22	18.5	70	46	60.5
6.5	37	25	22.5	82	53	71.5
8.5	43	28	24.5	92	60.5	81
9.5	48	32	29	106	68.5	91
12	50	36	32	114	76	100
13.5	55	38	35	125	84	111
17	60.5	42	38	136.5	92	122
25	73	50	44	161	106.5	146
35	83	56	51	185	122	171.5
55	103	70	63	229	144.5	203
85	128	80	80	278	165	240
120	135	95.5	95	425	200	280
