| Product: | G2130 Bow Shackle | Max. Cap: | 120 Ton |
|---|---|---|---|
| Min Cap: | 1 Ton | Material: | High Strength Forged Carbon Steel Die Forging |
| Test Working Load Limit: | 2 Times | Breaking Load Limit: | 4 Times |
| High Light: | horizontal lifting clamp,horizontal plate clamp |
||
Bow Shackle 4 Times Breaking Load With High Strength Forged Carbon Steel Die Forging 2 ton - 120 ton

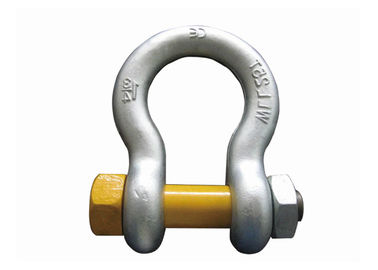

G2130Bow Shackle
High strength forged carbon steel die forging
The test of working load limit is 2 times
Breakage test
100% magnetic particle inspection
Breaking load limit is 4 times

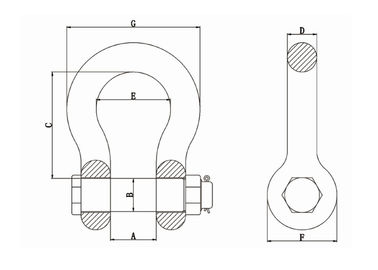

| G2130 Bow Shackle | |||||||
| WLL. ton | A mm | B mm | C mm | D mm | E mm | F mm | G mm |
| 2 | 20 | 16 | 46 | 12 | 33 | 29 | 58 |
| 3.25 | 27 | 19 | 61 | 16 | 43 | 38 | 75 |
| 4.75 | 32 | 22 | 71.5 | 19 | 51 | 46 | 89 |
| 6.5 | 38 | 25 | 84 | 22 | 58 | 53 | 102 |
| 8.5 | 43 | 28 | 95 | 25.5 | 68 | 60.5 | 119 |
| 9.5 | 48 | 32 | 108 | 29 | 74 | 68.5 | 134 |
| 12 | 50 | 36 | 119 | 32 | 81 | 76 | 145 |
| 13.5 | 55 | 38 | 133 | 35 | 90 | 84 | 160 |
| 17 | 60.5 | 42 | 146 | 38 | 97 | 92 | 173 |
| 25 | 73 | 50 | 178 | 44.5 | 127 | 106.5 | 216 |
| 35 | 83 | 56 | 197 | 51 | 146 | 122 | 248 |
| 55 | 103 | 70 | 267 | 63 | 181 | 144.5 | 307 |
| 85 | 130 | 80 | 325 | 80 | 210 | 165 | 370 |
| 120 | 145 | 95.5 | 410 | 95 | 215 | 198 | 405 |
