Product Details:
Payment & Shipping Terms:
|
| Product: | Crane Scale With Printer | Max. Cap.: | 50 Ton |
|---|---|---|---|
| Min Cap.: | 1 Ton | Display Refresh Rate: | 6 Times Per Second |
| Extral Device: | Optional Thermal Insulation Device | Length: | 560 Mm - 1645 Mm |
| High Light: | horizontal lifting clamp,horizontal plate clamp |
||
OCS-D crane scale with printer
| Weighing accuracy | Comply with OIML Ⅲ | ||
| Display refresh rate | 6 times per second | ||
| Operation time( with full charged battery) | 40 hours | ||
| Wireles transmission distance | No less than 200m without any obstacles | ||
| Safe over-load | 150%F.S | ||
| Damaging over-load | 300%F.S | ||
| Working temperature rangle | 30～50℃ | ||
| Operation humidity | ＜95%R.H | ||
| Scabel battery | 6V/4.5Ah rechargeable battery | ||
| Details | Weight kg | |||||||||
| Capacity t | Division kg | Length | Ring weight | Ring height | lifting hook | Round shell height | Diameter | G5 | D5 | D5H |
| 1 | 1 | 560 | 95 | 58 | 25 | 140 | 265 | 34 | 38 | 44 |
| 2 | 1 | 560 | 95 | 58 | 25 | 140 | 265 | 34 | 38 | 44 |
| 3 | 1 | 560 | 95 | 58 | 25 | 140 | 265 | 34 | 38 | 44 |
| 5 | 2 | 820 | 120 | 80 | 45 | 190 | 320 | 49 | 53 | 60 |
| 10 | 5 | 940 | 125 | 90 | 55 | 190 | 320 | 59 | 63 | 71 |
| 15 | 5 | 1000 | 135 | 98 | 60 | 190 | 320 | 68.5 | 72.5 | 85 |
| 20 | 10 | 1100 | 235 | 127 | 75 | 190 | 320 | 91.5 | 92.5 | 107 |
| 30 | 10 | 1290 | 280 | 145 | 90 | 190 | 375 | 132 | 136 | 147 |
| 50 | 20 | 1645 | 290 | 210 | 160 | 296 | 510 | 325 | 330 | 360 |

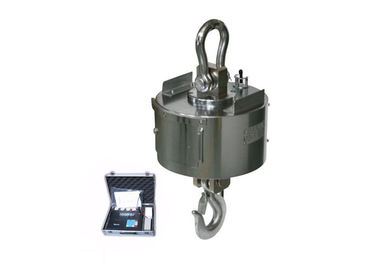

Product photos
Features
1. Good dynamic weighing performance, and the accuracy will not be affected by shaking
2. Steel structure, with high anti-bump and anti-interface capability
3. High integrated electron and high stability performance
4. Multiple weighing mode: conventional weighing mode, peak hold mode, counting mode and so on.
5. With memory-storage function of accumulating the total weight and total numbers
6. Adjust the division value according to the weighing objects
7. With high environmental suitability
8. Highlighted red or green LED, fit for the operation indoor or outdoor
9. Adopt stain gauge type load cell, with high precision and repeatability
10. RS232 interface selectable, can connect PC, large screen display and printer
