Product Details:
Payment & Shipping Terms:
|
| Product Name: | Chain Block 0.5 Ton - 20 Ton G80 Load Chain 3 Meters For Workshop / Warehouse | Min. Cap: | 0.5 Ton |
|---|---|---|---|
| Max. Cap: | 20 Ton | Standard Lifting Hegiht: | 3m |
| Color: | As Per Request | Load Chain Dia.: | 6 Mm , 8 Mm , 10 Mm |
| High Light: | horizontal lifting clamp,horizontal plate clamp |
||

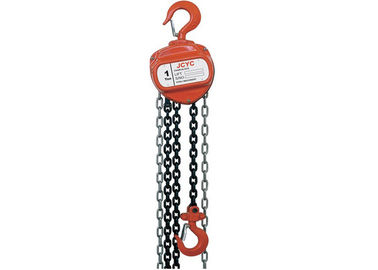

Chain Block 0.5 ton - 20 ton G80 Load Chain 3 Meters For Workshop / Warehouse
Features and advantages
* Automatic double pawl braking system
* Asbestos free friction disc
* Industrial powder coating meet RoSH requirement
Technical parameters
| Model | Lifting Capacity(t) | Lifting Height(m) | Running Test(t) | No.of Load Chain | Dia.of Load Chain(mm) | Net Weight(kg) | Packing Size(L*W*H)(cm) |
| CK-0.5 | 0.5 | 2.5 | 0.75 | 1 | 6 | 9 | 22*15*14 |
| CK-1 | 1 | 2.5 | 1.5 | 1 | 6 | 11.5 | 25*19*15 |
| CK-1.5 | 1.5 | 2.5 | 2.25 | 1 | 6 | 17.5 | 25*19*15 |
| CK-2 | 2 | 3 | 3 | 2 | 6 | 16 | 31*21*17 |
| CK-3 | 3 | 3 | 4.5 | 2 | 8 | 27 | 34.5*24*16 |
| CK-5 | 5 | 3 | 7.5 | 2 | 10 | 43 | 40*30*17 |
| CK-10 | 10 | 3 | 15 | 4 | 10 | 75 | 48*42*18.5 |
| CK-20 | 20 | 3 | 30 | 8 | 10 | 185 | 78*68*20 |
