Product Details:
Payment & Shipping Terms:
|
Product: | 500 Kg Lever Hoist | Chain Grade: | Grade 80 |
---|---|---|---|
Standard Lifting Height: | 1 M | Application: | Warehouse / Workshop |
Warranty: | One Year | ||
Highlight: | horizontal lifting clamp,horizontal plate clamp |

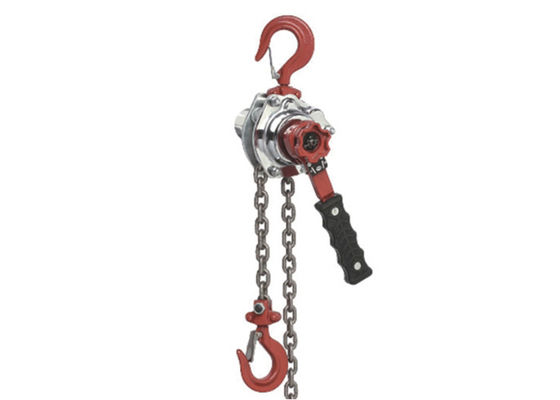

Mini Lever Hoist 250 kg 550 kg Lightweight / Compact / Convenient Design
Parameters
Model | Capacity(kg) | Lift Height(m) | Running test load(T) | Headroom (mm) | No.of load chain fall | Hand-pull lift force(N) | Chain Dia(mm) | Net weight (kg) |
VK0.25T | 250 | 1 | 3.75 | 215 | 1 | 125 | 4*12 | 0.35 |
VK0.5T | 500 | 1.5 | 7.5 | 255 | 1 | 180 | 5*15 | 0.55 |
Product description
Lever block is a universal, manual hoist for lifting, tensioning and lashing in any direction.
The ratchet lever block features compact design and robust, deep drawn, stamped steel construction.
High quality materials ensure light weight without infringing reliability.
1. Light-weight, small mounting sizes and small lever force at full load.
2. Top & bottom hooks are fitted with safety latches as standard.
3. The load chain can be pulled freely and easily through the hoist in both directions to attach the load or to
tension the chain. For safety reason free chains can not be done when the hoist is under load.
4. Short hand lever with rubber grip Level Block, level hoist, .
5. Hand lever operates with little effort due to optimal gear ratio.
6. Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous
overloading or abuse, the hook does not fracture but will slowly yield.
7. The hoist is fitted with high grade alloy load chain Level Block, level hoist, .
8. Inspection of lever hoist & manuals Level Block, level hoist, .
9. OEM available for Level Block, level hoist,
