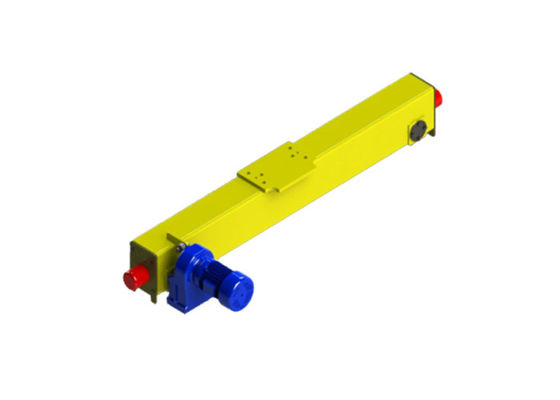

Single Girder Top Running Crane Carriage Alternative Motor High Performance

Single Girder Top Running Crane Carriage  Alternative Motor High Performance
Single Girder Top Running Crane Carriage  Alternative Motor High Performance Single Girder Top Running Crane Carriage  Alternative Motor High Performance

Large Image :  Single Girder Top Running Crane Carriage Alternative Motor High Performance

Product Details:
Place of Origin: China
Brand Name: JCYC
Certification: CE & ISO9001
Model Number: JCYC-EUS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood Case
Delivery Time: 15 to 20 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 to 200 sets per week
Detailed Product Description
Motor Power: Alternative Voltage: 220V To 440V
Wheel Size: Alternative Span: 1.8cm To 40cm
Material: Steel Condition: Brand New
High Light:

crane carriage

,

end carriage overhead crane

Single Girder Top Running Crane Carriage Alternative Motor High Performance





SPECIFICATION:



Lifting speed: single speed, double speed, frequency controlled speed

Pendant control or remote control

Working duty: ISO:M3/M4/M5/M6

                       FEM:1Bm/1Am/2m/3m

Working Temperature: -25 to 50 degrees

Power Supply: 220-600V, 50/60Hz





DESCRIPTION:

Single Girder Top Running Crane Carriage  Alternative Motor High Performance 0

Single Girder Top Running Crane Carriage  Alternative Motor High Performance 1



Model Crane Rectangular
Steel tube
Wheel size Motor power
(20m/min)
Motor power
(30m/min)
S1
(mm)
S2
(mm)
W1
(mm)
W2
(mm)
EUS90-15 1.6t-7.5m 150*150*6 U90*60 FA27-0.25KW FA27-0.37KW 1500 1300 400 550
EUS90-20 1.6t-11.5m 2000 1800 400 550
EUS90-25 1.6t-16.5m 2500 2300 400 550
EUS90-30 1.6t-22.5m 3000 2800 400 550
EUS125-15 3.2t-7.5m 150*200*8 U125*60 FA27-0.37KW FA27-0.55KW 1500 1300 400 550
EUS125-20 3.2t-11.5m 2000 1800 400 550
EUS125-25 3.2t-16.5m 2500 2300 400 550
EUS125-30 3.2t-22.5m 3000 2800 500 650
EUS125-35 3.2t-28.5m 3500 3300 600 750
EUS160-15 6.3t-7.5m 150*250*8 U160*70 FA37-0.55KW FA37-0.75KW 1500 1200 400 550
EUS160-20 6.3t-11.5m 2000 1700 400 550
EUS160-25 6.3t-16.5m 2500 2200 400 550
EUS160-30 6.3t-22.5m 3000 2700 500 650
EUS160-35 6.3t-28.5m 3500 3200 600 750
EUS200-20 12.5t-11.5m 200*250*8 U200*70 FA47-0.75KW FA47-1.1KW 2000 1700 500 650
EUS200-25 12.5t-16.5m 2500 2200 500 650
EUS200-30 12.5t-22.5m FA47-1.1KW 3000 2700 600 750
EUS200-35 12.5t-28.5m 3500 3200 700 850
EUS250-20 16t/20t-11.5m 200*300*8 U250*80 FA57-1.1KW FA57-1.5KW 2000 1600 500 650
EUS250-25 16t/20t-16.5m 2500 2100 600 750
EUS250-30 16t/20t-22.5m FA57-1.5KW 3000 2600 700 850
EUS250-35 16t/20t-28.5m 3500 3100 700 850





PLEASE FEEL FREE TO CONTACT US WITH ANY INQUIRY.
