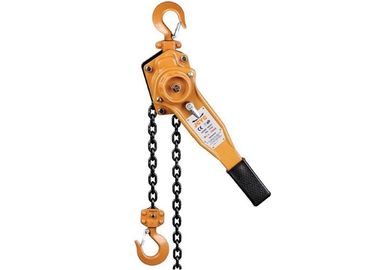

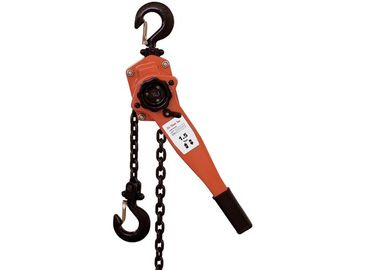

Lever block Low weight, small mount sizes and small lever force at rated load.
Products

Electric Wire Rope Hoist

Electric Chain Hoist

Double Girder Hoist

Foot Mounted Hoist

Explosion Proof Chain Hoist

Electric Winch

Overhead Crane

End Carriage

Overhead Crane Kits

Jib Crane

Lifting Tools

G80 Lifting Chain
Contact Us
Contact Now
Lever block Low weight, small mount sizes and small lever force at rated load.
  • name
  • name
  • name

Lever block Low weight, small mount sizes and small lever force at rated load.

MOQ: one
Standard Packaging: Carton/Plywood Case
Delivery Period: 15working day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC/OEM
Certification
CE ISO9001 Manufactring licence
Model Number
VA
Color:
Alternative
Max.Capacity:
9 T
Standard Lifting Height:
1.5m
Min. Capacity:
0.75 T
Application:
Workshop
Application 2:
Warehouse
Highlight:

horizontal lifting clamp

,

steel lifting clamps

Product Description

VA LEVER BLOCK, GERMANY TECHNOLOGY

Lever Hoists, Ratchet Lever Blocks, Crane Hoists

Heavy Duty, High Quality Lever Blocks



Product Details:

VA Lever Block

Features and advantages:

1. Germany technology.

2. Low weight, small mount sizes and small lever force at rated load.

3. Standard premium grade Alloy load chain.

4. 4 times safety factors with option functions like overload protection.

5. Drop-forged and expertly heat treated hooks for great strength and long wearing.

6. Load limiter is available at Extra cost.

7. Wide adaptation and 1 year warranty.

8. Sample order, OEM & ODM orders are all ok.



Model   VA-0.75 VA-1.5 VA-3 VA-6 VA-9
Capacity t 0.75 1.5 3 6 9
Standard Lift m 1.5 1.5 1.5 1.5 1.5
Running Test Load kN 11.2 22.5 45 75 112.5
Effort Required to Lift Rated Load N 140 220 320 340 360
Strands of Load Chain   1 1 1 2 3
Diameter of Load Chain mm 6 8 10 10 10
N.W. kg 9.5 11.5 18.5 27.5 46
Packing Measurement cm 37.5*16*18 52*17*22 55*18.5*22.5 87*21*23 60*42*28
Extra Weight Per Meter of Extra Lift kg 0.8 1.4 2.2 4.4 6.6
Dimension(mm) A 145 175 195 195 195
B 86 100 115 115 115
C 134 150 190 242 307
D 38 48 50 65 81
H 340 380 490 620 700
L 285 410 410 410 410
K 27 36 38 48 54





Tags:

horizontal lifting clamp,

steel lifting clamps,

horizontal plate clamp
