GL General Single Girder Top Running End Carriage 50t / 20t Loading capacity

Products

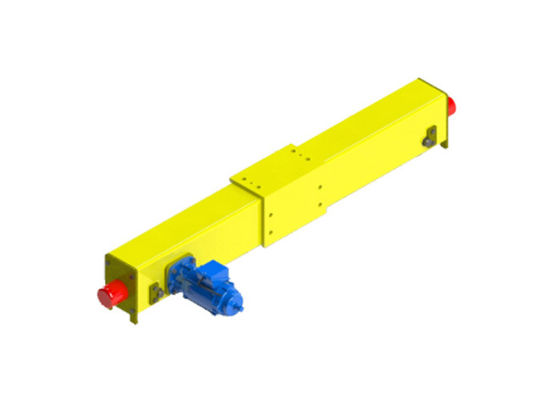

GL General Single Girder Top Running End Carriage 50t / 20t Loading capacity

MOQ:	1 set
Price:	Negotiable
Standard Packaging:	Plywood Case or Iron shelf
Delivery Period:	30 working day
Payment Method:	L/C, T/T, Western Union
Supply Capacity:	1000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

JCYC/OEM

Certification

CE ISO9001 Manufaturing licence

Model Number

GL GENERAL SINGLE GIRDER TOP RUNNING END CARRIAGE

Product Name:

GL General Single Girder Top Running End Carriage 50t / 20t Loading Capacity

Rated Load:

1 - 20 Ton

Crane:

Single Girder Crane

Span:

At Request

Motor:

Alternative

Voltage:

Alternative

Highlight:

end carriage overhead crane

end carriage of crane

Product Description

GL General Single Girder Top Running End Carriage 50t / 20t Loading capacity

Application:
GL Model, General Single Girder Top Running End Carriage
Widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.
Features and Advantages:
1. Using electromagnetic brake motors buffer, conjoined wheels, rectangular pipe and other major configuration.
2. Light weight, beautiful outlook, low noise with high transmission efficiency.
3. Modular production such as multiple features, it improved quality and competity without increase cost.
4. Compact built-in stopper also adaptive to photoelectric and greatly improved aesthetics.
5. Forged wheels, geared motor, head board, buffer and other parts all use high quality materials to ensure safety and durability.

Product Details:
GL General Single Girder Top Running End Carriage

Model	Crane	Rectangular Steel tube	Wheel Size	Motor power	S1 (mm)	S2 (mm)	W1 (mm)	W2 (mm)
GL125-15	1t-7.5m	1501506	W125*60	0.3KW*2	1500	1300	400	500
GL125-20	1t-11.5m				2000	1800	400	500
GL125-25	1t-16.5m				2500	2300	400	500
GL160-15	2t/3t-7.5m	1502008	W160*70	0.4KW*2	1500	1200	400	500
GL160-20	2t/3t-11.5m				2000	1700	400	500
GL160-25	2t/3t-16.5m				2500	2200	400	500
GL160-30	2t/3t-22.5m				3000	2700	500	600
GL160-35	2t/3t-28.5m				3500	3200	600	700
GL200-20	5t-11.5m	1502508	W200*70	0.4KW*2	2000	1700	400	500
GL200-25	5t-16.5m			0.4KW*2	2500	2200	400	500
GL200-30	5t-22.5m			0.75KW*2	3000	2700	500	600
GL200-35	5t-28.5m			0.75KW*2	3500	3200	600	700
GL250-20	10t-11.5m	2002508	W250*80	0.75KW*2	2000	1600	400	500
GL250-25A	10t-16.5m			0.75KW*2	2500	2100	500	600
GL250-30A	10t-22.5m			1.1KW*2	3000	2600	500	600
GL250-35A	10t-28.5m			1.1KW*2	3500	3100	700	800
GL250-25B	16t-16.5m	2003008	W250*80	1.1KW*2	2500	2100	600	700
GL250-30B	16t-22.5m			1.1KW*2	3000	2600	700	800
GL250-35B	16t-28.5m			1.5KW*2	3500	3100	700	800
GL315-30	20t-16.5m	2004008	W315*90	1.5KW*2	3000	2500	700	800
GL315-35	20t-22.5m	2004008	W315*90	1.5KW*2	3500	3000	700	800

Brief Introduction of Brand:

JCYC is one of the leading manufacturers and suppliers in China, offering wholesale service to the world since 1991. International standard production, strong technology team, excellent sales and after-sales service, JCYC is the best partner on your successful business road. OEM & ODM are both ok. Welcomes contact us to gain mutual benefits and make bright future together.
