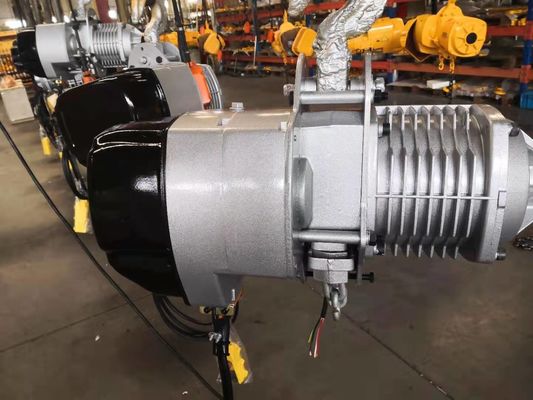

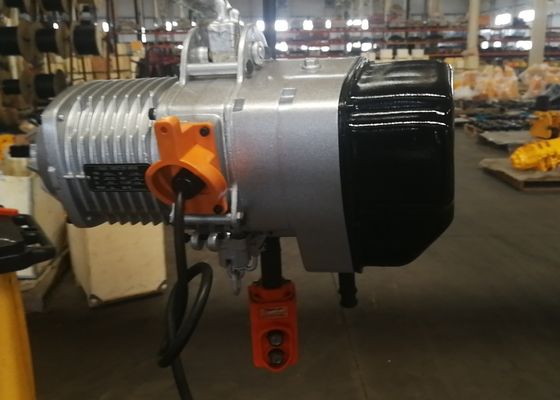

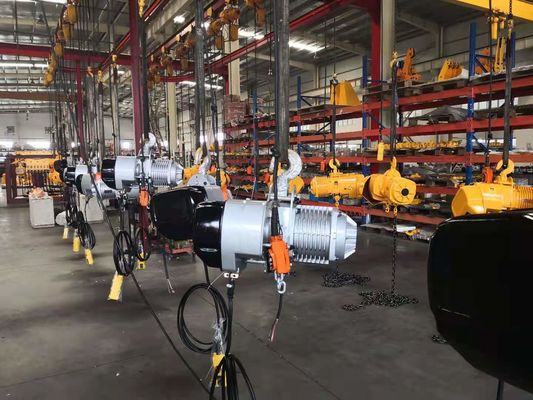

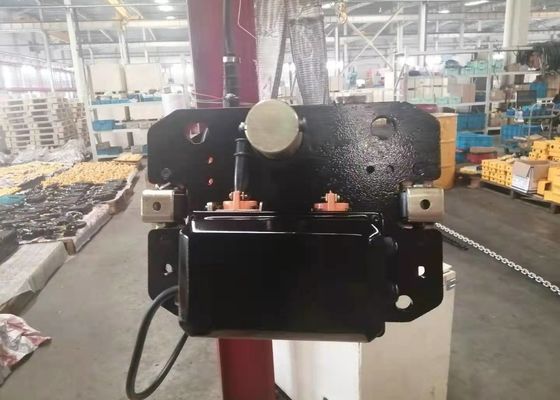

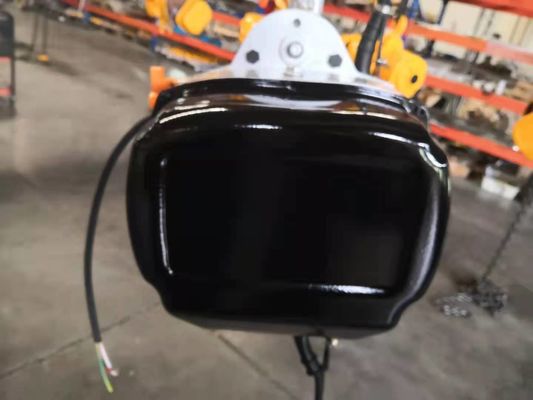

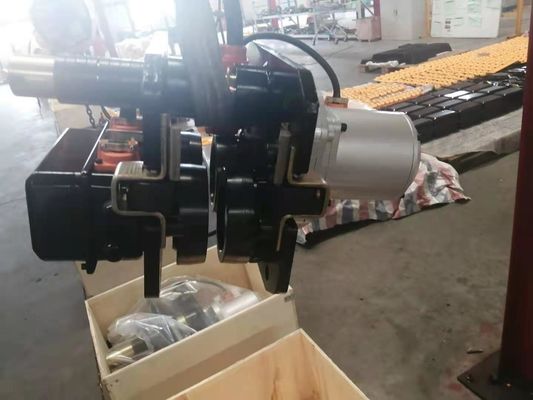

0.5t-35t 3m FEC Chain Electric Chain Hoist With Electric Trolley

Large Image : 0.5t-35t 3m FEC Chain Electric Chain Hoist With Electric Trolley

Product Details:

Place of Origin:	CHINA
Brand Name:	JCYC/OEM
Certification:	CE ISO9001 manufacturing licence
Model Number:	SY-A

Payment & Shipping Terms:

Minimum Order Quantity:	ONE
Price:	negotiable
Packaging Details:	Plywood Case
Delivery Time:	30 working day
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Product:	0.5t-35t 3m FEC Chain Electric Chain Hoist With Electric Trolley	Voltage:	220V/380V/440V/660V
Capacity:	0.5t-35t	Standard Lifting Height:	3m/6m/9m/12m/15m
Speed:	Single Speed/double Speed	Type:	Hook Type/ Trolley Type/ Low Headroom Type
Color:	Alternative
Highlight:	mini chain hoist , stainless steel chain hoist

0.5t-35t 3m FEC Chain Electric Chain Hoist With Electric Trolley

SY-A ELECTRIC CHAIN HOIST

SY Series Model SYA Electric Chain Hoist

Usage: Lifting, fixing, binding, traction, etc. Well accepted in various industrial fields.

Features and advantages:

The main parts of it adopt high quality steel product to ensure durability.
Special specifications and marks can be made according to customers' requirements.
Various lifting capacity, meet different needs.
The main body can be hanging in the I-beam to move straight or curve, or installed in the fixed bracket for lifting heavy objects.

Product technical data:

Model	Lifting Capacity(t)	Lifting Height(m)	Lifting Speed(m/min)	Running Speed(m/min)	Lifting Motor			Running Motor			I-Beam(mm)
Model	Lifting Capacity(t)	Lifting Height(m)	Lifting Speed(m/min)	Running Speed(m/min)	Power(kw)	R.P.M(r/min)	Power Supply	Power(kw)	R.P.M(r/min)	Power Supply	I-Beam(mm)
SY-A0.5-1	0.5	3-9	6.8	12.2	0.75	1440	220-440V 50/60HZ 3Phase	0.12	1440	220-440V 50/60HZ 3Phase	58-130
SY-A1-1	1	3-9	6.6	10/20	1.5	1440		0.4	1440		80-160
SY-A1-2	1	3-9	3.4	10/20	0.75	1440		0.4	1440		80-160
SY-A2-1	2	3-9	6.6	10/20	3.0	1440		0.4	1440		82-178
SY-A2-2	2	3-9	3.3	10/20	1.5	1440		0.4	1440		82-178
SY-A3-1	3	3-9	5.4	10/20	3.0	1440		0.4	1440		100-180
SY-A3-2	3	3-9	4.4	11/21	3.0	1440		0.4	1440		100-178
SY-A3-3	3	3-9	2.4	11/21	1.5	1440		0.4	1440		110-178
SY-A5-2	5	3-9	2.7	10/20	3.0	1440		0.75	1440		110-180
SY-A7.5-3	7.5	3-9	1.8	10/20	3*2	1440		0.75	1440		120-180
SY-A10-4	10	3-9	2.7	10/20	3*2	1440		0.75	1440		150-202
SY-A15-6	15	3-9	1.9	10/20	3*2	1440		0.75*2	1440		150-220
SY-A20-8	20	3-9	1.4	10/20	3*2	1440		0.75*2	1440		150-220
SY-A25-8	25	3-9	1.1	10/20	3*2	1440		0.75*2	1440		150-220
SY-A30-10	30	3-9	0.9	10/20	3*2	1440		0.75*2	1440		150-220
SY-A35-16	35	3-9	0.7	10/20	3*2	1440		0.75*2	1440		150-220
