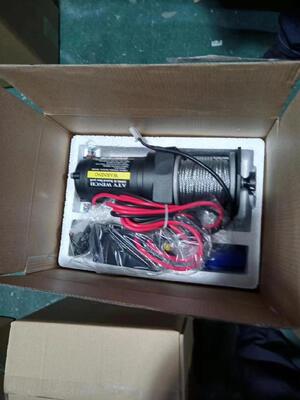

12v 24v Car Winch 4500lbs 6000lbs 12000lbs Electric Winches
  • name
  • name
  • name
  • name

12v 24v Car Winch 4500lbs 6000lbs 12000lbs Electric Winches

MOQ: 1
Price: $41.6-$329.9/pc
Standard Packaging: 1.Inner package: bubble film or stretch film. 2.Outside package: cartons or wooden cases.
Delivery Period: 5 work days
Payment Method: T/T
Supply Capacity: 5000 pcs/per mouth
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC
Certification
CE, ISO
Model Number
THP
Product Name:
12v 24v Electric Car Winch
Rated Line Pull:
2000-20000lbs
Voltage:
12/24v
Battery Cable:
72mm
Diameter:
31-38mm
Fairlead:
4-Way Roller Fairlead
Cable:
13mmx36m
Highlight:

12v 24v 12000lbs electric winch

,

12000lbs 24v electric winch

,

4500lbs 12v electric winch

Product Description
12V 24V Electric Car Winch - 4500lbs to 12000lbs Capacity
The electric car winch is a compact and powerful pulling device designed for vehicle recovery, towing operations, and heavy load handling. Ideal for ATVs, UTVs, off-road vehicles, and light trucks, this winch provides reliable performance in demanding conditions.
Power & Performance
Operating on 12V or 24V DC power, the winch connects directly to your vehicle battery for convenient operation without extension cords or gasoline engines. Available with either permanent magnet DC motors or wound motors, these winches deliver high torque output and fast line speeds for efficient heavy-load performance.
Advanced Engineering Features
The winch incorporates a specially designed planetary gear system that ensures high efficiency, smooth operation, and exceptional load-bearing capability. A standard solenoid control box provides stable and safe electrical control for all operations.
Key Advantages & Safety Features
  • Versatile application for vehicle recovery and heavy-duty pulling tasks
  • 12V/24V DC powered for energy-efficient operation
  • High-torque DC motor delivers strong pulling force
  • Heavy-duty planetary gear transmission system
  • Solenoid control box included for safe operation
  • Compact design for easy installation and reliable performance
Technical Specifications
12v 24v Car Winch 4500lbs 6000lbs 12000lbs Electric Winches 0
Model Rated Line Pull (lbs) Performance Voltage Motor (kw/hp) Drum Dimensions (mm) Total Weight (kg)
THP-2000 2000 12V or 24V 1.1/1.0 31×72 6
THP-3000 3000 12V or 24V 1.1/1.2 31×72 6.3
THP-3500 3500 12V or 24V 1.1/1.5 38×72 8.5
THP-4000 4000 12V or 24V 1.3/1.7 38×72 10
THP-4500 4500 12V or 24V 1.2/1.6 45×76.2 10
THP-6000 6000 12V or 24V 1.3/1.7 63.5×140 25
THP-9500 9500 12V or 24V 4.0/5.5 63.5×224 39
THP-12000 12000 12V or 24V 4.8/6.6 64×223.5 39
THP-20000 20000 12V or 24V 5.5/7.3 99×201.5 52
12v 24v Car Winch 4500lbs 6000lbs 12000lbs Electric Winches 1 12v 24v Car Winch 4500lbs 6000lbs 12000lbs Electric Winches 2 12v 24v Car Winch 4500lbs 6000lbs 12000lbs Electric Winches 3
Manufacturer Profile
12v 24v Car Winch 4500lbs 6000lbs 12000lbs Electric Winches 4
Industry Exhibitions & Global Presence
12v 24v Car Winch 4500lbs 6000lbs 12000lbs Electric Winches 5 12v 24v Car Winch 4500lbs 6000lbs 12000lbs Electric Winches 6
