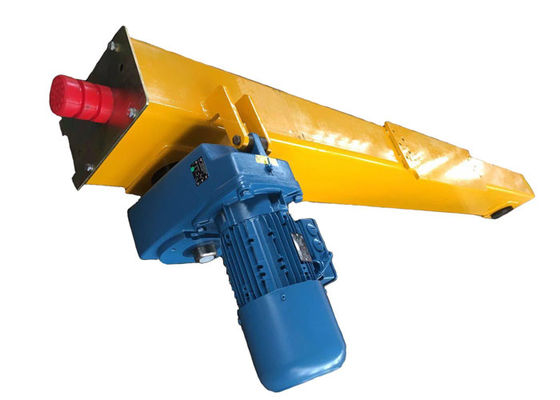

European Style Single Girder Top Running End Carriage Of Crane
  • name
  • name
  • name
  • name
  • name
  • name

European Style Single Girder Top Running End Carriage Of Crane

MOQ: 1 set
Price: Negotiable
Standard Packaging: Plywood case
Delivery Period: 15 to 20 working days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 200 to 300 sets per week
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC
Certification
CE & ISO9001
Model Number
GL
Product Name:
European Style Single Girder Top Running End Carriage Of Crane
Type:
European Style
Girder:
Single Girder
Travel:
Top Running
Application:
European Type Overhead Crane
After-sale Service Provided:
Engineers Available To Service Machinery Overseas, Online Support, No Overseas Service Provided, Free Spare Parts, Field Installation
Highlight:

end carriage overhead crane

,

end carriage of crane

Product Description

European Style Single Girder Top Running End Carriage Of Crane


Product Description:



European style single girder top running end carriage of crane is a popular and cost-effective lifting equipment used in a variety of fields and sectors, such as manufacturing, minning, chemical industry and steel mills. The overhead crane comes in four main configurations, including single/double girder, end carriage, top running and underhung system. Our overhead cranes can also be customized designed and constructed to suit your special lifting equipments.

Product Technical Parameters:



Model Crane Rectangular
Steel tube		 Wheel size Motor power
(20m/min)		 Motor power
(30m/min)		 S1
(mm)		 S2
(mm)		 W1
(mm)		 W2
(mm)
EUS90-15 1.6t-7.5m 150*150*6 U90*60 FA27-0.25KW FA27-0.37KW 1500 1300 400 550
EUS90-20 1.6t-11.5m 2000 1800 400 550
EUS90-25 1.6t-16.5m 2500 2300 400 550
EUS90-30 1.6t-22.5m 3000 2800 400 550
EUS125-15 3.2t-7.5m 150*200*8 U125*60 FA27-0.37KW FA27-0.55KW 1500 1300 400 550
EUS125-20 3.2t-11.5m 2000 1800 400 550
EUS125-25 3.2t-16.5m 2500 2300 400 550
EUS125-30 3.2t-22.5m 3000 2800 500 650
EUS125-35 3.2t-28.5m 3500 3300 600 750
EUS160-15 6.3t-7.5m 150*250*8 U160*70 FA37-0.55KW FA37-0.75KW 1500 1200 400 550
EUS160-20 6.3t-11.5m 2000 1700 400 550
EUS160-25 6.3t-16.5m 2500 2200 400 550
EUS160-30 6.3t-22.5m 3000 2700 500 650
EUS160-35 6.3t-28.5m 3500 3200 600 750
EUS200-20 12.5t-11.5m 200*250*8 U200*70 FA47-0.75KW FA47-1.1KW 2000 1700 500 650
EUS200-25 12.5t-16.5m 2500 2200 500 650
EUS200-30 12.5t-22.5m FA47-1.1KW 3000 2700 600 750
EUS200-35 12.5t-28.5m 3500 3200 700 850
EUS250-20 16t/20t-11.5m 200*300*8 U250*80 FA57-1.1KW FA57-1.5KW 2000 1600 500 650
EUS250-25 16t/20t-16.5m 2500 2100 600 750
EUS250-30 16t/20t-22.5m FA57-1.5KW 3000 2600 700 850
EUS250-35 16t/20t-28.5m 3500 3100 700 850


European Style Single Girder Top Running End Carriage Of Crane 0



Product Installation:



1. Connecting Plate Installation

Put the connection plate on the top of end carriage, Align the

Positioning Pin Hole and put the flexible positioning pins of onto

the holeφ10x30 into the hole to fix the connection plate.Connect

the connection plate and end carriage with bolt M16x70.

European Style Single Girder Top Running End Carriage Of Crane 1



2. Wheel Installation

Press the two bearings into the two sides of wheels and then

put it into the end carriage; Fix the wheels with shaft and shaft sleeve.

Fix the shaft with the shaft platen; Fix the shaft platen with Bolts.

European Style Single Girder Top Running End Carriage Of Crane 2





3. Seal Plate and Rubber buffer installation

Install the Rubber buffer onto seal plate and then fixed the seal plate onto the two ends of the end carriage with bolts.

European Style Single Girder Top Running End Carriage Of Crane 3



4. Current Collector Mounting Plate Installation

This mounting plate is used for Current Collector Bracket installation at site.Remove the mounting plate when install the Current Collector Bracket, Welding the bracket onto the mounting plate and then fix the mounting plate onto the End carriage with Bolts.

European Style Single Girder Top Running End Carriage Of Crane 4
