Electric Wire Rope Hoist CD MD with 8 M/min Single Speed and 0.8/8 M/min Double Speed for 1t-100t Capacity

Name: Electric Wire Rope Hoist CD MD with 8 M/min Single Speed and 0.8/8 M/min Double Speed for 1t-100t Capacity
Brand: Chongqing Shanyan Crane Machinery Co., Ltd.
SKU: CD MD
Availability: InStock

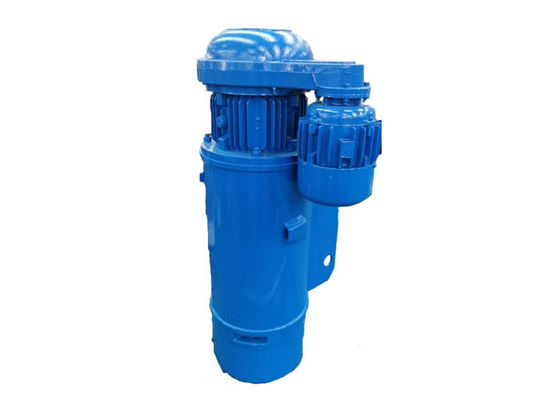

Large Image : Electric Wire Rope Hoist CD MD with 8 M/min Single Speed and 0.8/8 M/min Double Speed for 1t-100t Capacity

Product Details:

Place of Origin:	China
Brand Name:	JCYC
Certification:	CE ISO9001 manufacturing licence
Model Number:	CD MD

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	negotiable
Packaging Details:	Wooden Case
Delivery Time:	30 working day
Payment Terms:	T/T
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Name:	Electric Wire Rope Hoist CD MD	Capacity:	1t-100t
Lift Height:	Standard 6/9/12/18m Or At Request	Lift Speed:	8m/min; 0.8/8 M/min
Travel Speed:	20 M/min	Usage:	Railways, Docks, Industrial And Mining Enterprises, Warehouses And Other Construction Areas
Color:	Yellow, Blue, Red, Orange...
Highlight:	8 M/min Single Speed Electric Wire Rope Hoist , 0.8/8 M/min Double Speed CD MD Hoist , 1t-100t Capacity Wire Rope Lifting Hoist

Electric Wire Rope Hoist CD/MD Series

CD1 and MD1 type electric wire rope hoists with capacities ranging from 0.25t to 32t. These hoists feature high working efficiency, fast lifting speeds, durability, and easy maintenance.

Product Overview

These electric wire rope hoists can be used independently or integrated with single girder cranes, double girder cranes, gantry cranes, cantilever cranes, and other lifting equipment. They are widely applied in railways, docks, industrial and mining enterprises, warehouses, and construction areas.

Technical Specifications

CD1 Series - Single Speed Hoists

Model	Capacity (t)	Lifting Speed (m/min)	Running Speed (m/min)	Wire Rope Type	Rope Diameter (mm)	Power (kw)	R.P.M	Power Supply
CD1-0.25	0.25	8	20	6*19	3.6	0.4	1380	220-440V 50/60HZ 3 Phase
CD1-0.5	0.5	8	20	6*37+1	4.8	0.8	1380
CD1-1	1	8	20	6*37+1	7.4	1.5	1380
CD1-2	2	8	20	6*37+1	11	3	1380
CD1-3	3	8	20	6*37+1	13	4.5	1380
CD1-5	5	8	20	6*37+1	15	7.5	1380
CD1-10	10	7	20	6*37+1	15	13	1380
CD1-16	16	3.5	20	6*37+1	15	13	1380
CD1-20	20	3.5	20	6*37+1	20	13	1380

MD1 Series - Double Speed Hoists

Model	Capacity (t)	Lifting Speed (m/min)	Running Speed (m/min)	Wire Rope Type	Rope Diameter (mm)	Power (kw)	R.P.M	Power Supply
MD1-0.25	0.25	8/0.8	20	6*19	3.6	0.4	1380	220-440V 50/60HZ 3 Phase
MD1-0.5	0.5	8/0.8	20	6*37+1	4.8	0.2/0.8	1380
MD1-1	1	8/0.8	20	6*37+1	7.4	0.2/1.5	1380
MD1-2	2	8/0.8	20	6*37+1	11	0.4/3	1380
MD1-3	3	8/0.8	20	6*37+1	13	0.4/4.5	1380
MD1-5	5	8/0.8	20	6*37+1	15	0.8/7.5	1380
MD1-10	10	7/0.7	20	6*37+1	15	1.5/13	1380
MD1-16	16	3.5/0.35	20	6*37+1	15	1.5/13	1380
MD1-20	20	3.5/0.35	20	6*37+1	20	1.5/13	1380

Key Features & Advantages

CD1/MD1 type hoists can be modified for use as winches
Choice of single or double lifting speeds, with multi-speed options available using frequency inverters
Compatible with H-type rails for low-headroom applications (I-type rails also available)
Recommended rope reeving configurations: 2/1, 4/2, or 4/1
Standard double-girder rail gauges: 1200mm, 1500mm, 1800mm, 2100mm, and 2300mm (custom sizes available)
Standard traveling speed: 20m/min (30m/min or 45m/min available upon request)
CD1 models feature normal speed for standard applications
MD1 models offer both normal and low speeds for precise loading/unloading, sand box mounting, machine tool maintenance, and other precision tasks

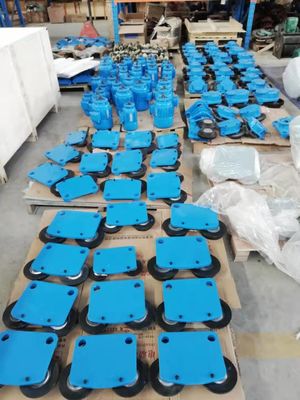

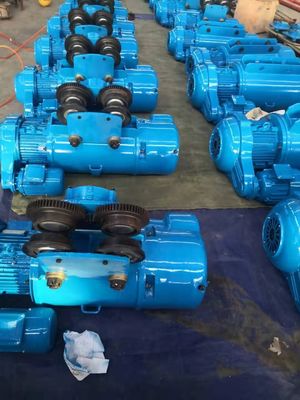

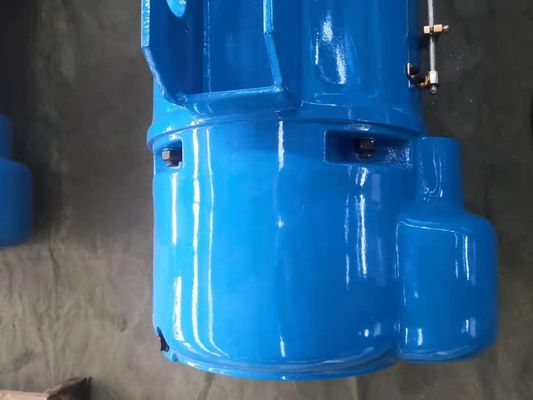

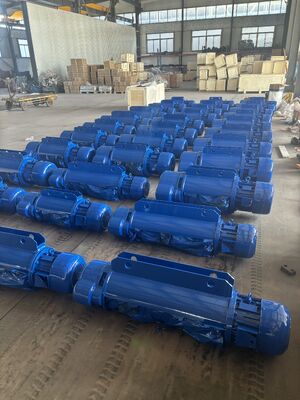

Product Gallery
