Overhead 15T Wire Rope Crane Hoist 18M Lifting

MOQ: 1 pcs
Price: Negotiable
Standard Packaging: Plywood Case
Delivery Period: 10 -15 working days
Payment Method: L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Capacity: 1000 units per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC
Certification
CE&ISO
Model Number
SHSL
Name:
European Type Electric Wire Rope Hoist
Capacity:
1t To 80t
Standard Lifting Height:
6/9/12/18M
Lifting Speed:
Double Speed, Frequency Controlled Speed
Working Duty:
M5
Motor:
ABM MOTOR
Highlight:

15T Wire Rope Crane Hoist

,

18M Lifting Wire Rope Crane Hoist

,

IP55 Wire Rope Crane Hoist

Product Description

5T 10T 15T European Model Electric Wire Rope Hoist with IP55 ABM Motor





Product Introduction



European Type Electric Wire Rope Hoist

It is latest designed internation standard product by combining and applying the advanced German technologies. It has compact structure and its frame is in rectangular shape. Its drum is made of seamless steel pipe. Its planetary gearbox, which is in the hoisting drum, electromotor and electric control box is in beeline collocation. The hoist has overload protection, overheating protection and phase relay protection devices. Its modular design can realize the seamless connection with frequency inverter, automatic weighing system and automatic detection system.



Application



It is widely used for overhead crane, gantry crane etc. heavy duty industry, light duty industry especially highly resticted environment plants. Especially for the places with high environmental requirements.



Features



* Trolley with frequency conversion motor
* Double speed/frequency conversion lifting motor
* Motor protection grade IP55, Insulation grade F
*Electromagnetic disc brake, maintenance-free
* Control volatege 24v/26v/48v/110v
* Schneider contactor & Inverter
* 380V/415V/440V/460V/3PH/50/60HZ
*Lifting limit switch
*Hook, with safety latch
* Overload limiter
*Ambient temperature: -20ºC~+40ºC
*Motor over temperature protection



Technical Parameters



Capacity ton Lifting height m Lifting speed m/min Lifting motor kw Traveling speed m/min Traveling motor kw Lifting System FEM/ISO Traveling System
FEM/ISO		 I-Beam Width mm
2t 6/9/12/15/18 5/0.8 3.2/0.45 5/20 0.37 3M M6 2M M5 150-300
3.2t 6/9/12/15/18 5/0.8 3.2/0.45 5/20 0.37 2M M5 2M M5 150-300
5t 6/9/12/15/18 5/0.8 6.1/1 5/20 0.37 2M M5 2M M5 200-350
6.3t 6/9/12/15/18 5/0.8 6.1/1 5/20 0.37 1Am M4 2M M5 200-350
8t 6/9/12/15/18 5/0.8 9.5/1.5 5/20 0.75 3M M6 2M M5 200-410
10t 6/9/12/15/18 5/0.8 9.5/1.5 5/20 0.75 2M M5 2M M5 200-410
12.5t 6/9/12/15/18 4/0.6 12.5/2 5/20 0.75 1Am M4 2M M5 200-410
16t 6/9/12/15/18 4/0.6 16/2.6 5/20 0.75x2 2M M5 2M M5 300-450
20t 6/9/12/15/18 4/0.6 16/2.6 5/20 0.75x2 1Am M4 2M M5 300-450
8t 20/24/28/32/36 8/1.3 12.5/2 5/20 0.75 2M M5 2M M5 200-410
10t 20/24/28/32/36 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 200-410
12.5t 20/24/28/32/36 6.3/1 16/2.6 5/20 0.75 1Am M4 2M M5 200-410

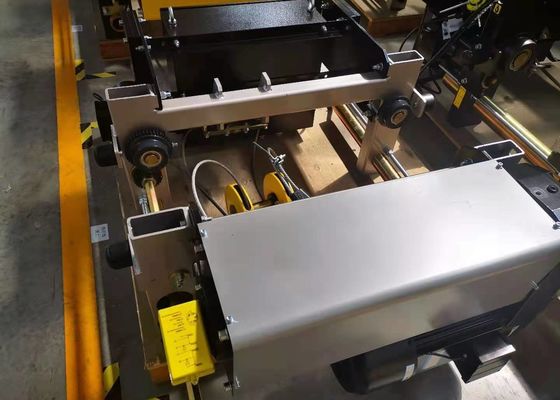

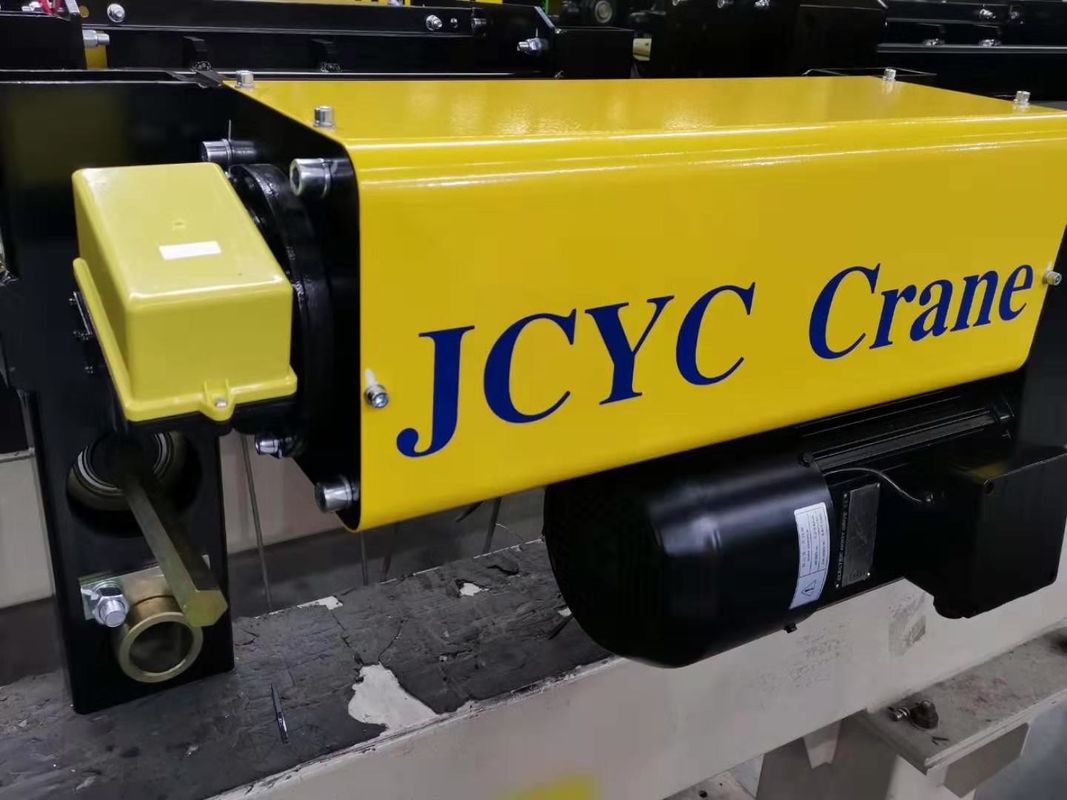

Product show



Overhead 15T Wire Rope Crane Hoist 18M Lifting 0Overhead 15T Wire Rope Crane Hoist 18M Lifting 1Overhead 15T Wire Rope Crane Hoist 18M Lifting 2
