Lifting Equipment 5 Ton 9 m Electrical Wire Rope Hoist with trolley

MOQ: 1
Price: USD500-5000
Standard Packaging: Plywood cas
Delivery Period: 2weeks
Payment Method: D/A,L/C,D/P,T/T,Western Union
Supply Capacity: 500SETS/Month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
JCYC
Certification
CE/ISO
Model Number
CD1/MD1
Products Name:
Electric Wire Rope Hoist With Trolley
Type:
Double Girder
Color:
Red/Yellow/customized
Speed:
Double Speed
MOQ:
10 Pcs
Highlight:

5 ton electric wire rope hoist

,

9m lifting equipment with trolley

,

industrial wire rope hoist trolley

Product Description
5 Ton 9m Electrical Wire Rope Hoist with Trolley
CD1/MD1 Electric Wire Rope Hoist - Compact, lightweight lifting equipment designed for efficient material handling operations.

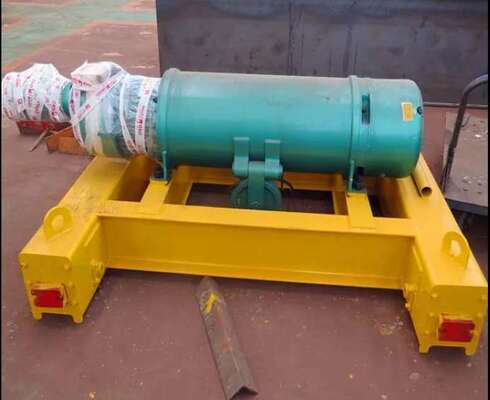

Lifting Equipment 5 Ton 9 m Electrical Wire Rope Hoist with trolley 0
Safety Features & Protection Systems
  • Crane traveling limit switch
  • Weight overload protection device
  • Lifting height limit device
  • Voltage lower protection function
  • Phase sequence protection function
  • Emergency stop function
  • Rain cover for outdoor hoist, driving units, and electrical cubicle
  • Warning indicator: flashing lights and warning sound
  • Wireless infra-detector for anti-collision protection
Product Description
The wire rope electric hoist is a compact, lightweight, small-sized lifting equipment with versatile components and convenient operation. It primarily consists of components such as a motor, transmission mechanism, drum, and wire rope. The motor drives the transmission mechanism, causing the drum to rotate and wind up or release the wire rope, thereby achieving the lifting and moving of heavy objects. It can be used independently or in combination with bridge cranes, gantry cranes, jib cranes, and other lifting devices.
Technical Specifications
Model CD1-0.5 CD1-1 CD1-2 CD1-5 CD1-10
Capacity (t) 0.5 1 2 5 10
Standard Lift (m) 6-12 45473 6-30 45473 45565
Lifting Speed (m/min) 8 8 8 8 7
Running Speed (m/min) 20(30) 20(30) 20(30) 20(30) 20(30)
Wire Rope Type 6*37-4.8-180 6*37-7.4-180 6*37-11-155 6*37-15-200 6*37-17.5-20
I Beam Track Type 16-28b 16-28b 20a-32c 25a-63c 28a-63c
Motor Power (kw) 0.8 1.5 3 7.5 13
Motor R.P.M (r/min) 1380 1380 1380 1380 1380
Voltage (V) 380 or customized
Frequency (Hz) 50(60) 50(60) 50(60) 50(60) 50(60)
Phase 3 3 3 3 3
Company Profile
