CD1/MD1 Electric Lifting Wire Rope Hoist Single Speed Double Speed

Products

CD1/MD1 Electric Lifting Wire Rope Hoist Single Speed Double Speed

MOQ:	1 piece
Price:	negotiable
Standard Packaging:	Wooden Case
Delivery Period:	30 working day
Payment Method:	T/T
Supply Capacity:	1000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Certification

CE ISO9001 manufacturing licence

Model Number

CD MD

Name:

CD1/MD1 Electric Lifting Wire Rope Hoist Single Speed Double Speed

Capacity:

1t-100t

Lift Height:

Standard 6/9/12/18m Or At Request

Lift Speed:

8m/min; 0.8/8 M/min

Travel Speed:

20 M/min

Control Voltage:

24V/36V/48V

Warranty:

1 Year

Highlight:

single speed electric wire rope hoist

double speed electric lifting hoist

CD1 MD1 electric rope hoist

Product Description

1 Ton 2 Ton 3 Ton 5 Ton 10 Ton Electric Wire Rope Hoist CD MD

Product Introduction

Our products are widely used in industry and manufacturing industry and other special purpose, such as mold, wind power, logistics, railway, shipbuilding, bridge construction, factory assembly line, mechanical maintenance platform etc.

The electric wire rope hoist CD1 and MD1 have features of compact, light, small-sized shape and smooth operation. It can be uesd not only on the overhead reils, but also be uesd in conjunction with many types of electric or manual cranes such as the single-grider crane, the double-grider crane, the cantilever crane and the gantry crane. The eletric hoist model MD1 with double lifting speeds should be used in case where the hiost model CD1 can not meet the requirements for fine abjustments during precision operations

Technical configuration

Model	Lifting Capacity(t)	Lifting Speed(m/min)	Running Speed(m/min)	Wire Rope Type	Dia. Of Wire Rope(mm)	(H)Lifting Height
Model	Lifting Capacity(t)	Lifting Speed(m/min)	Running Speed(m/min)	Wire Rope Type	Dia. Of Wire Rope(mm)	Power(kw)	R.P.M(r/min)	Power Supply
CD1-0.25	0.25	8	20	6*19	3.6	0.4	1380	220-440V 50/60HZ 3 Phase
CD1-0.5	0.5	8	20	6*37+1	4.8	0.8	1380
CD1-1	1	8	20	6*37+1	7.4	1.5	1380
CD1-2	2	8	20	6*37+1	11	3	1380
CD1-3	3	8	20	6*37+1	13	4.5	1380
CD1-5	5	8	20	6*37+1	15	7.5	1380
CD1-10	10	7	20	6*37+1	15	13	1380
CD1-16	16	3.5	20	6*37+1	15	13	1380
CD1-20	20	3.5	20	6*37+1	20	13	1380

Model	Lifting Capacity(t)	Lifting Speed(m/min)	Running Speed(m/min)	Wire Rope Type	Dia. Of Wire Rope(mm)	(H)Lifting Height
Model	Lifting Capacity(t)	Lifting Speed(m/min)	Running Speed(m/min)	Wire Rope Type	Dia. Of Wire Rope(mm)	Power(kw)	R.P.M(r/min)	Power Supply
MD1-0.25	0.25	8/0.8	20	6*19	3.6	0.4	1380	220-440V 50/60HZ 3 Phase
MD1-0.5	0.5	8/0.8	20	6*37+1	4.8	0.2/0.8	1380
MD1-1	1	8/0.8	20	6*37+1	7.4	0.2/1.5	1380
MD1-2	2	8/0.8	20	6*37+1	11	0.4/3	1380
MD1-3	3	8/0.8	20	6*37+1	13	0.4/4.5	1380
MD1-5	5	8/0.8	20	6*37+1	15	0.8/7.5	1380
MD1-10	10	7/0.7	20	6*37+1	15	1.5/13	1380
MD1-16	16	3.5/0.35	20	6*37+1	15	1.5/13	1380
MD1-20	20	3.5/0.35	20	6*37+1	20	1.5/13	1380

Features and advantages

CD1/MD1 type hoist can be used as a winch if with slight modification.
Choose single or double lifting speed, even multi-speed possible with frequency inverters.
The suitable rail for low-headroom hoist is H-type rail, and I-type also is available.
The recommended rope reeving of the kind of hoist is 2/1, 4/2 or 4/1.
The normal rail gauge of the double-girder hoist is 1200mm, 1500mm, 1800mm, 2100mm and 2300mm or at request.
The normal traveling speed is 20m/min, or 30m/min, 45m/min by request.
CD1 has only a normal speed which can satisfy Normal application. MD1 provides two speeds: Normal speed and low speed. With low speed it can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc.

Product show:

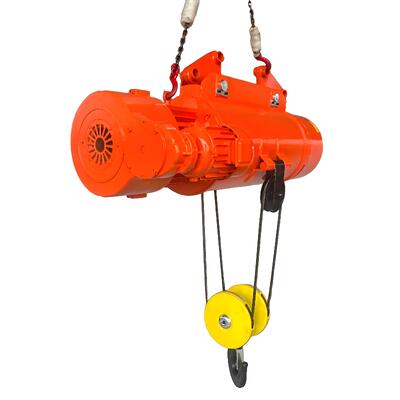

CD1/MD1 Electric Lifting Wire Rope Hoist Single Speed Double Speed 0

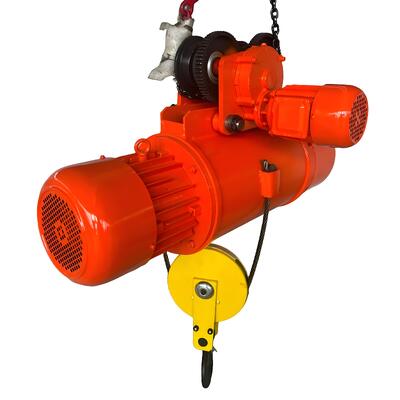

CD1/MD1 Electric Lifting Wire Rope Hoist Single Speed Double Speed 1

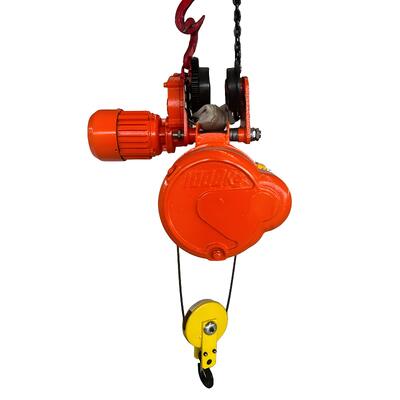

CD1/MD1 Electric Lifting Wire Rope Hoist Single Speed Double Speed 2

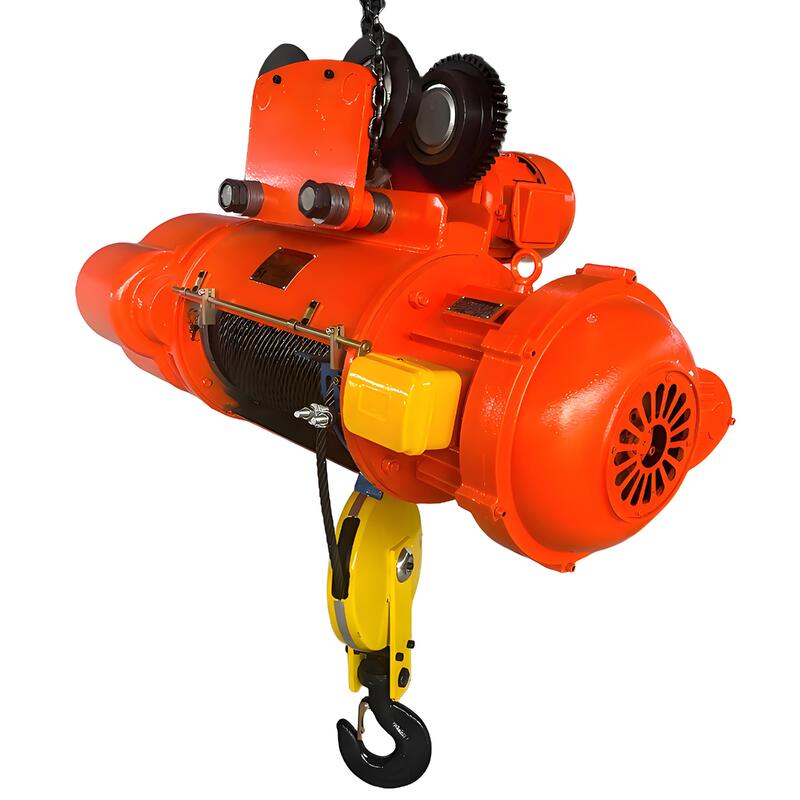

CD1/MD1 Electric Lifting Wire Rope Hoist Single Speed Double Speed 3
