Mini 500kg/1000kg Portable Electric Wire Rope Hoist New Condition Remote Control
  • name
  • name
  • name
  • name
  • name

Mini 500kg/1000kg Portable Electric Wire Rope Hoist New Condition Remote Control

MOQ: 1
Price: $45.7-$158.6/per pc
Standard Packaging: 1.Inner package: bubble film or stretch film. 2.Outside package: cartons or wooden cases.
Delivery Period: 5-10 work days
Payment Method: T/T,L/C
Supply Capacity: 5000 pcs/ per mouth
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC
Certification
CE, ISO
Model Number
HGS
Product Name:
Mini Electric Hoist
Power Source:
Electric
Warranty:
1 Year
Sling Type:
Wire Rope
After-sales Service Provided:
Online Support
Lifting Height:
6/12m
Max Lifting Weight:
1200kg
Application:
Warehouse, Home And So On
Type:
Stationary Or Moveable
Voltage:
220v 230v 240v
Highlight:

PA500 Mini Eletric Hoist

,

220V Mini Eletric Hoist

,

200kg Mini Eletric Hoist

Product Description

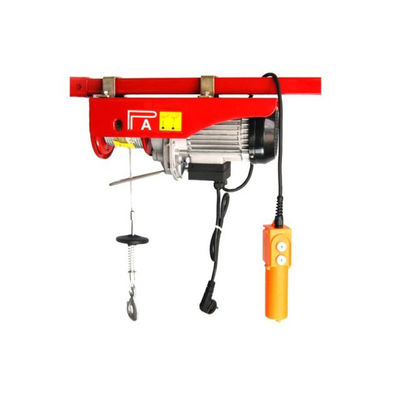

Mini 500kg/1000kg Portable Electric Wire Rope Hoist
The Mini Portable Electric Wire Rope Hoist, also known as a civil electric hoist, is available in both fixed and trolley configurations. Engineered for diverse lifting applications, this hoist efficiently handles loads up to 1,000 kg, making it particularly suitable for transporting heavy items from ground level to upper floors in multi-story buildings.
Designed with a simple structure and compact, lightweight construction, this electric hoist offers easy installation and operation. Powered by standard single-phase electricity, it complies with international manufacturing standards to ensure reliable and safe performance. The cast iron motor cooling fins enhance heat dissipation, contributing to extended operational lifespan.
Capable of lifting speeds up to 12 m/min, the hoist comes with a standard 12-meter wire rope (custom lengths available). Its advanced double-hook design significantly increases lifting capacity. Operating on 220V household power, it finds extensive use in residential settings, industrial production lines, and logistics handling operations.
Key Features & Advantages
  • Compact and intelligent design for easy operation and convenience
  • Automatic stop function when limit stopper contacts limit switch
  • Motor automatically stops if wire rope is lifted in reverse direction
  • Hook operation supports both dynamic and static loading modes
  • Operates on standard 220V household power supply
  • Plug-in power cable for simple and convenient setup
  • 360° rotating hook for flexible and efficient operation
Technical Specifications
Model Rated Capacity (kg) Rated Voltage (V) Lifting Height (m) Method of Use Lifting Speed (m/min) Quantity per Carton (pcs)
HGS-PA200A 100/200 220/230/240 12/6 Single-hook/Double-hook 10/5 2
HGS-PA250A 125/250 220/230/240 12/6 Single-hook/Double-hook 10/5 2
HGS-PA500A 250/500 220/230/240 12/6 Single-hook/Double-hook 10/5 2
HGS-PA600A 300/600 220/230/240 12/6 Single-hook/Double-hook 10/5 2
HGS-PA700A 350/700 220/230/240 12/6 Single-hook/Double-hook 8/4 2
HGS-PA1000A 500/1000 220/230/240 12/6 Single-hook/Double-hook 8/4 1
HGS-PA1200A 600/1200 220/230/240 12/6 Single-hook/Double-hook 8/4 1
HGS-PA200B 100/200 100/110/120 12/6 Single-hook/Double-hook 10/5 2
HGS-PA400B 200/400 100/110/120 12/6 Single-hook/Double-hook 10/5 2
Product Images
Mini 500kg/1000kg Portable Electric Wire Rope Hoist New Condition Remote Control 0
Mini 500kg/1000kg Portable Electric Wire Rope Hoist New Condition Remote Control 1
Mini 500kg/1000kg Portable Electric Wire Rope Hoist New Condition Remote Control 2
Company Profile
Mini 500kg/1000kg Portable Electric Wire Rope Hoist New Condition Remote Control 3
Exhibition Showcase
Mini 500kg/1000kg Portable Electric Wire Rope Hoist New Condition Remote Control 4
Mini 500kg/1000kg Portable Electric Wire Rope Hoist New Condition Remote Control 5
