Under Running Overhead Crane 5ton Capacity with 3-30m Lifting Height and A3-A4 Working Duty for Efficient Workshop Use

Under Running Overhead Crane 5ton Capacity with 3-30m Lifting Height and A3-A4 Working Duty for Efficient Workshop Use
Under Running Overhead Crane 5ton Capacity with 3-30m Lifting Height and A3-A4 Working Duty for Efficient Workshop Use Under Running Overhead Crane 5ton Capacity with 3-30m Lifting Height and A3-A4 Working Duty for Efficient Workshop Use Under Running Overhead Crane 5ton Capacity with 3-30m Lifting Height and A3-A4 Working Duty for Efficient Workshop Use

Large Image :  Under Running Overhead Crane 5ton Capacity with 3-30m Lifting Height and A3-A4 Working Duty for Efficient Workshop Use

Product Details:
Place of Origin: CHINA
Brand Name: JCYC / OEM
Certification: CE ISO9001
Model Number: SOC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Ngotiable
Packaging Details: Standard export packing
Delivery Time: 20 working day
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 800 sets per month
Contact Now
Detailed Product Description
Crane Name: Under Running Overhead Crane Capacity: 0.5t To 10t
Span: 3-22.5m Working Duty: A3-A4
Lifting Height: 3-30m Control Method: Pendent Control Or Wireless Remote Control
Highlight:

Under Hung Shop Crane

,

Hanger Overhead Crane

,

Wire Rope Overhead Travelling Crane

Under Running Wire Rope Hanger Overhead Crane - 5 Ton Capacity

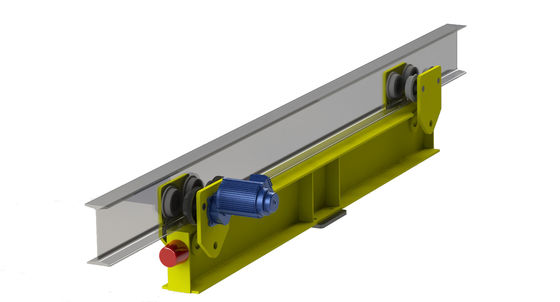

Suspension cranes, also known as under running or underhung cranes, are compact, lightweight overhead lifting solutions designed for production workshops, assembly lines, and warehouse applications. These cranes are suspended from building roof structures and operate along the bottom flange of runway beams.
Product Specifications
Our single girder suspension cranes are manufactured in strict compliance with industrial standard JB2603-94 and are typically equipped with CD/MD electric wire rope hoists or SY electric chain hoists. The unique under running design is optimized for lighter lifting applications with capacities ranging from 0.5 to 10 tons and spans from 3 to 22.5 meters.
Key Advantages
  • Ideal solution for facilities with height restrictions or no supporting columns
  • No requirement for building columns or engineered support structures
  • Compact design with exceptional structural rigidity
  • Maximizes lifting height within limited building space
  • Optimizes building space utilization by approaching walls closely
  • Low-noise operation with minimal environmental impact
  • Reduced tracking issues compared to top running overhead cranes
Technical Parameters
Mechanism Item Unit Specifications
Lifting Capacity ton 0.5-5 ton
Lifting Height m 3-30m
Span m 3-16m
Lifting Speed m/min 0.8/8
Working System A4-A6
Travelling Speed m/min 2-30m/min
Power Source AC 50/60HZ 220V-480V 3P customized
Working Environment Temperature -25ºC~+40ºC
Quotation Requirements
To provide an accurate quotation, please provide the following information:
  1. Required lifting capacity
  2. Main girder span requirements
  3. Desired lifting height
  4. Single or double speed lifting preference
  5. Control method (pendant or remote control)
  6. Power supply specifications (voltage/phase/frequency)
  7. Any special requirements or customizations
Providing detailed drawings will greatly assist in preparing an accurate quotation.
Product Visualization

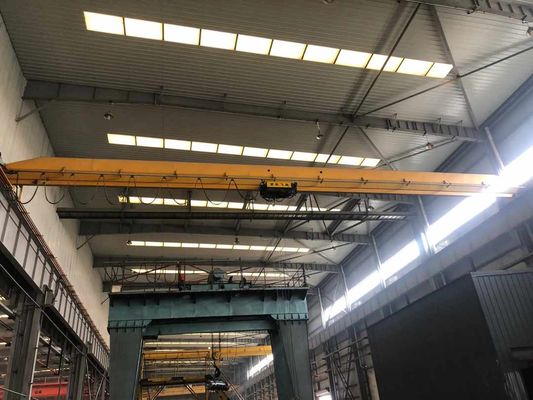

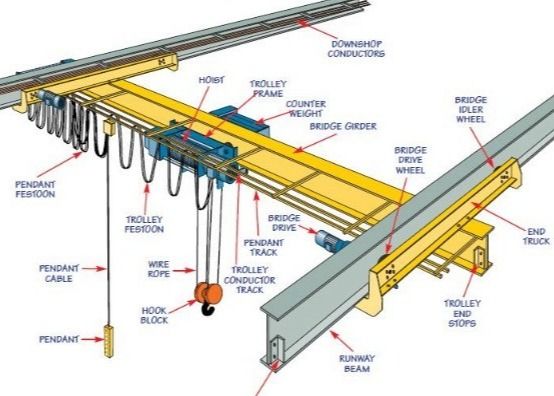

Under Running Overhead Crane 5ton Capacity with 3-30m Lifting Height and A3-A4 Working Duty for Efficient Workshop Use 0
