CD1 Electric Wire Rope Hoist with 0.25-32Ton Capacity 8(0.8)m/min Lifting Speed and 20/30 m/min Travel Speed for Overhead Cranes

MOQ: 1 piece
Price: $500-$10000
Standard Packaging: Plywood Case
Delivery Period: 15 working day
Payment Method: D/A,D/P,L/C,T/T,Western Union,MoneyGram
Supply Capacity: 1000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC
Certification
CE ISO9001 manufacturing licence
Model Number
CD1/MD1
Name:
CD1 Electric Wire Rope Crane Hoist For Overhead Crane In Mining
Capacity:
0.25-32Ton
Lifting Speed:
8(0.8)m/min
Girder:
Single Girder
Rail Type:
I-Type, H-Type Rail
Travel Speed:
20/30 M/min
Color:
As Per Request
Highlight:

Electric Wire Rope Crane Hoist

,

H-Type Rail electric winch hoist

,

electric wire hoist For Overhead Crane

Product Description
H-Type Rail CD1 Electric Wire Rope Crane Hoist For Overhead Crane In Mining
CD1 Electric Wire Rope Crane Hoist is a compact lifting solution designed for overhead cranes in mining operations. This versatile equipment can be mounted on single beam bridge cranes, gantry cranes, and jib cranes, offering lightweight, space-saving design with stable operation.
Applications
  • Widely used in factories, workshops, warehouses for direct material handling
  • Compatible with straight or curved I-beam tracks on single-girder cranes
  • Can be integrated with double-beam, gantry, and slewing cranes for various lifting needs
  • Features tight construction, easy operation, and broad applicability
Product Features
Overall Design
  • Compact and lightweight with reliable safety features
  • Universal components with strong compatibility
  • High lifting capacity with easy maintenance
  • Precise operation with steady performance
Lifting Motor
  • Tapered rotor braking asynchronous motor with high starting torque
  • 25% motor load keeping rate for reliable operation
  • Class B or F insulation with IP44/IP54 protection grade
Hoisting Speed Reducer
  • 3-grade fixed axle inclined gears structure for extended service life
  • Heat-treated alloy steel gears and shafts for superior strength
  • High-quality cast iron housing with rigorous assembly
  • Modular design for convenient installation and maintenance
Protection Features
  • Up/down limit protection with fire cutting stopper
  • Durable electrical components for reliable operation
  • Anti-collision top protection device
Wire Rope
  • GB/T 20118-2006 (6×37+1) standard lifting wire rope
  • High durability for long service life
Operation
  • Flexible control options: corded or wireless remote
Technical Specifications
Model Lifting Capacity (t) Lifting Height (m) Lifting Speed (m/min) Running Speed (m/min) Wire Rope Type Dia. of Wire Rope (mm) I Beam Track Type Working Duty Lifting Motor Power(kw) R.P.M (r/min) Power Supply
CD1-0.25 0.25 3-9 8 20 6×19 3.6 16-22b M3 0.4 1380 220-440V 50/60HZ 3Phase
CD1-0.5 0.5 6-12 8 20 6×37+1 4.8 16-28b M3 0.8 1380 220-440V 50/60HZ 3Phase
CD1-1 1 6-30 8 20 6×37+1 7.4 16-28b M3 1.5 1380 220-440V 50/60HZ 3Phase
CD1-2 2 6-30 8 20 6×37+1 11 20a-32c M3 3 1380 220-440V 50/60HZ 3Phase
CD1-3 3 6-30 8 20 6×37+1 13 20a-32c M3 4.5 1380 220-440V 50/60HZ 3Phase
CD1-5 5 6-30 8 20 6×37+1 15 25a-63c M3 7.5 1380 220-440V 50/60HZ 3Phase
CD1-10 10 6-30 7 20 6×37+1 15 25a-63c M3 13 1400 220-440V 50/60HZ 3Phase
CD1-16 16 6-30 3.5 20 6×37+1 15 45a-63c M2 13 1400 220-440V 50/60HZ 3Phase
CD1-20 20 6-30 3.5 20 6×37+1 20 50a-63c M2 13 1400 220-440V 50/60HZ 3Phase
Additional Notes
  • Standard lifting heights: 6, 9, 12, 18, 24, 30, and 36 meters
  • Speed options: single, double, or multi-speed with frequency inverters
  • Compatible with both H-type and I-type rails
  • Recommended rope reeving: 2/1, 4/2 or 4/1
  • Standard traveling speed: 20m/min (custom speeds available)
  • Standard double-girder rail gauge: 1200-2300mm

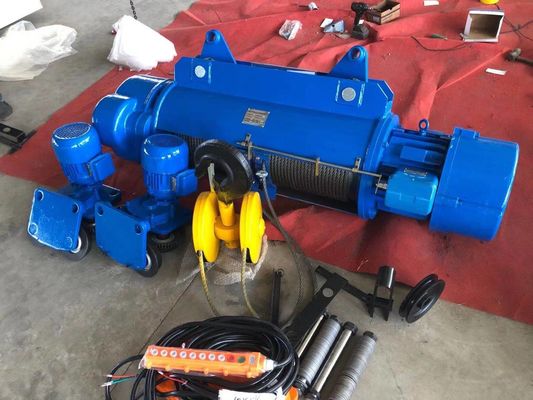

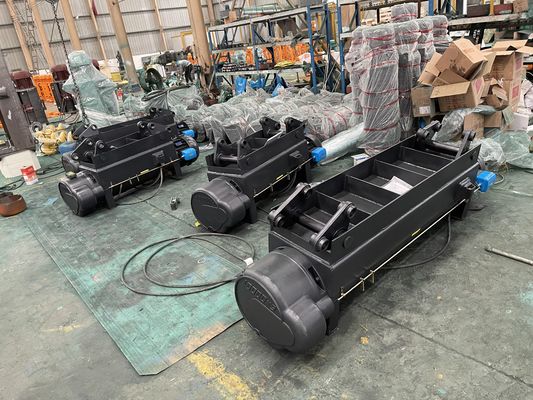

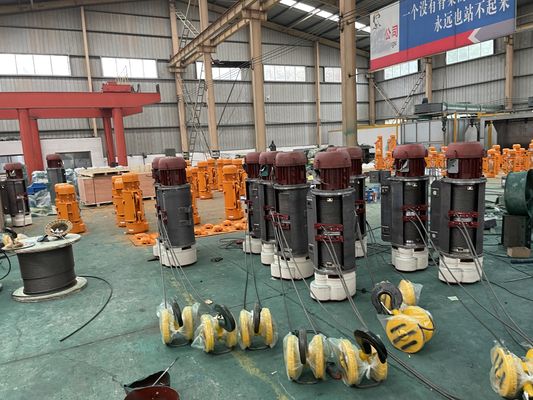

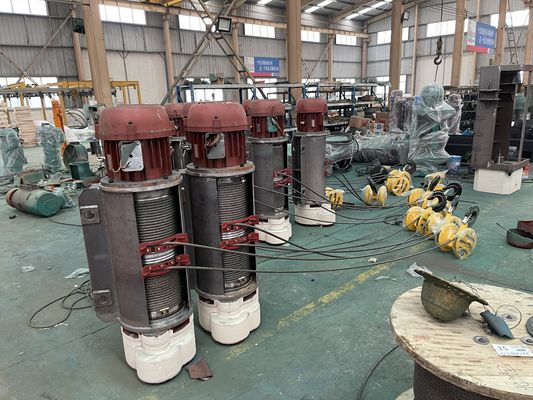

Product Gallery
CD1 Electric Wire Rope Hoist with 0.25-32Ton Capacity 8(0.8)m/min Lifting Speed and 20/30 m/min Travel Speed for Overhead Cranes 0 CD1 Electric Wire Rope Hoist with 0.25-32Ton Capacity 8(0.8)m/min Lifting Speed and 20/30 m/min Travel Speed for Overhead Cranes 1 CD1 Electric Wire Rope Hoist with 0.25-32Ton Capacity 8(0.8)m/min Lifting Speed and 20/30 m/min Travel Speed for Overhead Cranes 2
