CD1 Electric Wire Rope Hoist with 380V Control Voltage 150% Load Tested Hook and 6-30m Lifting Height

MOQ: 1 piece
Price: $300-$10000
Standard Packaging: Plywood Case
Delivery Period: 15 working day
Payment Method: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Capacity: 1000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC
Certification
CE ISO9001 manufacturing licence
Model Number
CD1/MD1
Name:
CD1 Electric Wire Rope Hoist
Capacity:
0.25T-30T
Lifting Height:
6/9/12/18m Or At Request
Beam:
Single Beam/double Beam
Lifting Speed:
8(0.8) M/min
Travel Speed:
20 M/min
Color:
As Per Request
Highlight:

Electric Wire Rope Hoist 20m/Min

,

30T Lifting Electric Wire Rope Hoist

,

20m/Min Travel Electric Wire Rope Hoist

Product Description
Double Girder Electric Wire Rope Hoist 20m/Min 30T Lifting
Product Overview
The CD1/MD1 model electric wire rope hoist features a compact structure, lightweight design, and easy operation. Suitable for use with various crane types including single-girder, double-girder, cantilever, and gantry cranes. The MD1 model offers double lifting speed for precision operations when the standard CD1 model is insufficient.
Key Features
  • Motor: Taper rotor motor with braking system, featuring high torque (2.4-3 times rated torque) for frequent operation
  • Gear Box: Specially treated gears with ball/roller bearings for smooth, low-friction operation
  • Wire Rope: Export-standard ropes with 6x safety factor, designed to prevent slippage
  • Rope Drum: Grooved seamless pipe drum with ball bearing support for smooth running
  • Control System: 380V, 36V or 24V safety voltage options with contactor box and limit switches
  • Rope Guide: Reinforced two-part design prevents rope uncoiling even when unloaded
  • Hook: Tested to 150% of full load capacity before assembly
Technical Specifications
Model Capacity (t) Height (m) Lift Speed (m/min) Run Speed (m/min) Rope Type Rope Dia (mm) I Beam Type Duty Motor Power (kw)
CD1-0.250.253-98206*193.616-22bM30.4
CD1-0.50.56-128206*37+14.816-28bM30.8
CD1-116-308206*37+17.416-28bM31.5
CD1-226-308206*37+11120a-32cM33
CD1-336-308206*37+11320a-32cM34.5
CD1-556-308206*37+11525a-63cM37.5
CD1-10106-307206*37+11525a-63cM313
CD1-16166-303.5206*37+11545a-63cM213
CD1-20206-303.5206*37+12050a-63cM213
Additional Notes
  • Standard lifting heights: 6, 9, 12, 18, 24, 30, and 36 meters
  • Speed options: single, double, or multi-speed with frequency inverters
  • Rail options: H-type or I-type rails available
  • Rope reeving recommendations: 2/1, 4/2 or 4/1 configurations
  • Custom travel speeds available: 12.5, 16, 25, 30, or 45m/min
  • Standard double-girder rail gauges: 1200, 1500, 1800, 2100, and 2300mm

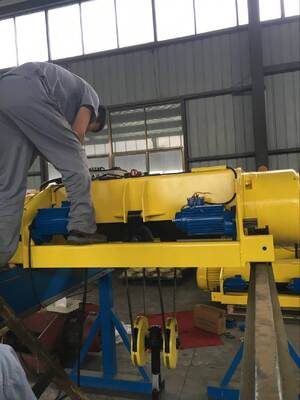

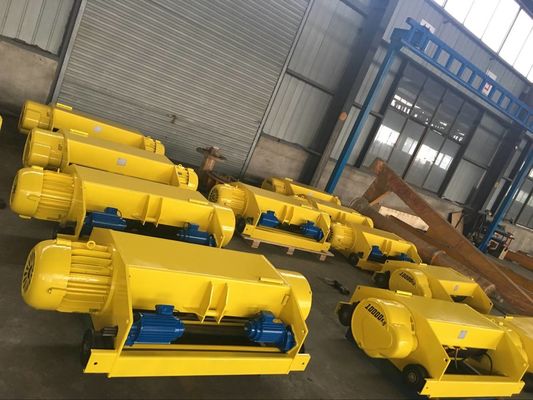

Factory Showcase
CD1 Electric Wire Rope Hoist with 380V Control Voltage 150% Load Tested Hook and 6-30m Lifting Height 0 CD1 Electric Wire Rope Hoist with 380V Control Voltage 150% Load Tested Hook and 6-30m Lifting Height 1 CD1 Electric Wire Rope Hoist with 380V Control Voltage 150% Load Tested Hook and 6-30m Lifting Height 2 CD1 Electric Wire Rope Hoist with 380V Control Voltage 150% Load Tested Hook and 6-30m Lifting Height 3 CD1 Electric Wire Rope Hoist with 380V Control Voltage 150% Load Tested Hook and 6-30m Lifting Height 4
