Yellow Color Crane End Carriage 1t to 20t with Customized Span for Single Girder Top Running
  • name
  • name
  • name
  • name

Yellow Color Crane End Carriage 1t to 20t with Customized Span for Single Girder Top Running

MOQ: 1 set
Price: 1000usd
Standard Packaging: Plywood case
Delivery Period: 15 to 20 working days
Payment Method: L/C,T/T,Western Union
Supply Capacity: 200 to 300 sets per week
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC
Certification
CE & ISO9001
Model Number
GL
Product Name:
Top Running End Carriage
Feature:
General Single Girder Top Running End Carriage
Crane Capacity:
1t To 20t
Motor Power:
0.3-1.5kw X2
Span:
Customized
Color:
As Per Request
Highlight:

Yellow Color Crane End Carriage

,

Crane End Carriage 1t

,

Milling Drilling Crane End Carriage

Product Description
Yellow Color Crane End Carriage 1t Single Girder Milling Drilling
Product Overview

European Model End Carriage in Yellow Color with capacity range from 1t to 20t and customizable span specifications.

  • Manufactured using rectangular steel tube modules
  • Features buffer motor drive and forged wheels
  • Utilizes milling for various customized machine applications
  • Completes opening, boring, milling, and drilling in one operation
  • Easy assembly by joining crane girder and end carriage
  • High cost performance for simplified crane manufacturing, installation, and maintenance
Complete Set Includes
  • Wheels
  • Motors
  • Main beam connecting plates
  • Main beam connecting bolts
  • Stamping plates
  • Polyurethane buffers

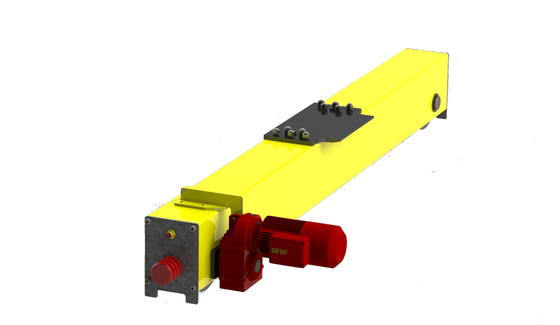

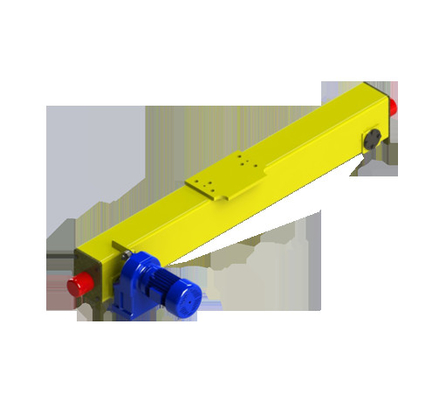

Yellow Color Crane End Carriage 1t to 20t with Customized Span for Single Girder Top Running 0 Yellow Color Crane End Carriage 1t to 20t with Customized Span for Single Girder Top Running 1
Technical Specifications
Model Crane Capacity Rectangular Steel Tube Wheel Size Motor Power S1 (mm) S2 (mm) W1 (mm) W2 (mm)
GL125-151t-7.5m150*150*6W125*600.3KW*215001300400500
GL125-201t-11.5m20001800400500
GL125-251t-16.5m25002300400500
GL160-152t/3t-7.5m150*200*8W160*700.4KW*215001200400500
GL160-202t/3t-11.5m20001700400500
GL160-252t/3t-16.5m25002200400500
GL160-302t/3t-22.5m30002700500600
GL160-352t/3t-28.5m35003200600700
GL200-205t-11.5m150*250*8W200*700.4KW*220001700400500
GL200-255t-16.5m25002200400500
GL200-305t-22.5m0.75KW*230002700500600
GL200-355t-28.5m35003200600700
GL250-2010t-11.5m200*250*8W250*800.75KW*220001600400500
GL250-25A10t-16.5m25002100500600
GL250-30A10t-22.5m1.1KW*230002600500600
GL250-35A10t-28.5m35003100700800
GL250-25B16t-16.5m200*300*8W250*801.1KW*225002100600700
GL250-30B16t-22.5m30002600700800
GL250-35B16t-28.5m1.5KW*235003100700800
GL315-3020t-16.5m200*400*8W315*901.5KW*230002500700800
GL315-3520t-22.5m35003000700800
Yellow Color Crane End Carriage 1t to 20t with Customized Span for Single Girder Top Running 2 Yellow Color Crane End Carriage 1t to 20t with Customized Span for Single Girder Top Running 3 Yellow Color Crane End Carriage 1t to 20t with Customized Span for Single Girder Top Running 4
