30T 80T Max Capacity Double Girder Electric Wire Rope Hoist with Nanjing Motor for Overhead Crane

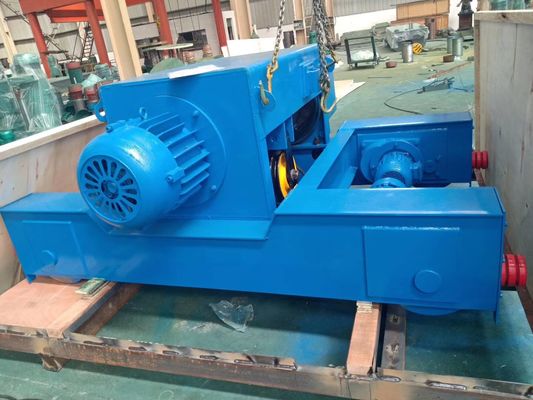

Large Image : 30T 80T Max Capacity Double Girder Electric Wire Rope Hoist with Nanjing Motor for Overhead Crane

Product Details:

Place of Origin:	China
Brand Name:	JCYC/OEM
Certification:	CE & ISO
Model Number:	CD1

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$300-$10000
Packaging Details:	Standard export plywood cases or at your request
Delivery Time:	15 to 20 working days
Payment Terms:	L/C,T/T,Western Union,D/A,D/P
Supply Ability:	300 sets per month

Contact Now

Detailed Product Description

Product Name:	Double Girder Electric Wire Rope Hoist	Type:	Double Girder
Motor:	Nanjing Motor	Application:	Double Girder Overhead Crane
Lifting Capacity:	1t - 80t	Lifting Height:	6m/9m/12m/15m/18m
Voltage:	380-440V/50/60hz
Highlight:	30T Double Girder Wire Rope Hoist , Warehouse Electric Wire Rope Hoist , 80t Lifting Wire Rope Hoist

30T Double Girder Electric Wire Rope Hoist For Overhead Crane

Product Description

30T Double Girder Electric Wire Rope Hoist For Overhead Crane in Warehouse

General Description

Wire rope electric hoist is a compact lifting equipment that can operate independently on steel or H-steel structures, or be integrated with various crane systems including single girder bridge cranes, double girder bridge cranes, gantry cranes, and jib cranes.

Our wire rope electric hoists are available in CD1 and MD1 types (light-duty) with capacities from 0.25 to 16 tons, and HC and HM types (heavy-duty) with capacities from 16 to 80 tons. CD1 models operate at 8 m/min while MD1 models offer dual speeds of 0.8/8 m/min.

Features and Benefits

Modular C-design with compact structure, low headroom, and stable operation
Safe working load capacities up to 80 tons
Standard M5 duty classification for hoisting and cross traveling
Dual hoisting speeds with variable frequency drive (VFD) for cross traveling
Control options include wired pendant or radio remote control
Multi-stage limit switches for hoisting and traveling
Overload limiter for enhanced safety
IP55 protection class and F insulation class

Hoist Components

Motor: Powers trolley travel and lifting, available from premium suppliers including Nanjing Motor
Gear Box: Round shape for ≤16t capacity, square shape for >16t capacity, heat-treated for durability
Rope Guide: Ensures orderly wire rope reeving, available in cast iron or steel
Remote Control: Wired or wireless options with waterproof protection
Hook: Forged in-house with 360° rotation and high bearing strength
Wire Rope: Standard or galvanized options from top Chinese brands like GSR
Safety Cutoff: Automatic power cutoff at maximum lift height

Technical Parameters

Parameter	Specification
Loading capacity	0.25 - 80t
Lifting height	3 - 50m (customizable)
Lifting speed	Single speed: 0.3 - 8m/min; VFD: 0.1 - 12.5m/min (customizable)
Working class	M3 - M6
Working temperature	-20°C to 40°C
Power supply	AC 3-Phase 220/230/380/400/415/440V 50/60Hz
Control voltage	DC 36/48V
Motor protection class	IP54/IP55
Control method	Ground handle or wireless remote control
Safety devices	Buffer, overload protection, power failure protection
Applications	Factories, workshops, warehouses, power stations, logistics
Colors	Yellow, red (customizable)

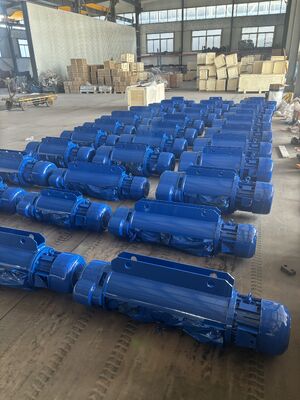

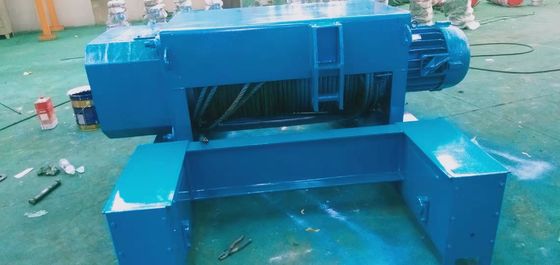

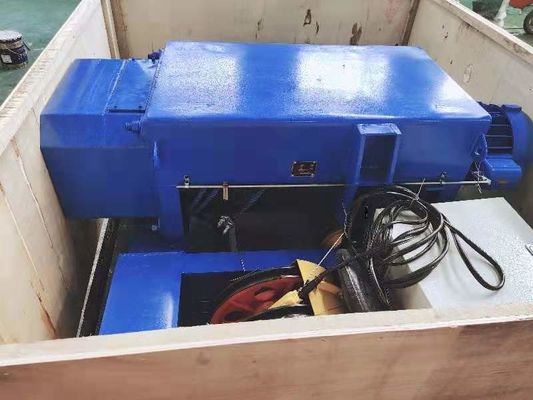

Product Images

Tag:

Contact Person: Mr. Sen

Tel: +86-23-68882138

Fax: 86-23-6888-3657
