Product Details:
Payment & Shipping Terms:
|
| Product Name: | Electric Chain Hoist With Electric Trolley | Capacity: | 0.3 Ton To 50 Ton |
|---|---|---|---|
| Lifting Height: | 3/6/9/12/18m Or At Request | Power Supply: | 220V-690V 3Phase 50/60Hz |
| Color: | Yellow/orange Or At Request | Model: | Fixed Type &running Type |
| High Light: | G80 Load Electric Chain Hoist,50T Material Lifting Electric Chain Hoist,12m Lifting Electric Chain Hoist |
||

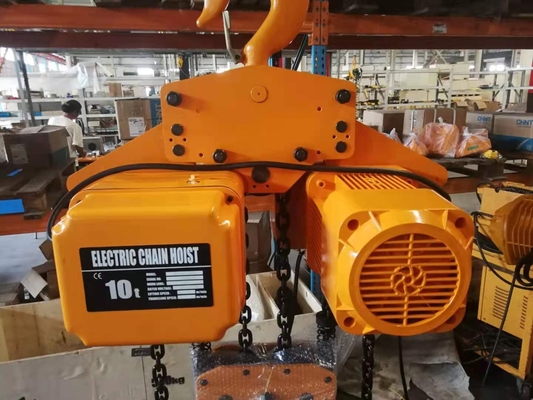

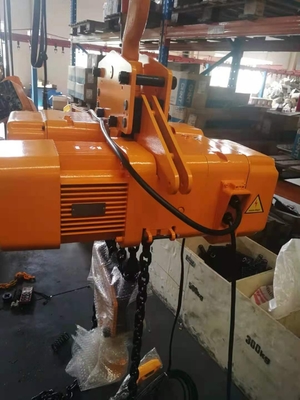

Electric G80 Load Chain Trolley 1t Chain Hoist Material Lifting High Strength
Brief Introduction:
Electric chain hoist are durable, compact, and quiet, operating smoothly to lift and move heavy loads. Electric chain hoists are easy to handle and easily serviceable, saving costs related to labor. Additionally, electric hoists reduce power consumption and the duration of time taken to complete any material lifting and handling application. We offer a large selection of electric chain hoists, from single phase chain hoist that are ideal chose for smaller machine shops requiring less voltage to spark resistanct and stainless stell options for lifting in cleanroom environment, and three phase chain hoist for large capacity requirements.We can supply you with the best electric hoist to meet your exact lifting needs.
Structure Features
The body chooses to use high strength tensile shell or die casting aluminum case, extrusion molding process thin-walled precision manufacturing, small size, low weight, high strength.
Seperate speed-adjusting system, seal the level 2 coaxial transmission speed gear mechanism with long-service oil bath lubrication system.
The electric hoist powder metallurgy clutch is used for overload protection device. The brake disc adopts dc magnetic field, braking torque, stable and rapid, the noise is small.
Custom capacity, lifting height and types for you choose. Please contact us for more details!
1. Shell
It is made of light aluminum alloy shell, light but hard. The cooling fin is especially designed to ensure quick heat dissipation with the rate up to 40% and continuous service. The integral enclosed structure is applicable to places like chemical plant and electroplate factory.
2. Support frame
The loading support frame consist of two steel plates, which is extremely sturdy.
3. Side magnetic braking device
The magnetic orce generator is the latest design which is featured for generating magnetic force. It allows instant brake as soon as the electric power is cut off. Thus the braking safety while loading is guaranteed.
4. Transformer
24V/36V/48V/10V transformer device. This device is used to prohibit unexpected accidents caused by electric leakage and guarantees the safe use while raining.
5. Limit switch
The limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety.
6. Chain
The chain shall adopt the imported FEC G80 ultra heat-treatable aluminum alloy chain. It can be safely used in poor environments such as rain, sea water and chemicals.
7. Hook
It is hot forging with perfect strength that is hard to break. The operation safety of the lower hook is ensured by its 360 degrees rotation and safety flap.
8. Electromagnetic contactor
Electromagnetic contactor can be used safely under high frequency.
9. Inverse phases sequence protecting device
It is the special electrical installation which controls the circuit not to work in case of wiring error in the power supply.
9. Control switch
Waterproof push button is applied. It is light and durable.
Product technical parameters:
| Model | Lifting Capacity(t) | Lifting Height(m) | Lifting Speed(m/min) | Running Speed(m/min) | Lifting Motor | Running Motor | I-Beam(mm) | |
Power(kw
|
Power Supply | Power(kw) | ||||||
| SY-A0.5-1 | 0.5 | 3-9 | 6.8 | 12.2 | 0.75 | 220-440V 50/60HZ 3Phase | 0.12 | 58-130 |
| SY-A1-1 | 1 | 3-9 | 6.6 | 10/20 | 1.5 | 0.4 | 80-160 | |
| SY-A1-2 | 1 | 3-9 | 3.4 | 10/20 | 0.75 | 0.4 | 80-160 | |
| SY-A2-1 | 2 | 3-9 | 6.6 | 10/20 | 3.0 | 0.4 | 82-178 | |
| SY-A2-2 | 2 | 3-9 | 3.3 | 10/20 | 1.5 | 0.4 | 82-178 | |
| SY-A3-1 | 3 | 3-9 | 5.4 | 10/20 | 3.0 | 0.4 | 100-180 | |
| SY-A3-2 | 3 | 3-9 | 4.4 | 11/21 | 3.0 | 0.4 | 100-178 | |
| SY-A3-3 | 3 | 3-9 | 2.4 | 11/21 | 1.5 | 0.4 | 110-178 | |
| SY-A5-2 | 5 | 3-9 | 2.7 | 10/20 | 3.0 | 0.75 | 110-180 | |
| SY-A7.5-3 | 7.5 | 3-9 | 1.8 | 10/20 | 3*2 | 0.75 | 120-180 | |
| SY-A10-4 | 10 | 3-9 | 2.7 | 10/20 | 3*2 | 0.75 | 150-202 | |
| SY-A15-6 | 15 | 3-9 | 1.9 | 10/20 | 3*2 | 0.75*2 | 150-220 | |
| SY-A20-8 | 20 | 3-9 | 1.4 | 10/20 | 3*2 | 0.75*2 | 150-220 | |
| SY-A25-8 | 25 | 3-9 | 1.1 | 10/20 | 3*2 | 0.75*2 | 150-220 | |
| SY-A30-10 | 30 | 3-9 | 0.9 | 10/20 | 3*2 | 0.75*2 | 150-220 | |
| SY-A35-16 | 35 | 3-9 | 0.7 | 10/20 | 3*2 | 0.75*2 | 150-220 | |
Factory show:
