Fixed Type Double Girder Electric Wire Rope Hoist with Modular C-Design Compact Structure and Stable Lifting Operation for Overhead Traveling Crane

MOQ: 1 set
Price: $300-$10000
Standard Packaging: Standard export plywood cases or at your request
Delivery Period: 15 to 20 working days
Payment Method: L/C,T/T,Western Union
Supply Capacity: 300 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC/OEM
Certification
CE & ISO
Model Number
CD1
Product Name:
Double Girder Electric Wire Rope Hoist
Type:
Double Girder
Application:
Double Girder Overhead Crane
Lifting Capacity:
1t - 80t
Lifting Height:
6m/9m/12m/15m/18m
Model:
Fixed Type
Highlight:

16t Lifting Wire Rope Hoist

,

18m Lifting Wire Rope Hoist

,

OEM VFD Drive Wire Rope Hoist

Product Description
Fixed Type Double Girder Wire Rope Hoist For Overhead Traveling Crane
Double Girder Electric Wire Rope Hoist is a versatile lifting solution designed for overhead traveling cranes. This compact equipment can operate independently on steel structures or integrate seamlessly with various crane types including single girder bridge cranes, double girder bridge cranes, gantry cranes, and jib cranes.
Product Overview
Our wire rope electric hoists are available in multiple configurations:
  • CD1/MD1 Series: Light-duty models with capacities from 0.25 to 16 tons (CD1: single speed 8 m/min, MD1: dual speed 0.8/8 m/min)
  • HC/HM Series: Heavy-duty models with capacities from 16 to 80 tons (HC: single speed, HM: dual speed)
Key Features & Benefits
  • Modular C-design with compact structure and low headroom
  • Stable lifting operation with precise positioning
  • Safe working load capacities up to 80 tons
  • Standard M5 duty classification for hoisting and cross traveling
  • Dual hoisting speeds with optional VFD for cross traveling
  • Flexible control options: wired pendant or radio remote
  • Comprehensive safety features including overload limiter and multi-stage limit switches
  • Robust protection: IP55 standard, F-class insulation
Component Specifications
  • Motor: High-quality Nanjing brand motors for trolley travel and lifting
  • Gear Box: Heat-treated gears in round (≤16t) or square (>16t) configurations
  • Rope Guide: Cast iron or steel options for orderly wire rope reeving
  • Control System: Waterproof wired or wireless remote options
  • Hook: Forged 360° rotating hooks with high bearing strength
  • Wire Rope: Premium Chinese GSR brand, available in standard or galvanized
  • Safety Cutoff: Automatic power cutoff at maximum lift height
Technical Parameters
Parameter Specification
Loading Capacity 0.25 - 80t
Lifting Height 3 - 50m (customizable)
Lifting Speed Single speed: 0.3-8m/min
VFD speed: 0.1-12.5m/min (customizable)
Working Class M3 - M6
Operating Temperature -20°C to 40°C
Power Supply AC 3-Phase 220/230/380/400/415/440V 50/60Hz
Control Voltage DC 36/48V
Motor Protection IP54/IP55
Control Methods Ground handle or wireless remote
Safety Features Buffer, overload protection, power failure protection
Applications Factories, workshops, warehouses, power stations, logistics
Color Options Yellow, red, or customized

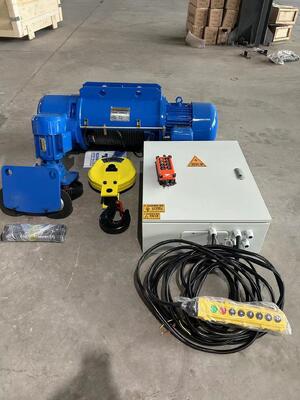

Product Images
Fixed Type Double Girder Electric Wire Rope Hoist with Modular C-Design Compact Structure and Stable Lifting Operation for Overhead Traveling Crane 0 Fixed Type Double Girder Electric Wire Rope Hoist with Modular C-Design Compact Structure and Stable Lifting Operation for Overhead Traveling Crane 1
