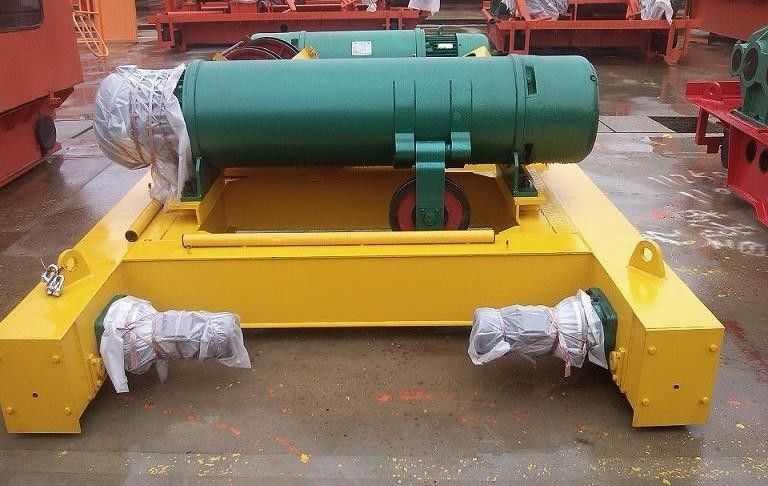

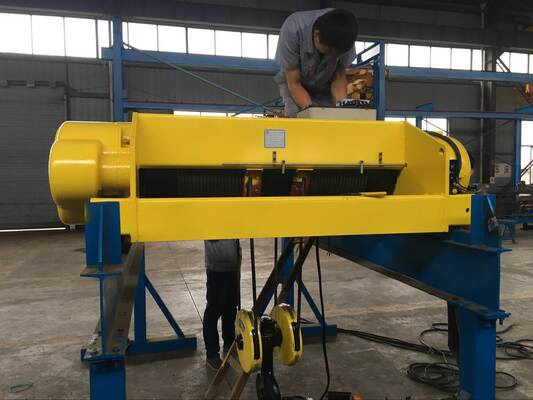

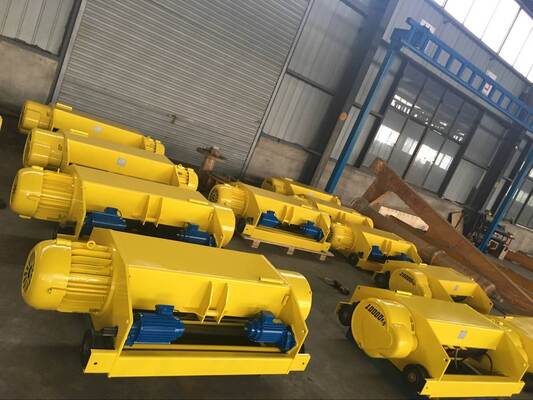

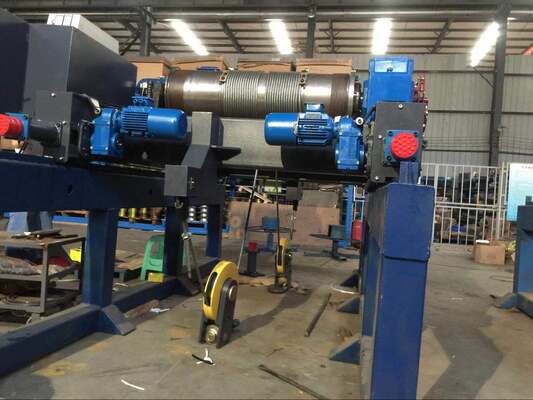

Double Beam Electric Cable Hoist For Overhead Traveling Crane

Wire rope electric hoist is a kind of small-sized lifting equipment, which can be installed independently working in steel or H-steel, but also with the single girder bridge crane, hoist double girder bridge crane, gantry crane and hoist jib crane hoisting equipment.

Wire rope electric hoist main have CD1 type and MD1 type;HC type and HM type wire rope electric hoist. Normally, CD1 type wire rope electric hoist working speed is 8 m/min; MD1 type wire rope electric hoist working speed is 0.8/ 8 m/min.CD1 and MD1 type wire rope electric hoist lifting capacity from 0.25ton to 16ton.CD and MD wire rope electric hoist is a light lifting equipments.

HC type and HM type wire rope electric hoist is a heavy duty lifting equipments. HC type electric hoist working speed is single speed, HM type electric hoist working speed is double speed; HC and HM type wire rope electric hoist lifting capacity from 16ton to 80ton.

Quality. Efficiency. Durability. Cost-effective.

Different industries require specific hoisting solutions. JCYC wire rope electric hoist is the ideal hoisting product for your applications up to 80 tons. The hoist ranging from the basic configuration to equipment of high-tech advanced characteristics. All key mechanical components are designed, manufactured, assembled and tested in the JCYC and subsidiary factory by very experienced crane specialists, ensuring the highest quality and durability of the hoist.

• modular C-design, has compact structure, low headroom, stable lifting operation, accurate positioning
• Safe working load capacities up to 80 tons
• Standard hoisting and cross travelling duty is M5.
• Standard dual hoisting speeds, variable frequency drive(VFD) for cross travelling.
• Control method by wire pendant connection or radio remote control.
• One-stage or two-stage hoisting and travelling limit switch elements.
• Overload Limiter equipped to avoid overload and ensure safety.
• Standard protection class IP55, insulation class F.

1. Motor is usting for hoist trolley travel and hoist lifting, our supplier brand is Nanjing motor, Nanjing special motor etc. or as your requirement.
2. Gear box is usting for hoist lifting, under 16ton capacity always use round shape gear box, more than 16ton capacity always adopt square shape. It is made by our factory, all the gears inside through heat treatment to keep its long using life.
3. Rope guide can arrange the wire rope to reeving on drum orderly, to prevent the wire rope from winding disorderly. We have cast iron or steel rope guide.
4. Remote control have wired type and wireless type, it can be choosed by your requirement, its features are with waterproof protection, light and durable.
5. Hook is the sling for hoist, we have our own forge workshop, to keep the quality of forge hook, with 360 degree rotation and high bearing strength.
6. We have normal wire rope and galvanized type wire rope, mainly adopt Chinese top quality wire rope brand such as GSR.
7. It can keep the hoist lift within suitable lift height, when the goods lift to max height, the power will be cutted automatically.
