IP55 Modular Double Girder Overhead Crane Hoist 80t Lifting

MOQ: 1 set
Price: $5000-$30000
Standard Packaging: Standard export plywood cases or at your request
Delivery Period: 15 to 20 working days
Payment Method: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Capacity: 300 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC/OEM
Certification
CE & ISO
Model Number
JCYC-SHSL-A/B
Product Name:
European Electric Wire Rope Hoist
Motor:
European ABM/SEW Motor
Contactor:
Schneider Brand
Application:
Double Girder Overhead Crane
Lifting Capacity:
3.2t - 80t
Lifting Height:
6m/9m/12m/15m/18m
Protection Class:
IP55
Highlight:

IP55 Modular Overhead Crane Hoist

,

80t Lifting Overhead Crane Hoist

,

integrated Overhead Crane Hoist

Product Description
Modular design European Standard Electric Hoist Double Girder ABM Motor
Brief overview

Compared with the traditional Foot Mounted Hoist, the structure of European type hoist is more reasonable and the technology is more advanced. So this type of hoists is more and more widely used and will be the development tendency. In order to stand out in the group of electric wire rope hoist suppliers, we constantly improve the technology to produce high level hoist to be aligned with the world.

Advantages
  • Modular design, can be flexibly combined into different lifting tonnage lifting speed and work hierarchy
  • European standard hoist trolley, It employs motor of hoisting mechanism and reducer imported from Germany.
  • The integrated and compact design of hoisting motor, reducer, reel and limit switch saves space for the user.
  • Standardization, user-friendly design in improving operating performance while greatly reducing maintenance costs
  • Smooth design helical gear surface hardening and grinding process, drive more efficient
Technical parameters
Capacity ton Lifting height m Lifting speed m/min Lifting motor kw Traveling speed m/min Traveling motor kw Lifting System FEM/ISO Traveling System FEM/ISO Trolley Rail Gauge mm
3.2t 6/9/12/15/18 5/0.8 3.2/0.42 5/20 0.25x2 2M M5 2M M5 1000-1700
5t 6/9/12/15/18 5/0.8 6.1/1 5/20 0.37x2 2M M5 2M M5 1000-1700
6.3t 6/9/12/15/18 5/0.8 6.1/1 5/20 0.37x2 2M M5 2M M5 1000-1700
8t 6/9/12/15/18 5/0.8 9.5/1.5 5/20 0.37x2 2M M5 2M M5 1000-2000
10t 6/9/12/15/18 5/0.8 9.5/1.5 5/20 0.37x2 2M M5 2M M5 1000-2000
12.5t 6/9/12/15/18 5/0.8 12.5/2 5/20 0.55x2 1AM M4 2M M5 1000-2000
16t 6/9/12/15/18 4/0.6 16/2.6 5/20 0.55x2 2M M5 2M M5 1400-2400
20t 6/9/12/15/18 4/0.6 16/2.6 5/20 0.55x2 1Am M4 2M M5 1400-2400
25t 6/9/12/15/18 3.3/0.8 20/5 5/20 0.75x2 3M M6 2M M5 1700-3100
32t 6/9/12/15/18 3.3/0.8 20/5 5/20 1.1x2 2M M5 2M M5 1700-3100
40t 6/9/12/15/18 0-4 38 5/20 1.5x2 1Am M4 2M M5 1700-3100
50t 6/9/12/15/18 0-3 38 5/20 1.5x2 2M M5 2M M5 1700-3100
50t 6/9/12/15/18 0-3 38 5/20 1.5x2 2M M5 2M M5 2000-4200

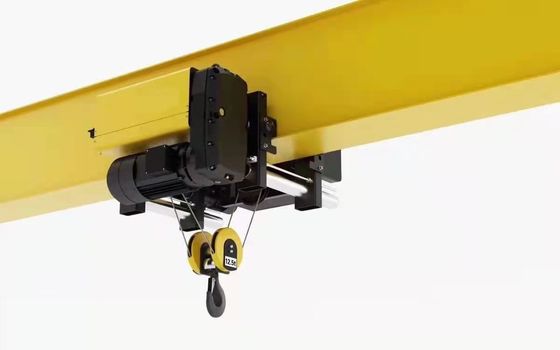

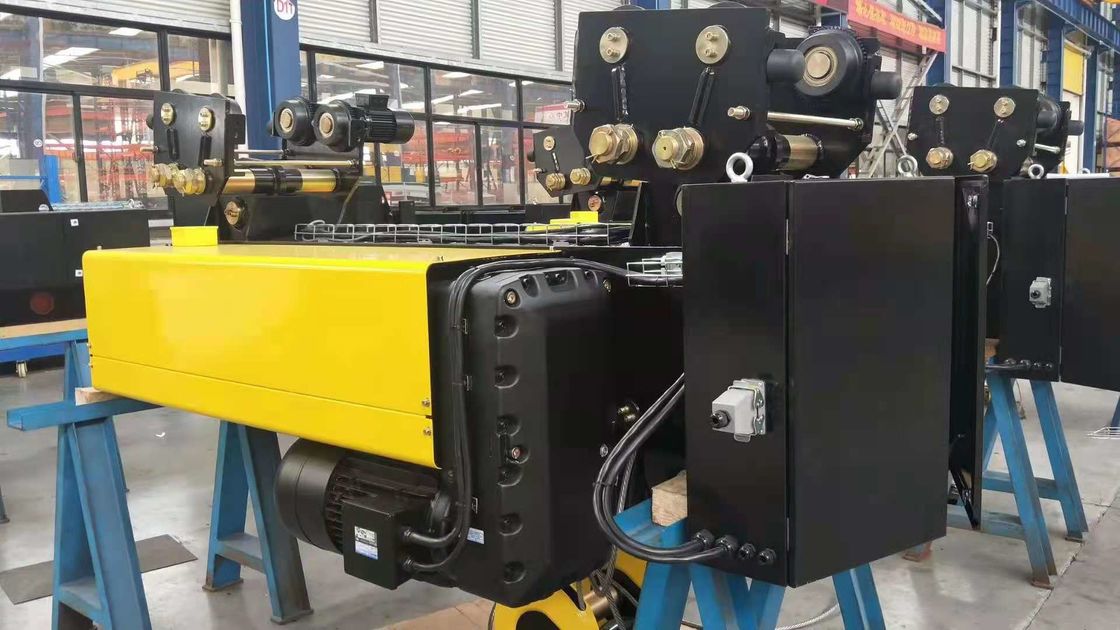

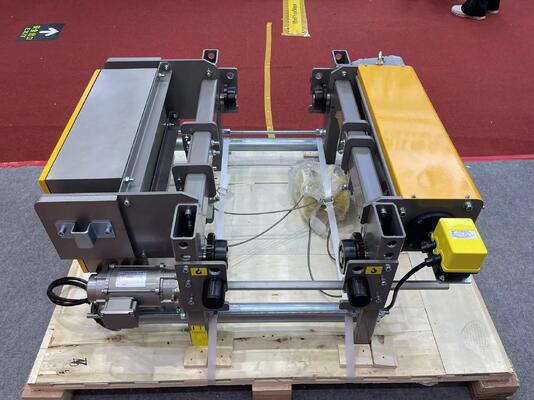

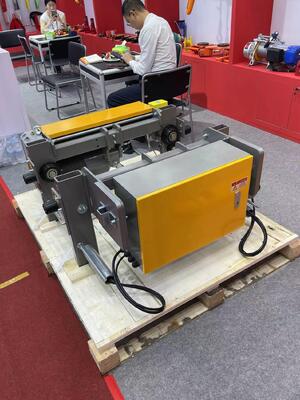

Product show

IP55 Modular Double Girder Overhead Crane Hoist 80t Lifting 0

IP55 Modular Double Girder Overhead Crane Hoist 80t Lifting 1IP55 Modular Double Girder Overhead Crane Hoist 80t Lifting 2IP55 Modular Double Girder Overhead Crane Hoist 80t Lifting 3
