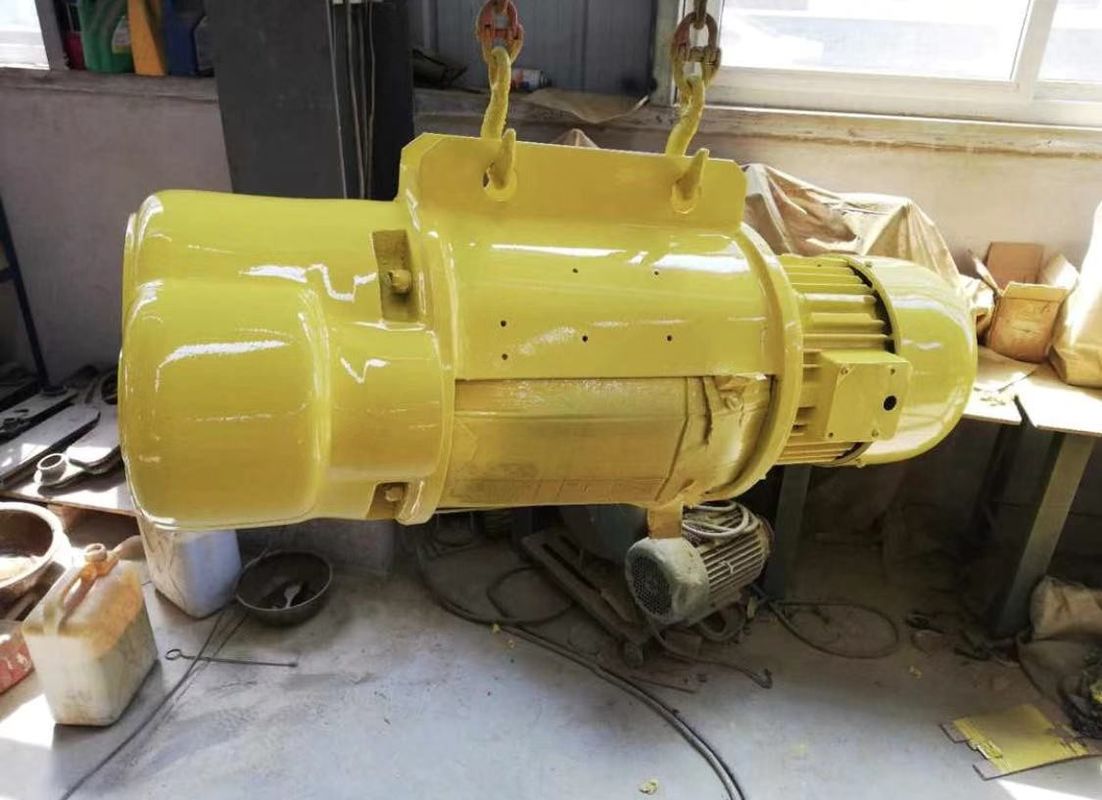

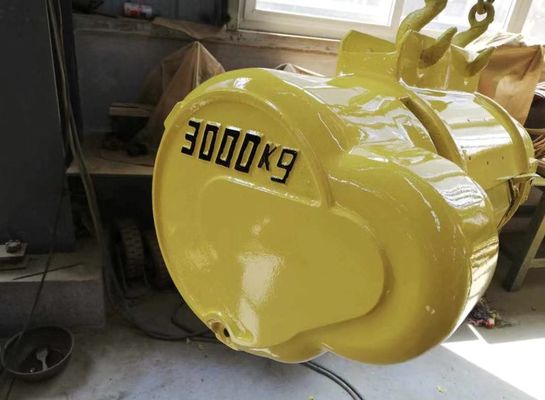

Wireless Remote Control Electric Wire Rope Hoist 3T 8m/Min

Wireless Remote Control Electric Wire Rope Hoist 3T 8m/Min
Wireless Remote Control Electric Wire Rope Hoist 3T 8m/Min
video play

Large Image :  Wireless Remote Control Electric Wire Rope Hoist 3T 8m/Min

Product Details:
Place of Origin: China
Brand Name: JCYC
Certification: CE ISO9001 manufacturing licence
Model Number: CD1/MD1
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable

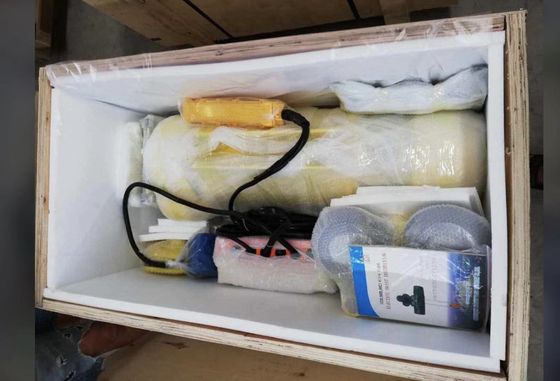

Packaging Details: Plywood Case
Delivery Time: 30 working day
Supply Ability: 1000pcs per month
Detailed Product Description
Name: Electric Wire Rope Hoist 3 Ton With Wireless Remote Control Capacity: 3Ton
Lifting Speed: 8(0.8)m/min Girder: Single Girder
Rail Type: I-Type, H-Type Rail Travel Speed: 20/30 M/min
High Light:

Electric Wire Rope Hoist 3T

,

8m/Min Lifting Wire Rope Hoist

,

Workshops Electric Wire Rope Hoist

Electric Wire Rope Hoist 3 Ton with Wireless Remote Control





Brief overview



The electric wire rope hoist CD1/MD1 model have features of compact structure, light weight, small size and easy operation. It can be used not only on the overhead rails, but also be used in conjunction with many types of electric or manual cranes such as the single-grider crane, the double-grider crane, the cantilever crane and the gantry cranes etc. The eletric hoist model MD1 with double lifting speed which should be used in case where the hoist model CD1 can not meet the requirements for fine abjustments during recision operations.



Applications



1, extensively used in factories, workshops, warehouses and many other occasions to hoist materials directly,

2, installed on the straight or curve I-steel beam of Single-girder Cranes to lift goods.

3, It can also be used together with Electric Hoist Double-beam, gantry crane and slewing cranes to hoist different items and so on.

4, It has so many appllication usages just for its advantages, such as: tight structure, convenient operation, light weight, wide common use and so on.



Main characteristics



* Model CD1, MD1 electric wire rope hoist is a small sized lifting equipment, which can be mounted on single beam, bridge, gantry and arm crane.


* With slight modification, it can also be used as a winch.

* It is widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.

* Model CD1 electric hoist has only normal speed, which can satisfy normal application.

* Model MD1 electric hoist provides two speeds: normal speed and low speed. At a low speed, it can do precise loading and unloading, mounding of sand box, maintenance of machine tools. etc.



Main parts details



> Motor: Hoist Motor is a taper type rotor motor with braking; it is one of the best quality motors, which has bigg er torque, so it can be adapted to moving frequently, the Maximum torque is 2.4-3 times than the rated torque.

> Gear Box: Hoist Gear Box has specially treated gears for high wear resistance. Each Geared Shaft assembly is supported on ball or roller bearings, to ensure smooth, low-friction operation.

> Wire Rope: Hoisting ropes comply with the exporting standards. The leading rope taken by the drum does not slip sideways when slack. The factor of safety, on the nominal breaking strength of the rope is six.

> Rope Drum: Grooved hoist Drum, seamless pipe of adequate length to be wounded in one layer and to provid eproper
support for the rope to minimize abrasive wear is provided. Drum Shaft resolves on Ball Bearings for ensuring smooth running.



> Electric apparatus controlling system: Model CD1 and MD1 hoist is composed of the contactor box, controlling switch, cut-off limiter, the working voltage of controlling switch is 380V, 36V or 24V(safety voltage).

> Rope Guide: Rope Guide is in two halves, ensuring easy accessibility. It encircles the drum completely so that the rope may not uncoil even when the Hoist is in unloaded condition. The rope guides of our company is thicken and dilated, so that it is not easy to be damaged.

> Hook:The Hook Block is tested to 150 % of full load before assembly.



Technical parameters



Model Lifting Capacity (t) Lifting Height (m) Lifting Speed (m/min) Running Speed (m/min) Wire Rope Type Dia.of Wire Rope (mm) I Beam Track Type Working Duty Lifting Motor
Power(kw) R.P.M ( r/min) Power Supply
CD1-0.25 0.25 3-9 8 20 6*19 3.6 16-22b M3 0.4 1380 220-440V 50/60HZ 3Phase
CD1-0.5 0.5 6-12 8 20 6*37+1 4.8 16-28b M3 0.8 1380
CD1-1 1 6-30 8 20 6*37+1 7.4 16-28b M3 1.5 1380
CD1-2 2 6-30 8 20 6*37+1 11 20a-32c M3 3 1380
CD1-3 3 6-30 8 20 6*37+1 13 20a-32c M3 4.5 1380
CD1-5 5 6-30 8 20 6*37+1 15 25a-63c M3 7.5 1380
CD1-10 10 6-30 7 20 6*37+1 15 25a-63c M3 13 1400
CD1-16 16 6-30 3.5 20 6*37+1 15 45a-63c M2 13 1400
CD1-20 20 6-30 3.5 20 6*37+1 20 50a-63c M2 13 1400


Notes

A. The standard lifting height is 6, 9, 12, 18, 24, 30 and 36 meters.

B. The lifting speed can be single speed or double speed, even multi-speed with frequency inverters.
C. The suitable rail for the low-headroom hoist is H-type rail, and I-type rail is also available..
D. The recommended rope reeving of this kind of hoist is 2/1, 4/2 or 4/1.
E. The normal traveling speed is 20m/min, and 12.5, 16, 25, 30, 45m/min by request.
F. The normal rail gauge of the double-girder is 1200, 1500, 1800, 2100 and 2300mm.

Company brief introduction

Chongqing Shanyan Crane Machinery Co., Ltd. Has been established since 1991, and always has implemented the business policy of "quality priority, customer foremost, reputation first, and sincere service". With high-quality products, reasonable prices, timely delivery, and good after-sales service has won the trust and support of the majority of users. With a better technical team and advanced scientific management, the company's sales scale is constantly expanding. Our products are not only sold well in 28 provinces and cities domestically, but also established good business contacts with foreign customers worldwide. Our company has gradually formed Combining business and trade, the one-stop business model of production, supply, sales and service, which can provide users with convenient and efficient full-process services, which won praise from all over the world with high-quality products.

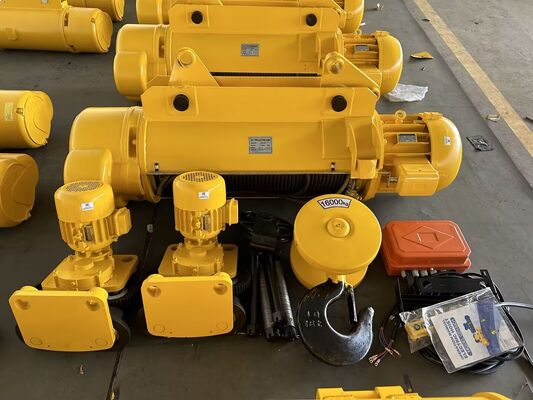

Factory show



Wireless Remote Control Electric Wire Rope Hoist 3T 8m/Min 0

Wireless Remote Control Electric Wire Rope Hoist 3T 8m/Min 1

Wireless Remote Control Electric Wire Rope Hoist 3T 8m/Min 2
