Single Girder 3T Lifting Electric Wire Rope Hoist For Construction

Large Image : Single Girder 3T Lifting Electric Wire Rope Hoist For Construction

Product Details:

Place of Origin:	China
Brand Name:	JCYC
Certification:	CE ISO9001 manufacturing licence
Model Number:	CD1/MD1

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$1000-$10000
Packaging Details:	Plywood Case
Delivery Time:	30 working day
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Name:	Electric Wire Rope Hoist For Construction	Capacity:	10Ton
Lifting Speed:	8(0.8)m/min	Girder:	Single Girder / Double Girder
Rail Type:	I-Type, H-Type Rail	Travel Speed:	20/30 M/min
Highlight:	3T Lifting Wire Rope Hoist , 8m/Min Lifting Electric Lifting Hoist , Overhead Wire Rope Hoist

Lifting Tools 3 Ton Electric Wire Rope Hoist for Construction

Brief overview

The electric wire rope hoist CD1/MD1 model have features of compact structure, light weight, small size and easy operation. It can be used not only on the overhead rails, but also be used in conjunction with many types of electric or manual cranes such as the single-grider crane, the double-grider crane, the cantilever crane and the gantry cranes etc. The eletric hoist model MD1 with double lifting speed which should be used in case where the hoist model CD1 can not meet the requirements for fine abjustments during recision operations.

Applications Filed

extensively used in factories, workshops, warehouses and many other occasions to hoist materials directly,
installed on the straight or curve I-steel beam of Single-girder Cranes to lift goods.
It can also be used together with Electric Hoist Double-beam, gantry crane and slewing cranes to hoist different items and so on.
It has so many appllication usages just for its advantages, such as: tight structure, convenient operation, light weight, wide common use and so on.

CD1 Electric Hoist Overall

Compact, light weight, safe and reliable.
Components and parts apply used universally,strong compatibility.
High lifting capacity , easy maintenance.
Easy operation, accurate lifting steady operation.

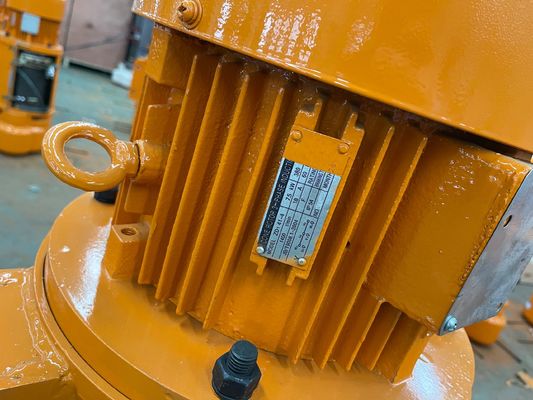

CD1 Electric Hoist Lifting Motor

To use higher starting torque tapered rotor braking asynchronous motor. No need plus brake again, Motor load keeping rate is 25%, Safe and reliable. Class B or Class F insulation,Motor protection grade IP44 / IP54.

CD1 Electric Hoist Hoisting Speed Reducer

it adopts 3-GRADE fixed axle inclined gears structure,long life. The gears and gear shaft made by the alloy steel of heating treatment, high strength Box, box cover made by high quality cast iron, Assembly rigor, good seal The gear reducer become to be a single part, loading and unloading is extremely convenient Reliable drive, high mechanical efficiency.

CD1 Electric Hoist Protection Function

It has the device up and down proceeding to protect the fire cutting limiting stopper.
To ensure the safe operation of the electric hoist, the electrical components have long life, use reliable
It also has device to prevente clashing the top.

CD1 Electric Hoist Wire Rope

To adopt GB / T 20118-2006 (6 * 37 + 1) lifting wire rope, to ensure durable using.

CD1 Electric Hoist Operation Device

Flexible operation, it has manipulation corded and wireless remote control two ways.

Technical configuration

Model	Lifting Capacity (t)	Lifting Height (m)	Lifting Speed (m/min)	Running Speed (m/min)	Wire Rope Type	Dia.of Wire Rope (mm)	I Beam Track Type	Working Duty	Lifting Motor
Model	Lifting Capacity (t)	Lifting Height (m)	Lifting Speed (m/min)	Running Speed (m/min)	Wire Rope Type	Dia.of Wire Rope (mm)	I Beam Track Type	Working Duty	Power(kw)	R.P.M ( r/min)	Power Supply
CD1-0.25	0.25	3-9	8	20	6*19	3.6	16-22b	M3	0.4	1380	220-440V 50/60HZ 3Phase
CD1-0.5	0.5	6-12	8	20	6*37+1	4.8	16-28b	M3	0.8	1380
CD1-1	1	6-30	8	20	6*37+1	7.4	16-28b	M3	1.5	1380
CD1-2	2	6-30	8	20	6*37+1	11	20a-32c	M3	3	1380
CD1-3	3	6-30	8	20	6*37+1	13	20a-32c	M3	4.5	1380
CD1-5	5	6-30	8	20	6*37+1	15	25a-63c	M3	7.5	1380
CD1-10	10	6-30	7	20	6*37+1	15	25a-63c	M3	13	1400
CD1-16	16	6-30	3.5	20	6*37+1	15	45a-63c	M2	13	1400
CD1-20	20	6-30	3.5	20	6*37+1	20	50a-63c	M2	13	1400

Notes

A. The standard lifting height is 6, 9, 12, 18, 24, 30 and 36 meters.
B. The lifting speed can be single speed or double speed, even multi-speed with frequency inverters.
C. The suitable rail for the low-headroom hoist is H-type rail, and I-type rail is also available..
D. The recommended rope reeving of this kind of hoist is 2/1, 4/2 or 4/1.
E. The normal traveling speed is 20m/min, and 12.5, 16, 25, 30, 45m/min by request.
F. The normal rail gauge of the double-girder is 1200, 1500, 1800, 2100 and 2300mm.

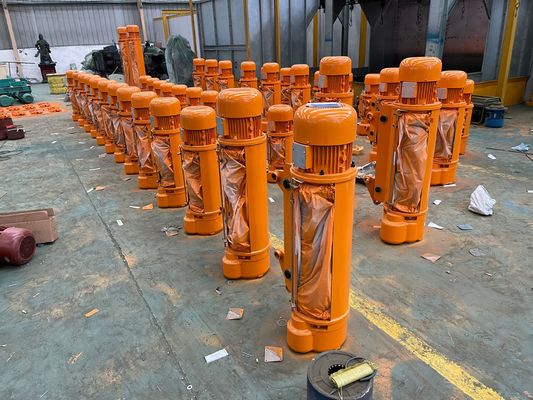

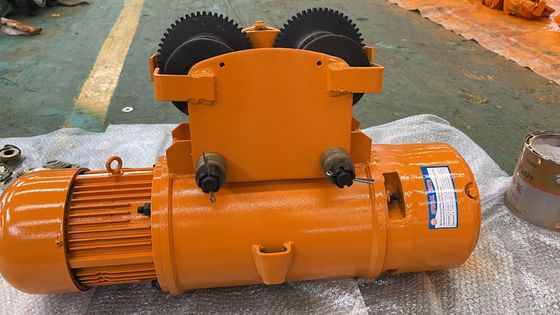

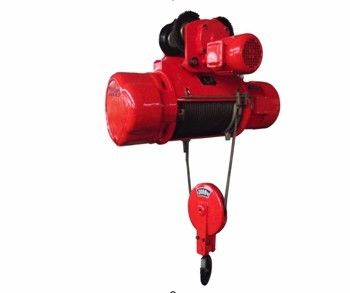

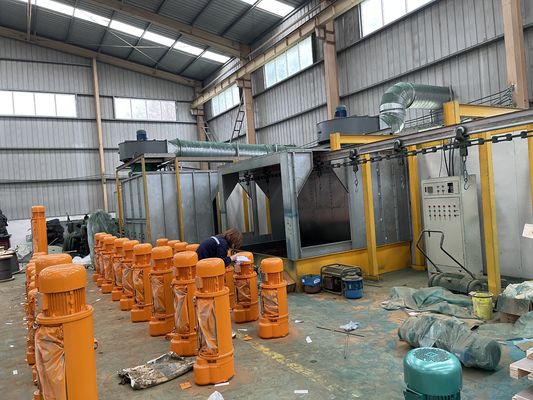

Product show
