Product Details:
Payment & Shipping Terms:
|
| Product Name: | Electric Wire Rope Hoist | Capacity: | 1t-20T |
|---|---|---|---|
| Lifting Height: | 6m-36m | Lifting Speed: | 5/0.8m/min |
| Traveling Speed: | 5-20 M/min | Motor: | ABM / SEW |
| Voltage: | 220v-440v,50HZ/60HZ | ||
| High Light: | Single Girder Wire Rope Hoist,Electric Wire Rope Hoist 20T,20m/Min Traveling Wire Rope Hoist |
||

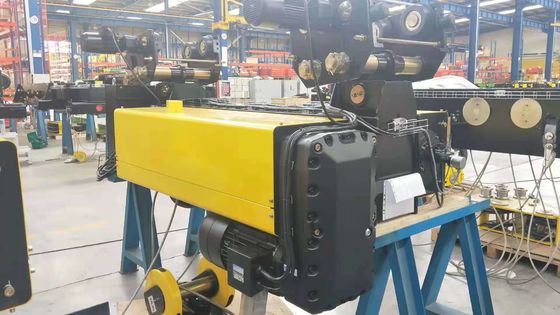

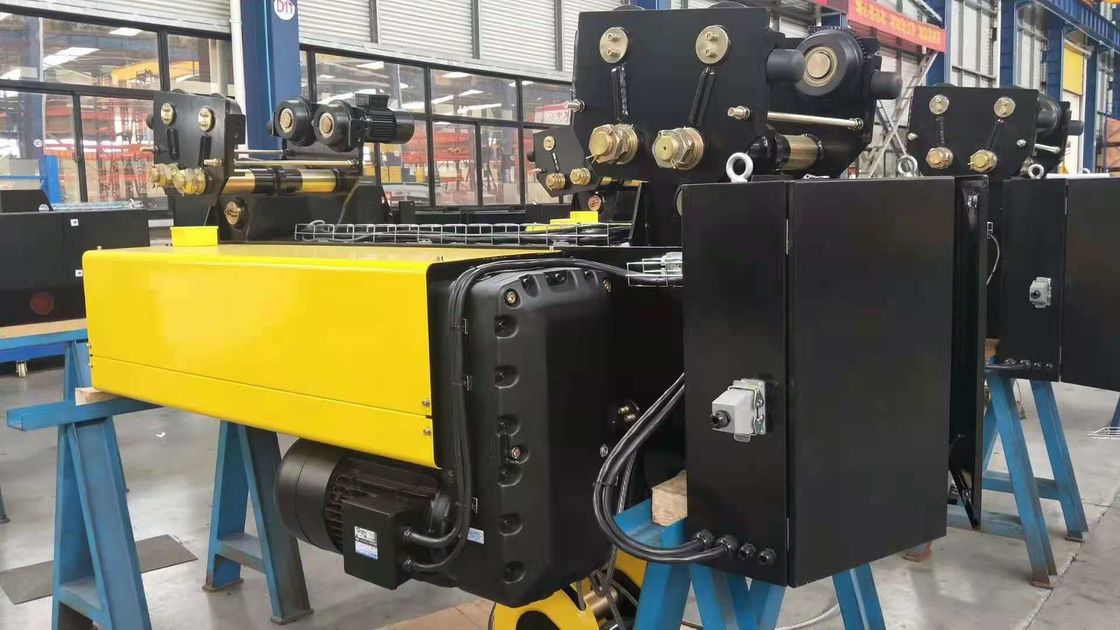

European Model Single Girder Electric Wire Rope Hoist with ABM SEW Motor

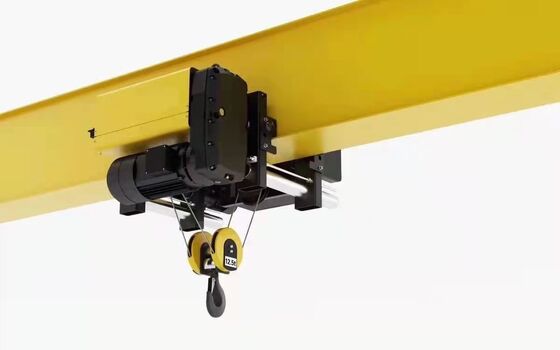

SHSL-A Model, Low Headroom Electric Wire Rope Hoist
Low-headroom design, Enclosed in-line gear train with oil bath lubrication, Mechanical load brake and Electric motor brake
Widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.
Features and advantages:
For European style electric wire rope hoist, it has many unique advantages. Based on bringing in and assimilating foreign advanced technology, this type of crane takes modular design theories as guidance, uses modern computer technology as means, introduces optimized and reliable design methods, which is new type of crane made by employing import configuration, new material and technology has features in light-weight, generalizing, energy-conservation and environmental protection, maintenance free and high technology content.
Product Technical Parameters:
| Capacity(kg) | FEM | ISO | Height(m) | Speed(m/min) | Trolley Speed(m/min) | H Size(mm) | C Size(mm) | |
| 1000 | 4m | M7 | 6/9/12 | 0.8/5.0 | 5~20 | 232 | 500 | |
| 1250 | 3m | M6 | 6/9/12 | 0.8/5.0 | 5~20 | 232 | 500 | |
| 1600 | 3m | M6 | 6/9/12 | 0.8/5.0 | 5~20 | 232 | 500 | |
| 1600 | 2m | M5 | 6/9/12/18 | 1.6/10.0 | 5~20 | 254 | 660 | |
| 2000 | 2m | M5 | 6/9/12 | 0.8/5.0 | 5~20 | 232 | 500 | |
| 2000 | 3m | M6 | 6/9/12/18 | 1.6/10.0 | 5~20 | 254 | 660 | |
| 2500 | 3m | M6 | 6/9/12 | 0.8/5.0 | 5~20 | 232 | 500 | |
| 2500 | 2m | M5 | 6/9/12/18 | 1.6/10.0 | 5~20 | 254 | 660 | |
| 3200 | 2m | M5 | 6/9/12 | 0.8/5.0 | 5~20 | 232 | 500 | |
| 3200 | 1Am | M4 | 6/9/12/18 | 1.6/10.0 | 5~20 | 254 | 660 | |
| 5000 | 2m | M5 | 6/9/12/18 | 0.8/5.0 | 5~20 | 321 | 590 | |
| 5000 | 2m | M5 | 6/9/12/18 | 1.6/10.0 | 5~20 | 254 | 790 | |
| 6300 | 1Am | M4 | 6/9/12/18 | 0.8/5.0 | 5~20 | 321 | 590 | |
| 8000 | 3m | M6 | 6/9/12/18 | 0.8/5.0 | 5~20 | 254 | 740 | |
| 10000 | 2m | M6 | 6/9/12/18 | 0.8/5.0 | 5~20 | 321 | 740 | |
| 10000 | 3m | M4 | 6/9/12/18 | 0.6/4.0 | 5~20 | 364 | 850 | |
| 12500 | 1Am | M5 | 6/9/12/18 | 0.8/5.0 | 5~20 | 321 | 740 | |
| 12500 | 2m | M5 | 6/9/12/18 | 0.6/4.0 | 5~20 | 404 | 850 | |
| 16000 | 2m | M4 | 6/9/12/18 | 0.6/4.0 | 5~20 | 404 | 850 | |
| 20000 | 1Am | M5 | 6/9/12/18 | 0.6/4.0 | 5~20 | 404 | 850 | |
Hot sale cutomized design:

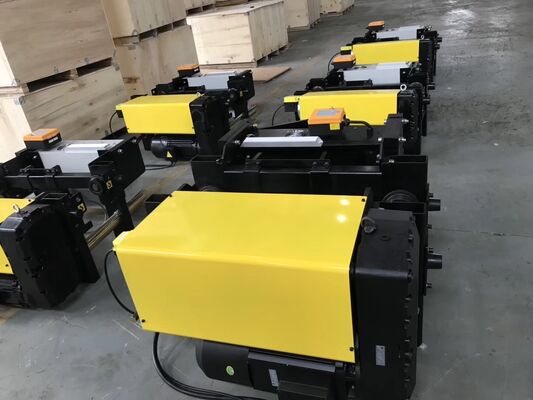

Factory shows:
