5T Double Girder Integrated Overhead Crane Hoist 440V

MOQ: 1 set
Price: $1000-$10000
Standard Packaging: Standard export plywood cases or at your request
Delivery Period: 15 to 20 working days
Payment Method: L/C,T/T,Western Union,D/A,D/P
Supply Capacity: 300 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC/OEM
Certification
CE & ISO
Model Number
CD1
Product Name:
Double Girder Integrated Electric Hoist
Type:
Double Girder
Motor:
Chinese Brand Motor
Application:
Double Girder Overhead Crane
Lifting Capacity:
2t - 80t
Lifting Height:
6m/9m/12m/15m/18m
Voltage:
380V/440V 50hz/60hz
Highlight:

Integrated Overhead Crane Hoist

,

Double Girder Overhead Crane Hoist

,

5T Overhead Crane Hoist

Product Description
5T Double Girder Integrated Electric Hoist for Overhead Crane
Brief Introduction

HC series electric hoist is heavy duty hoist, which consists of a novel large tonnage electric hoist, through a pulley group of magnification and the motor transformation, can be combined to be able to meet a variety of occasions the use of lifting equipment.

  • The speed reducer adopts a square structure, convenient installation and transportation.
  • Base type combination and transformation, greatly widens the use range of the elctric hoist.
  • Working lever range for M3-M6.
  • With the upper limit of double limit function.
  • Lifting weight limit protection fuction
  • With overload, overcurrent, pressure loss, phase interruption protection function.
Technical parameters
Model Unit HC-16 HC-20 HC-25 HC-30 HC-36 HC-56 HC-100
Capacity t 16 20 25 30 36 56 100
Lifting height m 3-48 3-30 3-30 3-30 3-30 3-30 3-30
lIfting speed m/min 3.5-6 4 4 3 3 3 2
Running speed m/min 20 20 5-20
Rope diameter mm 17.5-25 21.5 26 36
Wire diameter mm 0.7-1.1 1 1 1 1 1.2 1.8
Rope structure 6*37+1
I beam type 45a-63c 50a-63c
Questions before quotation:
  1. Capacity?
  2. Lifting height?
  3. Track gauge(m)?
  4. Power supply?

The more the better.

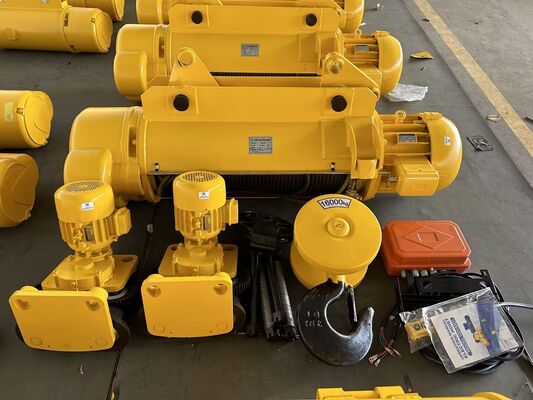

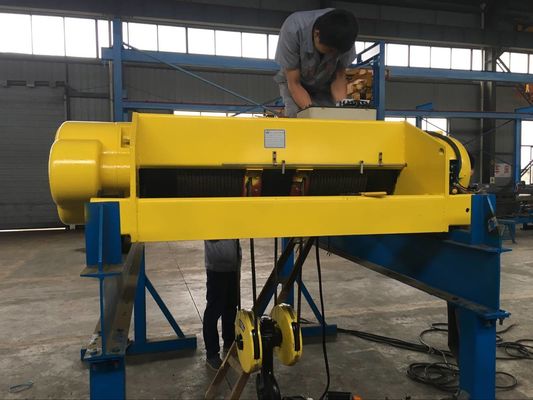

Product show

5T Double Girder Integrated Overhead Crane Hoist 440V 0

5T Double Girder Integrated Overhead Crane Hoist 440V 1
