Double Hook M3 10t Electric Wire Rope Hoist 24m Lifting

MOQ: 1 unit
Price: $1000-$20000
Standard Packaging: Plywood case
Delivery Period: 10 -15 working days
Payment Method: L/C,T/T,Western Union
Supply Capacity: 500 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC
Certification
CE&ISO
Model Number
DPH
Name:
Double Hook Electric Hoist
Capcity:
0.25t-50t
Lifting Height:
3m-24m
Hook Distance:
3-9m Or At Request
Voltage:
220v-440v,50HZ/60HZ
Control Type:
Wire Cable Control / Wireless Remote Control
Highlight:

M3 Electric Wire Rope Hoist

,

24m Lifting Wire Rope Hoist

,

10t Electric Wire Rope Hoist

Product Description

Same Lift and Fall Double Hook Electric Hoist for Steel Plate Lifting

General Description:

Double hook electric hoist is suitable for lifting extra long workpieces or items. The most notable feature of the double-rope electric hoist is that the position of the hook in the axial direction of the hoist is fixed. Therefore, this type of hoist is mainly used in places where there is no axial movement of the hoisting items, such as supporting the hoist double beam and the gate crane, power station lifting equipment etc. The hook distance can be designed according to the user's requirements.

The double hook electric hoist is consist of two CD1/MD1 electric hoists and connect them with rails. Each hoist has one motor. They are controlled by one cable button or wireless remote control so that they are lifting and falling at the same time. The hook distance can be custmoized according to customers' specific requirement, range from 3m to 24m. Before quote, customer need to confirm capacity, lifting height, hook distance and the power supply. Contact us to build your own lifting solution.

Features and advantages:

The non-standard double hook electric hoists design requirements are very high, and need manufacturers to provide customized solutions, taking into account factors such as feasibility, stability and safety. Our non-standard electric hoist design engineers carefully design each detail according to the customer's needs.

Technique parameters(reference):

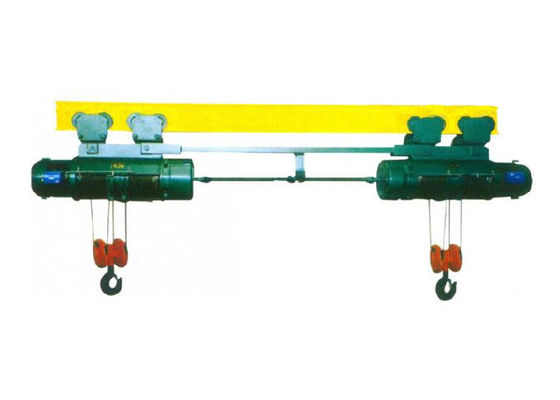

Double Hook M3 10t Electric Wire Rope Hoist 24m Lifting 0
Type DPH3+3 DPH5+5 DPH8+8
Working Class M3 M3 M3
Capacity(t) 2x3 2*5 2*8
LiftingSpeed(m/min) 8;8/0.8 8;8/0.8 7; 7/0.7
Travelling Speed(m/min) 20 20 20
Lifting Motor Type ZD51-4;
ZDS1-0.4/4.5		 ZD51-4;
ZDS1-0.8/7.5		 ZDX51-4;
ZDS1-1.5/11
Power(KW) 2*4.5;
2*4.5/0.4		 2*7.5;
2*7.5/0.8		 2*11;2*11/1.5
Rotate Speed(rpm) 1380 1380 1380
Travelling
Motor		 Type ZDY21-4 ZDY21-4 ZDY21-4
Power(KW) 2*0.8 2*0.8 4*0.8
Speed(rpm) 1380 1380 1380
Recommanded Track I25-I63 I25-I63 I25-I63
Distance between the hookL(m) 1.5~6 1.5~6 1.5~8
Lifting HeightL(m) 6 9 12 18 24 30 6 9 12 18 24 30 9 12 16 24 30

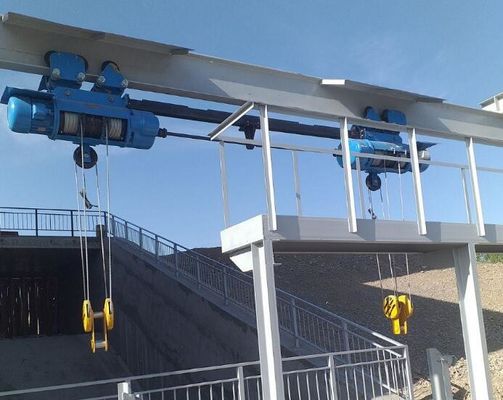

Application photos:

Double Hook M3 10t Electric Wire Rope Hoist 24m Lifting 1
Tags:

electric lifting hoist,

stainless steel wire rope hoist,

wire rope crane hoist

Recommended Products
0.5t 1t 2t 3t 5t CD1/MD1 Electric Lifting Wire Rope Hoist video

0.5t 1t 2t 3t 5t CD1/MD1 Electric Lifting Wire Rope Hoist

Contact Now
FEM Overhead Travelling Crane10ton 12ton 16tons Single Beam Bridge Crane With Electric Hoist video

FEM Overhead Travelling Crane10ton 12ton 16tons Single Beam Bridge Crane With Electric Hoist

Contact Now
380V 5t Lifting Wire Rope Crane Hoist Height 6m 30m/Min Travel video

380V 5t Lifting Wire Rope Crane Hoist Height 6m 30m/Min Travel

Contact Now
380V H Type Rail 25t Electric Cable Hoist 20m/Min Travel video

380V H Type Rail 25t Electric Cable Hoist 20m/Min Travel

Contact Now
European Model Electric Wire Rope Hoist Low Headroom Type with Optimized Design and Performance for Heavy Duty Lifting video

European Model Electric Wire Rope Hoist Low Headroom Type with Optimized Design and Performance for Heavy Duty Lifting

Contact Now
10ton MD Electric Wire Rope Hoist double speed Pure Copper Motor video

10ton MD Electric Wire Rope Hoist double speed Pure Copper Motor

Contact Now
CD 10ton Electric Wire Rope Hoist single speed Working Duty M3  video

CD 10ton Electric Wire Rope Hoist single speed Working Duty M3

Contact Now
Products
PRODUCTS DETAILS
Products

Electric Wire Rope Hoist

Electric Chain Hoist

Double Girder Hoist

Foot Mounted Hoist

Explosion Proof Chain Hoist

Electric Winch

Overhead Crane

End Carriage

Overhead Crane Kits

Jib Crane

Lifting Tools

G80 Lifting Chain
  • name
  • name
  • name
  • name
  • name
Double Hook M3 10t Electric Wire Rope Hoist 24m Lifting
MOQ: 1 unit
Price: $1000-$20000
Standard Packaging: Plywood case
Delivery Period: 10 -15 working days
Payment Method: L/C,T/T,Western Union
Supply Capacity: 500 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC
Certification
CE&ISO
Model Number
DPH
Name:
Double Hook Electric Hoist
Capcity:
0.25t-50t
Lifting Height:
3m-24m
Hook Distance:
3-9m Or At Request
Voltage:
220v-440v,50HZ/60HZ
Control Type:
Wire Cable Control / Wireless Remote Control
Minimum Order Quantity:
1 unit
Price:
$1000-$20000
Packaging Details:
Plywood case
Delivery Time:
10 -15 working days
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
500 pcs per month
Highlight

M3 Electric Wire Rope Hoist

,

24m Lifting Wire Rope Hoist

,

10t Electric Wire Rope Hoist

Product Description

Same Lift and Fall Double Hook Electric Hoist for Steel Plate Lifting

General Description:

Double hook electric hoist is suitable for lifting extra long workpieces or items. The most notable feature of the double-rope electric hoist is that the position of the hook in the axial direction of the hoist is fixed. Therefore, this type of hoist is mainly used in places where there is no axial movement of the hoisting items, such as supporting the hoist double beam and the gate crane, power station lifting equipment etc. The hook distance can be designed according to the user's requirements.

The double hook electric hoist is consist of two CD1/MD1 electric hoists and connect them with rails. Each hoist has one motor. They are controlled by one cable button or wireless remote control so that they are lifting and falling at the same time. The hook distance can be custmoized according to customers' specific requirement, range from 3m to 24m. Before quote, customer need to confirm capacity, lifting height, hook distance and the power supply. Contact us to build your own lifting solution.

Features and advantages:

The non-standard double hook electric hoists design requirements are very high, and need manufacturers to provide customized solutions, taking into account factors such as feasibility, stability and safety. Our non-standard electric hoist design engineers carefully design each detail according to the customer's needs.

Technique parameters(reference):

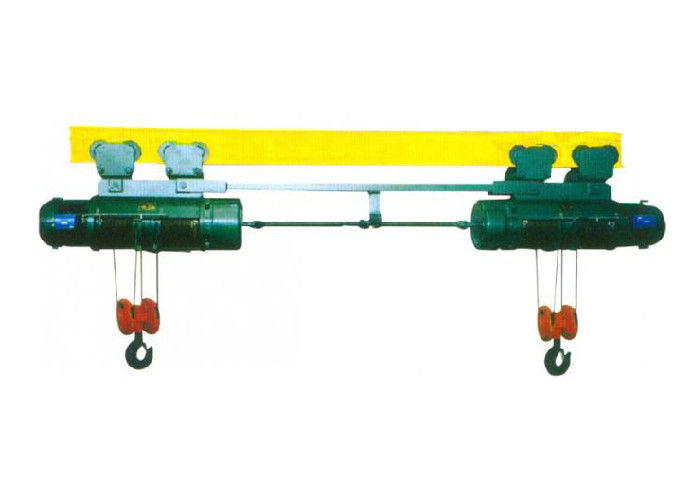

Double Hook M3 10t Electric Wire Rope Hoist 24m Lifting 0
