Product Details:
Payment & Shipping Terms:
|
| Product Name: | 5 Ton 30 Ton 50 Ton Double Girder Electric Hoist For Overhead Crane | Type: | Double Girder |
|---|---|---|---|
| Motor: | Famous Chinese Brand Motor | Application: | Double Girder Overhead Crane |
| Lifting Capacity: | 2t - 80t | Lifting Height: | 6m/9m/12m/15m/18m |
| High Light: | 50T Double Girder Hoist,Overhead Double Girder Hoist,18m Lifting Double Girder Hoist |
||
5 Ton 30 Ton 50 Ton Double Girder Electric Hoist for Overhead Crane
Brief Introduction
HC series electric hoist is heavy duty hoist, which consists of a novel large tonnage electric hoist, through a pulley group of magnification and the motor transformation, can be combined to be able to meet a variety of occasions the use of lifting equipment.
A. The speed reducer adopts a square structure, convenient installation and transportation.
B. Base type combination and transformation, greatly widens the use range of the elctric hoist.
C. Working lever range for M3-M6.
D. With the upper limit of double limit function.
E. Lifting weight limit protection fuction
F. With overload, overcurrent, pressure loss, phase interruption protection function.
Technical parameters
| Model | Unit | HC-16 | HC-20 | HC-25 | HC-30 | HC-36 | HC-56 | HC-100 |
| Capacity | t | 16 | 20 | 25 | 30 | 36 | 56 | 100 |
| Lifting height | m | 3-48 | 3-30 | 3-30 | 3-30 | 3-30 | 3-30 | 3-30 |
| lIfting speed | m/min | 3.5-6 | 4 | 4 | 3 | 3 | 3 | 2 |
| Running speed | m/min | 20 | 20 | 5-20 | ||||
| Rope diameter | mm | 17.5-25 | 21.5 | 26 | 36 | |||
| Wire diameter | mm | 0.7-1.1 | 1 | 1 | 1 | 1 | 1.2 | 1.8 |
| Rope structure | 6*37+1 | |||||||
| I beam type | 45a-63c | 50a-63c | ||||||
Questions before quotation:
1. Capacity?
2. Lifting height?
3. Track gauge(m)?
4. Power supply?
The more the better.

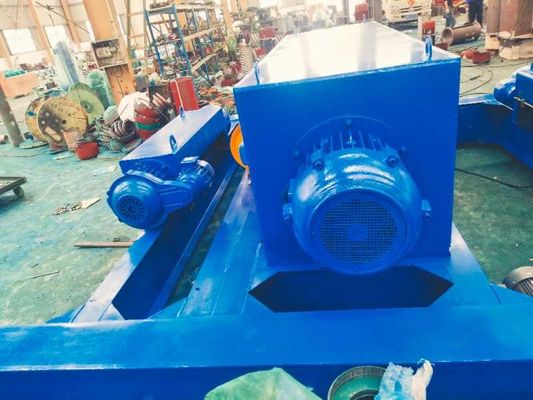

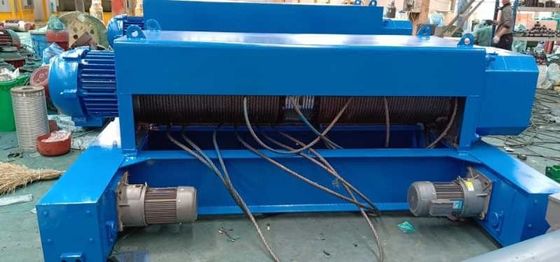

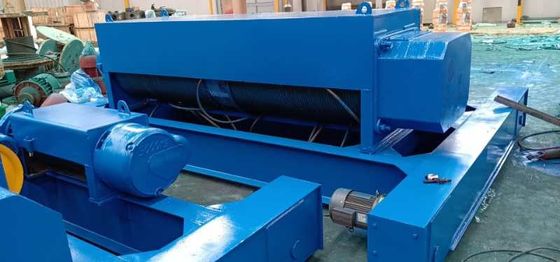

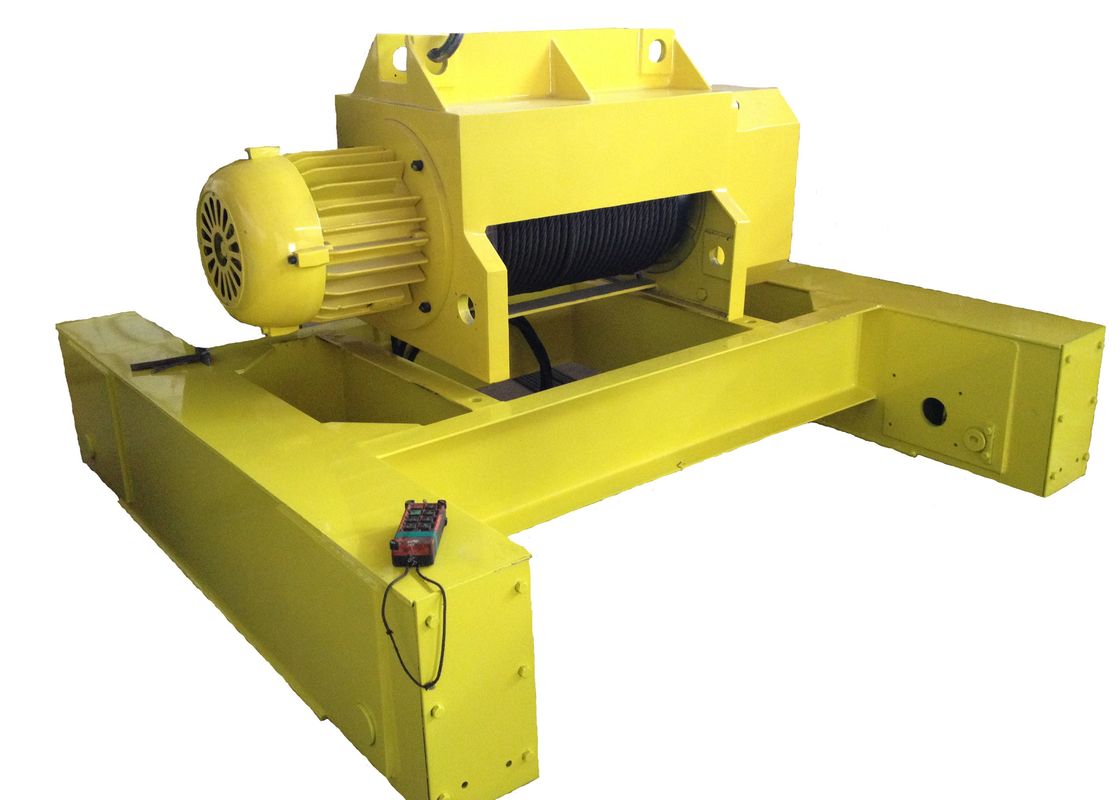

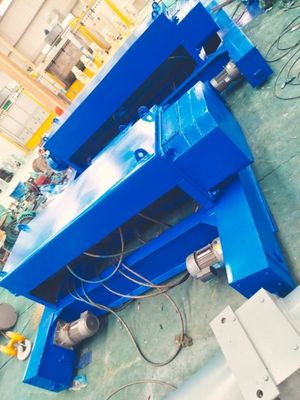

Product show
