Compact 5 Ton Electric Wire Rope Hoist with 20 m/min Travel Speed for Precision Operations

MOQ: 1 piece
Price: $300-$10000
Standard Packaging: Plywood Case
Delivery Period: 30 working day
Payment Method: D/A,D/P,L/C,T/T,Western Union,MoneyGram
Supply Capacity: 1000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC
Certification
CE ISO9001 manufacturing licence
Model Number
CD1
Name:
Electric Wire Rope Hoist
Capacity:
1t-25t
Lifting Height:
6/9/12/18/24m Or At Request
Girder:
Single Girder / Double Girder
Rail Type:
I-Type, H-Type Rail
Travel Speed:
20 M/min
HS Code:
8425110000
Voltage:
380V/440V 50hz/60hz
Highlight:

5 Ton Electric Wire Rope Hoist

,

20 m/min Travel Speed Hoist

,

Compact Wire Rope Hoist

Product Description
Single Girder Travelling Speed 20m/Min 5Ton Lifting Electric Wire Rope Cable Hoist
Product Overview
The CD1/MD1 electric wire rope hoist features a compact, lightweight design with smooth operation. Suitable for mounting on overhead rails and compatible with various crane types including single-girder, double-girder, cantilever, and gantry cranes. The MD1 model offers dual lifting speeds for precision operations where the standard CD1 model may be insufficient.
Key Features
  • Compact design suitable for mounting on single beam, bridge, gantry, and arm cranes
  • Can be modified for use as a winch
  • Widely used in factories, mines, harbors, warehouses, and storage areas
  • CD1 model offers standard lifting speed for general applications
  • MD1 model provides both standard and low speeds for precision operations
Technical Specifications
Model Lifting Capacity (t) Lifting Height (m) Lifting Speed (m/min) Running Speed (m/min) Wire Rope Type Dia. of Wire Rope (mm) I Beam Track Type Working Duty Lifting Motor Running Motor
Power(kw) R.P.M (r/min) Power Supply Power(kw) R.P.M (r/min) Power Supply
CD1-0.25 0.25 3-9 8 20 6*19 3.6 16-22b M3 0.4 1380 220-440V 50/60HZ 3Phase 0.06 1400 220-440V 50/60HZ 3Phase
CD1-0.5 0.5 6-12 8 20 6*37+1 4.8 16-28b M3 0.8 1380 0.2 1380
CD1-1 1 6-30 8 20 6*37+1 7.4 16-28b M3 1.5 1380 0.2 1380
CD1-2 2 6-30 8 20 6*37+1 11 20a-32c M3 3 1380 0.4 1380
CD1-3 3 6-30 8 20 6*37+1 13 20a-32c M3 4.5 1380 0.4 1380
CD1-5 5 6-30 8 20 6*37+1 15 25a-63c M3 7.5 1380 0.8 1380
CD1-10 10 6-30 7 20 6*37+1 15 25a-63c M3 13 1400 0.8*2 1380
CD1-16 16 6-30 3.5 20 6*37+1 15 45a-63c M2 13 1400 0.8*2 1380
CD1-20 20 6-30 3.5 20 6*37+1 20 50a-63c M2 13 1400 0.8*2 1380
Additional Notes
  • Standard lifting heights: 6, 9, 12, 18, 24, 30, and 36 meters
  • Lifting speeds available in single, double, or multi-speed with frequency inverters
  • H-type rail recommended for low-headroom hoists (I-type rail also available)
  • Recommended rope reeving: 2/1, 4/2, or 4/1
  • Standard traveling speed: 20m/min (12.5, 16, 25, 30, 45m/min available upon request)
  • Standard double-girder rail gauge: 1200, 1500, 1800, 2100, and 2300mm
Product Images

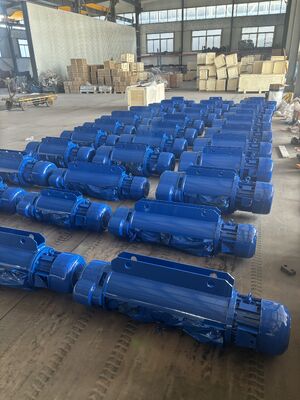

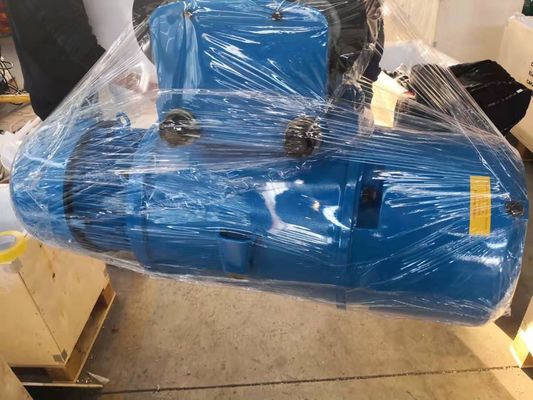

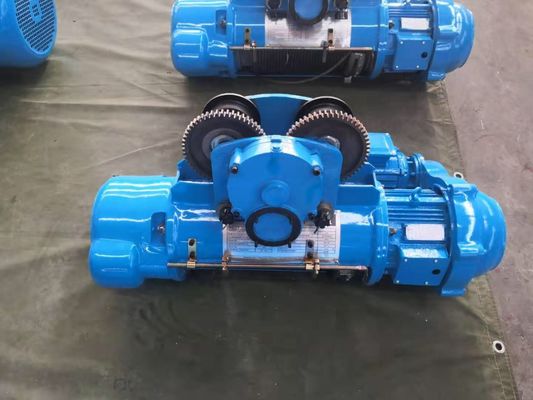

Compact 5 Ton Electric Wire Rope Hoist with 20 m/min Travel Speed for Precision Operations 0 Compact 5 Ton Electric Wire Rope Hoist with 20 m/min Travel Speed for Precision Operations 1 Compact 5 Ton Electric Wire Rope Hoist with 20 m/min Travel Speed for Precision Operations 2
